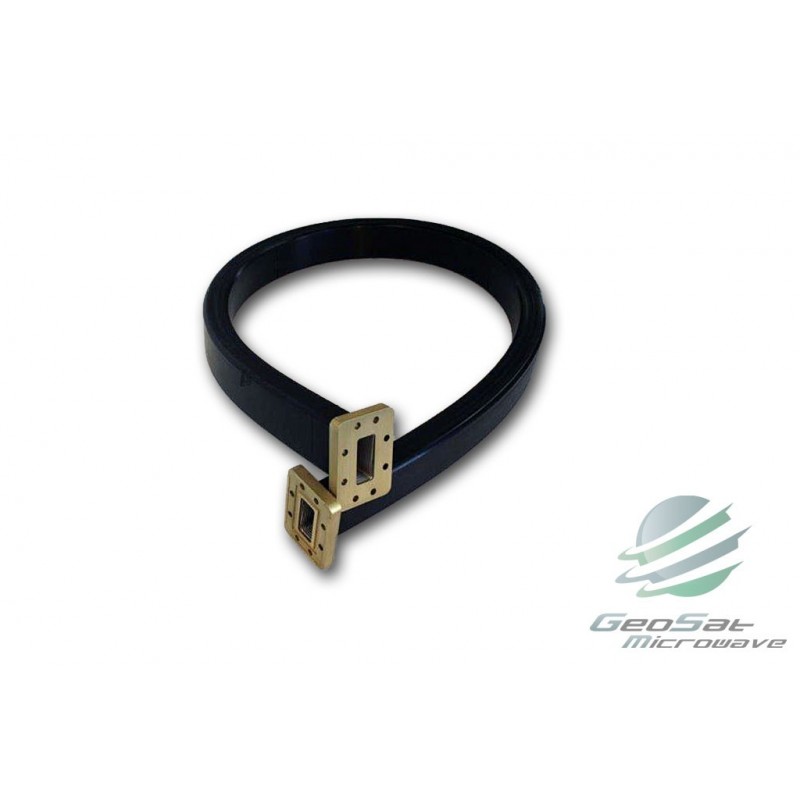

GeoSat Microwave Flexible and Twistable Waveguide View larger

GeoSat Microwave Flexible and Twistable Waveguide

Flexible

New

• Flexible & Twistable Waveguide
• Protected from Environment
• Operating Temp. Range from - 20°C to + 100°C
• Wide Choice of Custom Flanges

More details

Specifications:

Electrical Specifications▼

Waveguide Size Frequency Insertion loss VSWR Power Rating
IEC EIA Operating Maximum Maximum Maximum GF75T GF75N
70R 137WR 5.85-8.20 GHz 0.06dB/ft (0.20m) 1.07 <36in.(1 m) 1.11 >36in.(1 m) 1700W 2000W
84R 112WR 7.05-10.00 GHz 0.07dB/ft (0.23m) 1.09 <36in.(1 m) 1.12 >36in.(1 m) 1200W 1500W
100R 90WR 8.20-12.40 GHz 0.09dB/ft (0.30m) 1.09 <36in.(1 m) 1.12 >36in.(1 m) 700W 1000W
120R 75WR 10.00-15.00 GHz 0.13dB/ft (0.43m) 1.10 <36in.(1 m) 1.12 >36in.(1 m) 500W 750W
140R 62WR 12.40-18.00 GHz 0.16dB/ft (0.52m) 1.12 <36in.(1 m) 1.15 >36in.(1 m) 220W 400W
220R 42WR 18.00-26.50 GHz 0.38dB/ft (1.25m) 1.20 <36in.(1 m) 1.25 >36in.(1 m) 100W 150W

Mechanical Specifications

Waveguide Size Bending Radius Rating Minimum for
GFT or GFN
Twisting Rating
Maximum for GFT
Length
Tolerance
Internal Pressure Rating Max
IEC EIA Static Repeated Static Repeated Static Static
    E-Plane H--Plane E-Plane H--Plane +/-Deg/ft (m) +/-Deg/ft (m) +/- in/ft (%) PSIG (kPa)
R70 WR137 4.0"/102mm 8.0"/203mm 16"/406mm 32"/813mm 64 (210) 18 (52) 0.13 (1%) 30 (207)
R84 WR112 3.0"/76mm 6.0"/152mm 12"/305mm 24"/610mm 79 (259) 20 (66) 0.13 (1%) 35 (242)
R100 WR90 2.5"/64mm 5.0"/127mm 10"/254mm 20"/508mm 96 (315) 23 (75) 0.13 (1%) 45 (311)
R120 WR75 2.1"/51mm 4.2"/102mm 8.5"/216mm 17"/432mm 112 (364) 28 (92) 0.13 (1%) 45 (311)
R140 WR62 1.8"/46mm 3.6"/92mm 7.0"/178mm 14"/368mm 136 (446) 34 (112) 0.13 (1%) 45 (311)
R220 WR42 1.2"/30mm 2.3"/60mm 4.7"/120mm 11"/240mm 160 (525) 44 (144) 0.13 (1%) 45 (311)

Waveguide Flanges

Brass and aluminum waveguide flanges are manufactured in-house and maintained in inventory reducing product lead time so we can respond quickly to market demands. Both North American (EIA) and European (IEC) standard waveguide flanges are available in corrosion protected base metal or plated finishes.

Rectangular Flanges   Square Flanges
WR42 to WR112 / R70 to 220
  Round Flanges
WR137 / R70

GeoSat Microwave Flexible Waveguide Custom Flange Rectangular Flat Contact FLAT Contact
CPR      –02
UDR      –22
  GeoSat Microwave Flexible Waveguide Custom Flange Square WR42 to WR112 / R70 to 220 FLAT Contact
COVER  -03
UBR        -23
  GeoSat Microwave Flexible Waveguide Custom Flange Flat Contact WR137 / R70 FLAT Contact
COVER  -06
UAR        -26

GeoSat Microwave Flexible Waveguide Custom Flange Rectangular Grooved Contact GROOVED Contact
CPRG -01
PDR   -21
  GeoSat Microwave Flexible Waveguide Custom Flange Square Grooved WR42 to WR112 / R70 to 220 GROOVED Contact
COVER -04
PBR      -24
  GeoSat Microwave Flexible Waveguide Custom Flange Grooved Contact WR137 / R70 GROOVED Contact
COVER  -07
PAR        -27

GeoSat Microwave Flexible Waveguide Custom Flange Rectangular Miniature Contact MINIATURE Contact
CMR      -09,10,11
UER      -30
  GeoSat Microwave Flexible Waveguide Custom Flange Square WR42 to WR112 / R70 to 220 CHOKE  -05
CBR        -25
  GeoSat Microwave Flexible Waveguide Custom Flange WR137 / R70 CHOKE  -08
CAR        -28
* Number of holes for some flange styles depends on waveguide size

Waveguide Accessories
Hardware, fixing and clamping kit accessories are available for use with our flexible waveguide products.

Download the Specification in PDF Format

Flexible and Twistable Waveguide Specsheet
