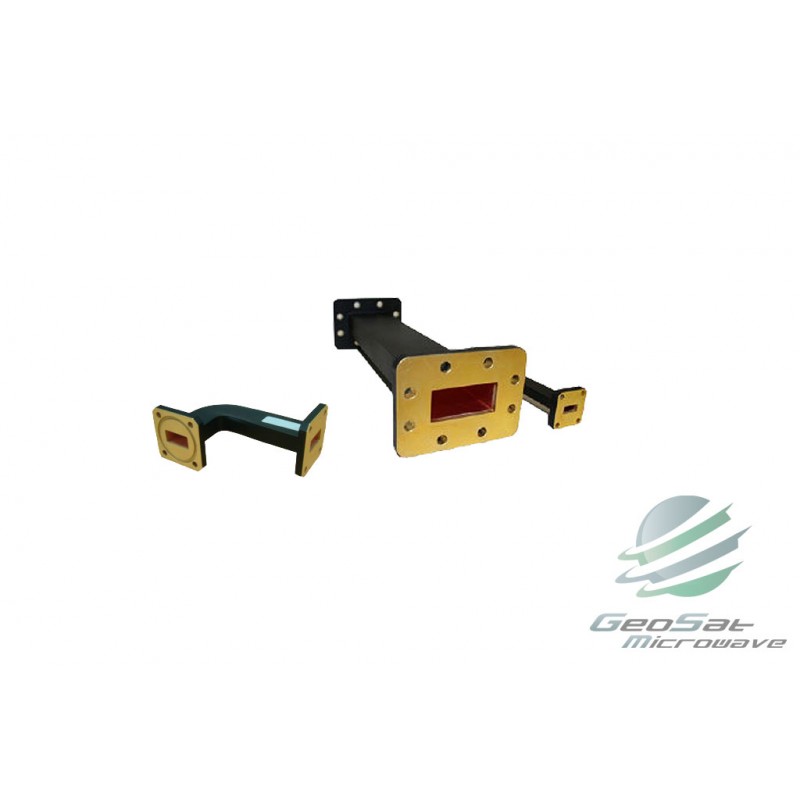

GeoSat Microwave Rigid Waveguide Extensions
New
• Compliment the Use of Flexible Waveguide
• Finished with Corrosion Protection
• Available for the EIA & IEC Standard Flanges
Specifications:
Standard rigid waveguide extensions are available for WR-42 (R220) through WR-137 (R70) waveguide sizes. Manufactured from copper waveguide with brass flanges in convenient lengths and flange type combinations, these waveguide accessories compliment the use of flexible waveguide and quick disconnects when used in both VSAT and Satcom applications.
Waveguide extensions are finished with corrosion protection and exterior surfaces are painted black.
Waveguide extensions are available for the most common North American (EIA) and European (IEC) standard flange combinations. Flange dash numbers used for rigid waveguide extensions in the tables below are the same as those used for our flexible waveguide products.
Product Electrical Specifications ▼
| Waveguide | Size | Frequency | Insertion Loss | Insertion Loss | VSWR | VSWR |
|---|---|---|---|---|---|---|
| IEC | EIA | Operating | Maximum | Maximum | Maximum | Maximum |
| R | WR | GHz | dB /Straight Section | dB /Bend Section | per Straight Section | per Bend Section |
|
70
|
137
|
5.85-8.20
|
0.01 / 0.01
|
0.01
|
1.03:1
|
1.06:1
|
|
84
|
112
|
7.05-10.00
|
0.01 / 0.01
|
0.02
|
1.04:1
|
1.07:1
|
|
100
|
90
|
8.20-12.40
|
0.01 / 0.01
|
0.02
|
1.05:1
|
1.08:1
|
|
120
|
75
|
10.00-15.00
|
0.01 / 0.01
|
0.02
|
1.05:1
|
1.08:1
|
|
140
|
62
|
12.40-18.00
|
0.01 / 0.02
|
0.03
|
1.07:1
|
1.10:1
|
|
220
|
42
|
18.00-26.50
|
0.02 / 0.04
|
0.04
|
1.11:1
|
1.15:1
|
Product Mechanical Specifications - North American Standard (EIA) ▼
| Flange Dash / Configuration | WR-137 | WR-112 | WR-90 | WR-75 | WR-62 | WR-42 |
|---|---|---|---|---|---|---|
| 01 01CPRG / CPRG |
SRF1300S-0511L
L = (3) or (6) in Straight SRF1320E-0511 4x4 in E-Bend SRF1320H-0511 4x4 in H-Bend |
|
|
|||
| 01 02CPRG / CPRF |
SRF1300S-0512L
L = (3) or (6) in Straight SRF1320E-0512 4x4 in E-Bend SRF1320H-0512 4x4 in H-Bend |
|
|
|||
| 02 02CPRF / CPRF |
SRF1300S-0522L
L = (3) or (6) in Straight SRF1320E-0522 4x4 in E-Bend SRF1320H-0522 4x4 in H-Bend |
|
||||
| 03 03Cover Flat / Cover Flat |
SRF1300S-0633L
L = (3) or (6) in Straight
SRF1320E-0633 4x4 in E-Bend SRF1320H-0633 4x4 in H-Bend |
SRF1300S-0733L
L = (2) or (4) in Straight
SRF1320E-0733 3x3 in E-Bend SRF1320H-0733 3x3 in H-Bend |
SRF1300S-0833L
L = (2) or (4) in Straight
SRF1320E-0833 3x3 in E-Bend SRF1320H-0833 3x3 in H-Bend |
SRF1300S-0933L
L = (2) or (4) in Straight
SRF1320E-0933 3x3 in E-Bend SRF1320H-0933 3x3 in H-Bend |
SRF1300S-1133L
L = (2) or (4) in Straight
SRF1320E-1133 2x2 in E-Bend SRF1320H-1133 2x2 in H-Bend |
|
| 04 03Cover Grooved/ Cover Flat |
|
SRF1300S-0643L
L = (3) or (6) in Straight
SRF1320E-0643 4x4 in E-Bend SRF1320H-0643 4x4 in H-Bend |
SRF1300S-0743L
L = (2) or (4) in Straight
SRF1320E-0743 3x3 in E-Bend SRF1320H-0743 3x3 in H-Bend |
SRF1300S-0843L
L = (2) or (4) in Straight
SRF1320E-0843 3x3 in E-Bend SRF1320H-0843 3x3 in H-Bend |
SRF1300S-0943L
L = (2) or (4) in Straight
SRF1320E-0943 3x3 in E-Bend SRF1320H-0943 3x3 in H-Bend |
SRF120-1143L
L = (2) or (4) in Straight
SRF1320E-1143 2x2 in E-Bend SRF1320H-1143 2x2 in H-Bend |
| 05 03Choke / Cover Flat |
|
SRF1300S-0653L
L = (3) or (6) in Straight
SRF1320E-0653 4x4 in E-Bend SRF1320H-0653 4x4 in H-Bend |
SRF1300S-0753L
L = (2) or (4) in Straight
SRF1320E-0753 3x3 in E-Bend SRF1320H-0753 3x3 in H-Bend |
SRF1300S-0853L
L = (2) or (4) in Straight
SRF1320E-0853 3x3 in E-Bend SRF1320H-0853 3x3 in H-Bend |
SRF1300S-0953L
L = (2) or (4) in Straight
SRF1320E-0953 3x3 in E-Bend SRF1320H-0953 3x3 in H-Bend |
SRF1300S-1153L
L = (2) or (4) in Straight
SRF1320E-1153 2x2 in E-Bend SRF1320H-1153 2x2 in H-Bend |
Product Mechanical Specifications - European Standard (IEC) ▼
| Flange Dash / Configuration |
R70
|
R84
|
R100
|
R120
|
R140
|
R220
|
|---|---|---|---|---|---|---|
|
21 22
PDR / UDR
|
SRF1305S-0512L
L=(75) or (150) mm Straight
SRF1325E-0512 100x100 mm E-Bend SRF1325H-0512 100x100 mm H-Bend |
|
|
|
|
|
|
22 22
UDR / UDR
|
SRF1305S-0522L
L=(75) or (150) mm
Straight
SRF1325E-0522 100x100 mm E-Bend SRF1325H-0522 100x100 mm H-Bend |
|
|
|
|
|
|
23 23
UBR / UBR
|
|
SRF1305S-0633L
L=(75) or (150) mm
Straight
SRF1325E-0633
100x100 mm E-Bend SRF1325H-0633 100x100 mm H-Bend |
SRF1305S-0733L
L=(50) or (100) mm
Straight
SRF1325E-0733 75x75 mm E-Bend SRF1325H-0733 75x75 mm H-Bend |
SRF1305S-0833L
L=(50) or (100) mm
Straight
SRF1325E-0833 75x75 mm E-Bend SRF1325H-0833 75x75 mm H-Bend |
SRF1305S-0933L
L=(50) or (100) mm
Straight
SRF1325E-0933 75x75 mm E-Bend SRF1325H-0933 75x75 mm H-Bend |
SRF1305S-1133L
L=(50) or (100) mm
Straight
SRF1325E-1133 50x50 mm E-Bend SRF1325H-1133 50x50 mm H-Bend |
|
24 23
PBR / UBR
|
|
SRF1305S-0643L
L=(75) or (150) mm
Straight
SRF1325E-0643 100x100 mm E-Bend SRF1325H-0643 100x100 mm H-Bend |
SRF1305S-0743L
L=(50) or (100) mm
Straight
SRF1325E-0743 75x75 mm E-Bend SRF1325H-0743 75x75 mm H-Bend |
SRF1305S-0843L
L=(50) or (100) mm
Straight
SRF1325E-0843 75x75 mm E-Bend SRF1325H-0843 75x75 mm H-Bend |
SRF1305S-0943L
L=(50) or (100) mm
Straight
SRF1325E-0943 75x75 mm E-Bend SRF1325H-0943 75x75 mm H-Bend |
SRF1305S-1143L
L=(50) or (100) mm
Straight
SRF1325E-1143 50x50 mm E-Bend SRF1325H-1143 50x50 mm H-Bend |
