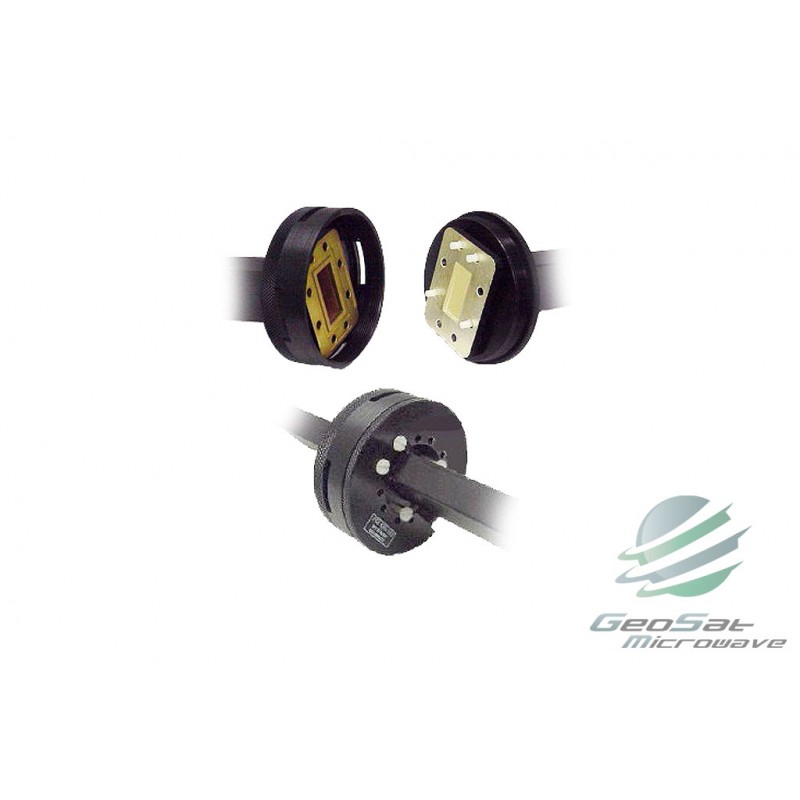

GeoSat Microwave Quick Disconnect Flange Clamps
New
• Fast waveguide connection and easy installation
• Connects waveguide by several turns of a threaded clamp
• Excellent choice for mobile and transportable applications
• Available for the EIA & IEC Standard Flanges
Specifications:
Quick Disconnect clamp kits are available for WR-42 (R220) through WR-137 (R70) waveguide sizes and flange types. Kits include nylon alignment screws, mating clamps, a retaining ring, and depending on the flange type, either rectangular or O-ring silicone gaskets.
Flange hardware kits are available for the most common North American (EIA) and European (IEC) standard flanges. Flange dash numbers used for quick disconnect kits in the tables below are the same as those used for our flexible waveguide products.
Product Mechanical Specifications - North American Standard (EIA) ▼
| Flange Dash / JunctionType |
WR-137
|
WR-112
|
WR-90
|
WR-75
|
WR-62
|
WR-42
|
|---|---|---|---|---|---|---|
|
01
CPRG to CPRG
|
SRF130-0501F
(4) Nylon Screws #10
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) CPR Full Gasket
|
SRF130-0601F
(4) Nylon Screws #8 (1) Female Clamp (1) Male Clamp (1) Retaining Ring (1) CPR Full Gasket |
|
|
|
|
|
01
CPRG to CPRF
|
SRF130-0501H
(4) Nylon Screws #10
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) CPR Half Gasket
|
SRF130-0601H
(4) Nylon Screws #8 (1) Female Clamp (1) Male Clamp (1) Retaining Ring (1) CPR Half Gasket |
|
|
|
|
|
02
CPRF to CPRF
|
SRF130-0502
(4) Nylon Screws #10
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
|
SRF130-0602
(4) Nylon Screws #8 (1) Female Clamp (1) Male Clamp (1) Retaining Ring |
|
|
|
|
|
03
Cover Flat to Flat
|
|
SRF130-0603
(4) Nylon Screws #8
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
|
SRF130-0703
(4) Nylon Screws #8
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
|
SRF130-0803
(4) Nylon Screws #6
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
|
SRF130-0903
(4) Screws #6
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
|
SRF130-1103
(4) Screws #4
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
|
|
04
Cover Grooved
to Flat
|
|
SRF130-0604
(4) Nylon Screws #8
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
SRF130-0704
(4) Nylon Screws #8
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
SRF130-0804
(4) Nylon Screws #6
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
SRF130-0904
(4) Screws #6
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
SRF130-1104
(4) Screws #4
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
|
05
Choke to Cover Flat
|
|
SRF130-0605
(4) Nylon Screws #8
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
SRF130-0705
(4) Nylon Screws #8
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
SRF130-0805
(4) Nylon Screws #6
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
SRF130-0905
(4) Screws #6
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
SRF130-1105
(4) Screws #4
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
Product Mechanical Specifications - European Standard (IEC) ▼
| Flange Dash / Junction Type |
R70
|
R84
|
R100
|
R120
|
R140
|
R220
|
|---|---|---|---|---|---|---|
|
21
PDR to UDR
|
SRF135-0521
(4) Nylon Screws M5
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) SDR Gasket
|
SRF135-0621
(4) Nylon Screws M4 (1) Female Clamp (1) Male Clamp (1) Retaining Ring (1) SDR Gasket |
|
|
|
|
|
22
UDR to UDR
|
SRF135-0522
(4) Nylon Screws M5
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
|
SRF135-0622
(4) Nylon Screws M4 (1) Female Clamp (1) Male Clamp (1) Retaining Ring |
|
|
|
|
|
23
UBR to UBR
|
|
SRF135-0623
(4) Nylon Screws M4
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
|
SRF135-0723
(4) Nylon Screws M4
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
|
SRF135-0823
(4) Nylon Screws M4
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
|
SRF135-0923
(4) Nylon Screws M4
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
|
SRF135-1123
(4) Nylon Screws M3
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
|
|
24
PBR to UBR
|
|
SRF135-0624
(4) Nylon Screws M4
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
SRF135-0724
(4) Nylon Screws M4
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
SRF135-0824
(4) Nylon Screws M4
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
SRF135-0924
(4) Nylon Screws M4
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
SRF135-1124
(4) Nylon Screws M3
(1) Female Clamp
(1) Male Clamp
(1) Retaining Ring
(1) O-Ring Gasket
|
