GeoSat Microwave Waveguide Hardware Kits View larger

GeoSat Microwave Waveguide Hardware Kits

New

Specifications:

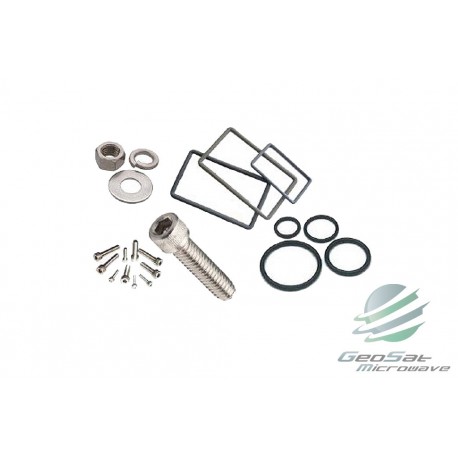

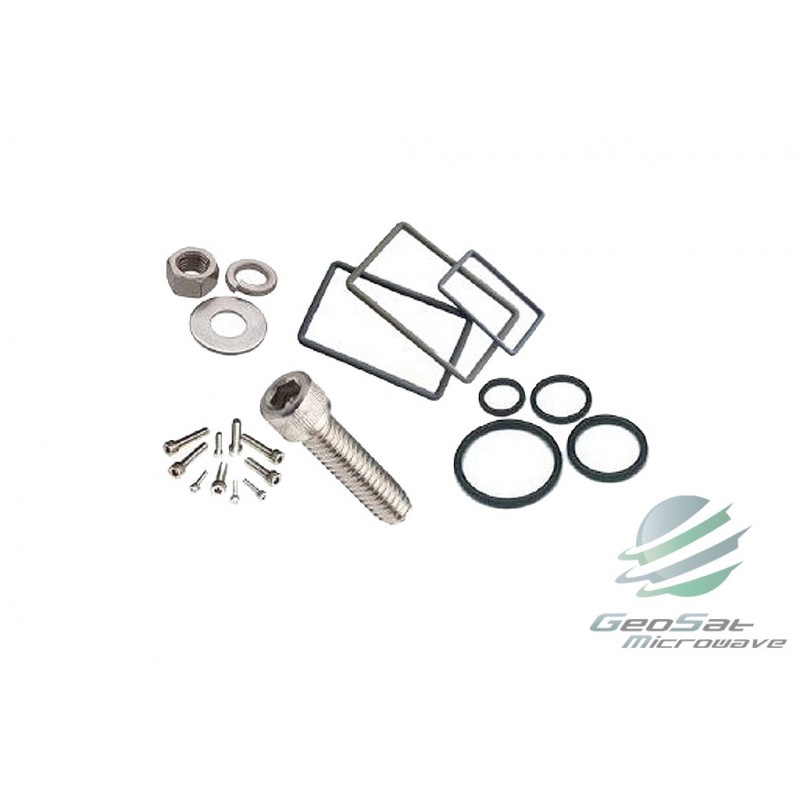

Hardware kits are available for WR-42 (R220) through WR-137 (R70) waveguide flange sizes. Kits include stainless steel screws, flat and lock washers, and depending on the flange type, either rectangular or O-ring silicone gaskets.

Flange Dash numbers are defined in the flexible waveguide product datasheet. Lookup the flange dash number or type of flange junction desired, then lookup the waveguide size. The intersecting point in the table will provide the kit part number and contents.

Flange hardware kits are available for the most common North American (EIA) and European (IEC) standard flanges.



Product Mechanical Specifications - North American Standard (EIA)

Flange Dash / JunctionType
WR-137
WR-112
WR-90
WR-75
WR-62
WR-42
01
CPRG to CPRG
SRF120-0501F
(8) Screws #10-32
(8) Hex Nuts #10-32
(8) Flat Washers #10
(8) Lock Washers #10
(1) CPR Full Gasket
SRF120-0601F
(8) Screws #8-32
(8) Hex Nuts #8-32
(8) Flat Washers #8
(8) Lock Washers #8
(1) CPR Full Gasket




01
CPRG to CPRF
SRF120-0501H
(8) Screws #10-32
(8) Hex Nuts #10-32
(8) Flat Washers #10
(8) Lock Washers #10
(1) CPR Half Gasket
SRF120-0601H
(8) Screws #8-32
(8) Hex Nuts #8-32
(8) Flat Washers #8
(8) Lock Washers #8
(1) CPR Half Gasket




02
CPRF to CPRF
SRF120-0502
(8) Screws #10-32
(8) Hex Nuts #10-32
(8) Flat Washers #10
(8) Lock Washers #10
SRF120-0602
(8) Screws #8-32
(8) Hex Nuts #8-32
(8) Flat Washers #8
(8) Lock Washers #8




03 or 06
Cover Flat to Flat

SRF120-0506
(6) Screws #10-32
(6) Hex Nuts #10-32
(6) Flat Washers #10
(6) Lock Washers #10
SRF120-0603
(4) Screws #8-32
(4) Hex Nuts #8-32
(4) Flat Washers #8
(4) Lock Washers #8
SRF120-0703
(4) Screws #8-32
(4) Hex Nuts #8-32
(4) Flat Washers #8
(4) Lock Washers #8
SRF120-0803
(4) Screws #6-32
(4) Hex Nuts #6-32
(4) Flat Washers #6
(4) Lock Washers #6
SRF120-0903
(4) Screws #6-32
(4) Hex Nuts #6-32
(4) Flat Washers #6
(4) Lock Washers #6
SRFC120-1103
(4) Screws #4-40
(4) Hex Nuts #4-40
(4) Flat Washers #4
(4) Lock Washers #4
04 or 07
Cover Grooved
to Flat
SRF120-0507
(6) Screws #10-32
(6) Hex Nuts #10-32
(6) Flat Washers #10
(6) Lock Washers #10
(1) O-Ring Gasket
SRF120-0604
(4) Screws #8-32
(4) Hex Nuts #8-32
(4) Flat Washers #8
(4) Lock Washers #8
(1) O-Ring Gasket
SRF120-0704
(4) Screws #8-32
(4) Hex Nuts #8-32
(4) Flat Washers #8
(4) Lock Washers #8
(1) O-Ring Gasket
SRF120-0804
(4) Screws #6-32
(4) Hex Nuts #6-32
(4) Flat Washers #6
(4) Lock Washers #6
(1) O-Ring Gasket
SRF120-0904
(4) Screws #6-32
(4) Hex Nuts #6-32
(4) Flat Washers #6
(4) Lock Washers #6
(1) O-Ring Gasket
SRF120-1104
(4) Screws #4-40
(4) Hex Nuts #4-40
(4) Flat Washers #4
(4) Lock Washers #4
(1) O-Ring Gasket
05 or 08
Choke to Cover Flat
SRF120-0508
(6) Screws #10-32
(6) Lock Washers #10
(1) O-Ring Gasket
SRF120-0605
(4) Screws #8-32
(4) Lock Washers #8
(1) O-Ring Gasket
SRF120-0705
(4) Screws #8-32
(4) Lock Washers #8
(1) O-Ring Gasket
SRF120-0805
(4) Screws #6-32
(4) Lock Washers #6
(1) O-Ring Gasket
SRF120-0905
(4) Screws #6-32
(4) Lock Washers #6
(1) O-Ring Gasket
SRF120-1105
(4) Screws #4-40
(4) Lock Washers #4
(1) O-Ring Gasket
09
CMR Standard
SRF120-0509
(8) Screws #6-32
(8) Lock Washers #6
SRF120-0609
(8) Screws #6-32
(8) Lock Washers #6




10
CMR Clear Holes
SRF120-0510
(8) Screws #6-32
(8) Hex Nuts #6-32
(8) Flat Washers #6
(8) Lock Washers #6
SRF120-0610
(8) Screws #6-32
(8) Hex Nuts #6-32
(8) Flat Washers #6
(8) Lock Washers #6




11
CMR Tapped Holes
SRF120-0511
(8) Screws #6-32
(8) Lock Washers #6
SRF120-0611
(8) Screws #6-32
(8) Lock Washers #6









Product Mechanical Specifications - European Standard (IEC)

Flange Dash / Junction Type
R70
 R84
R100
R120
R140
R220
21
PDR to UDR
SRF125-0521
(8) Screws M5
(8) Hex Nuts M5
(8) Flat Washers M5
(8) Lock Washers M5
(1) SDR Gasket
SRF125-0621
(8) Screws M4
(8) Hex Nuts M4
(8) Flat Washers M4
(8) Lock Washers M4
(1) SDR Gasket




22
UDR to UDR
SRF125-0522
(8) Screws M5
(8) Hex Nuts M5
(8) Flat Washers M5
(8) Lock Washers M5
SRF125-0622
(8) Screws M4
(8) Hex Nuts M4
(8) Flat Washers M4
(8) Lock Washers M4




23
UBR to UBR


SRF125-0623
(4) Screws M4
(4) Hex Nuts M4
(4) Flat Washers M4
(4) Lock Washers M4
SRF125-0723
(4) Screws M4
(4) Hex Nuts M4
(4) Flat Washers M4
(4) Lock Washers M4
SRF125-0823
(4) Screws M4
(4) Hex Nuts M4
(4) Flat Washers M4
(4) Lock Washers M4
SRF125-0923
(4) Screws M4
(4) Hex Nuts M4
(4) Flat Washers M4
(4) Lock Washers M4
SRF125-1123
(4) Screws M3
(4) Hex Nuts M3
(4) Flat Washers M3
(4) Lock Washers M3
24
PBR to UBR

SRF125-0624
(4) Screws M4
(4) Hex Nuts M4
(4) Flat Washers M4
(4) Lock Washers M4
(1) O-Ring Gasket
SRF125-0724
(4) Screws M4
(4) Hex Nuts M4
(4) Flat Washers M4
(4) Lock Washers M4
(1) O-Ring Gasket
SRF125-0824
(4) Screws M4
(4) Hex Nuts M4
(4) Flat Washers M4
(4) Lock Washers M4
(1) O-Ring Gasket
SRF125-0924
(4) Screws M4
(4) Hex Nuts M4
(4) Flat Washers M4
(4) Lock Washers M4
(1) O-Ring Gasket
SRF125-1124
(4) Screws M3
(4) Hex Nuts M3
(4) Flat Washers M3
(4) Lock Washers M3
(1) O-Ring Gasket
