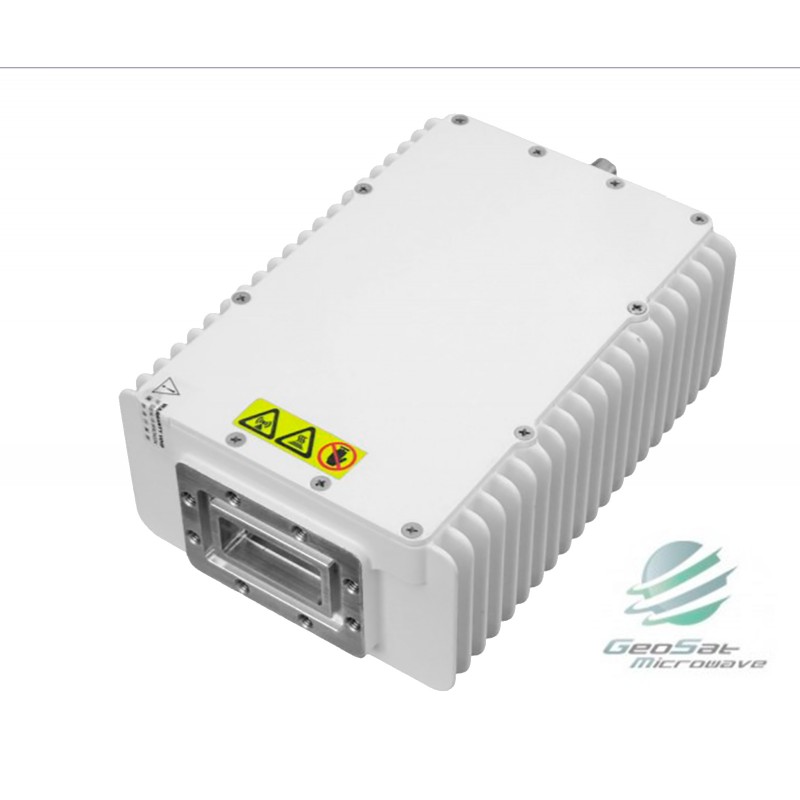

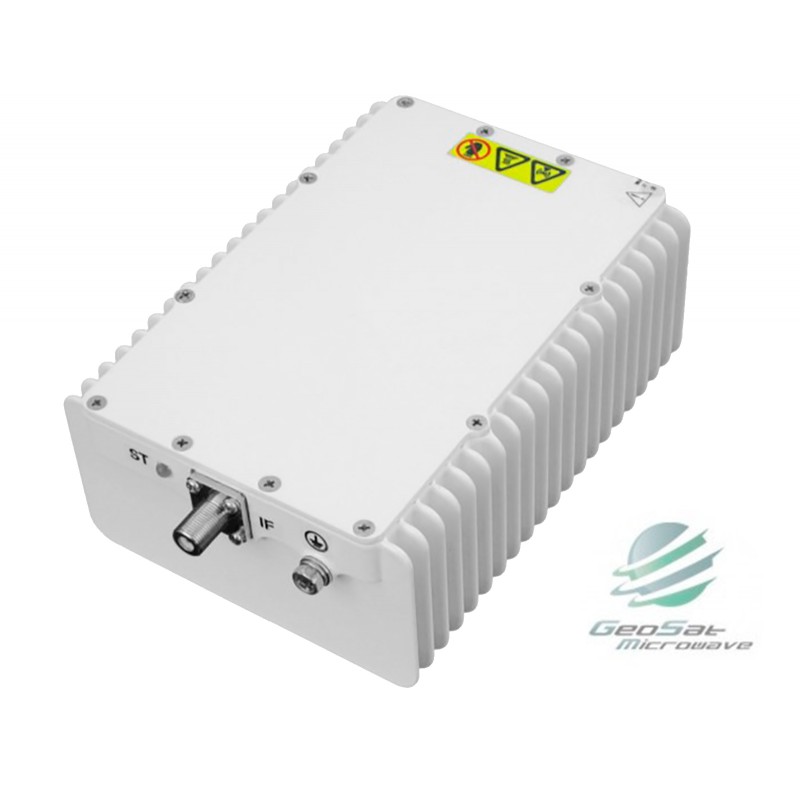

GeoSat 8W C-Band (5.85 ~ 6.425GHz) BUC Block Up-Converter
GB8C1N
New
- Frequency range - 5.850-6.425 GHz
- Gain Stabilit - 4 dB p-p
- RF Output Connector - WR137 (Grooved)
- Power supply - +18 to +36 VDC, via IFL cable
Specifications:
| Section | Item | Specification | |
| RF Specifications | RF Frequency | 5.850-6.425 GHz | |
| IF Frequency | 950-1525 MHz | ||
| External Reference | 10 MHz, 0±5 dBm | ||
| Saturated Output Power | ≥39 dBm | ||
| Rated Output Power | 39 dBm | ||
| ACPR@2dB back-off from Rated Power | ≤ -26 dBc | ||
| Small Signal Gain | 60 dB | ||
| Gain Variation | 1 dB p-p/ 36 MHz 4 dB p-p/ 575 MHz 5 dB p-p/ 875 MHz |
||
| Gain Stability | 4 dB p-p | ||
| Receive Band Noise Density | -87 dBm/ 4 KHz max. @3.4-4.8 GHz |
||
| Phase Noise | -65 dBc/Hz @100 Hz -75 dBc/Hz @1 KHz -85 dBc/Hz @10 KHz -95 dBc/Hz @100 KHz |
||
| Output Spurious | ≤ -55 dBc | ||
| Power Supply | Power Supply | +18 to +36 VDC, via IFL cable | |
| Power Supply Draw @Rated Output Power |
55 W | ||
| Interface | RF Output Connector | WR137 (Grooved) | |
| RF Output VSWR | 2:1 | ||
| IF Input Connector | F-Type Female | ||
| IF Input VSWR | 2:1 | ||
| Physical Parametrs | Size | 164*112*64 mm | |
| Weight | 1.2 Kg | ||
| Operating Temperature | -40 to +60 ℃ | ||
| Humidity | 0-100% (Condensing) | ||
| Altitude | 0-10000 F ASL | ||
| - | |||
| Download the Specification in PDF Format | ||
 |
8W C-Band Block Up-Converter (BUC) GB8C1N Specsheet |
|
