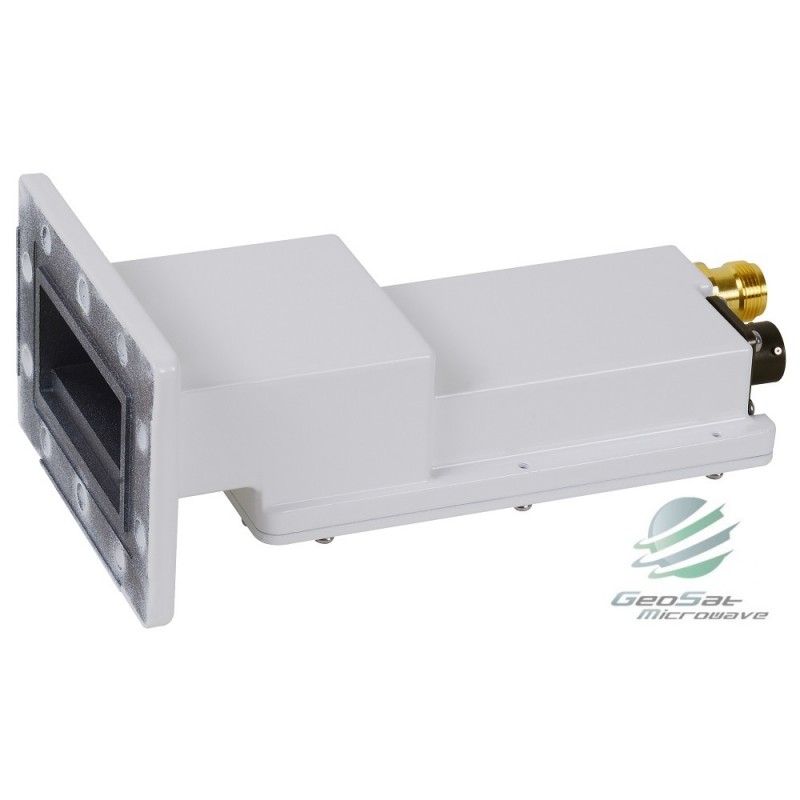

Geosat Low Noise Amplifiers C-Band 300 series (LNA) View larger

Geosat Low Noise Amplifiers C-Band (3.4 – 4.2 GHz) (LNA)

GLAC3442

New

  • Input Freq. - 3.4 – 4.2 GHz
  • Input waveguide flange - MS3112E10-6P (option)
  • Power Supply - +12 to +24V DC

More details

Specifications:

Parameter Specification
Frequency range 3.4 – 4.2
Noise temperature 30‘K max.
Conversion gain at -40 to +60 55 dB typ. (50dB min, 60dB max.).
Gain flatness 4 dBp-p max.
Gain flatness at -40 to +60 4 dBp-p max.
Gain ripple at per 36MHz, -30 to +60 1 dBp-p max.
Output P1dB +5 dBm min.
Input VSWR 2.2: 1 max
Output VSWR 2.2: 1 max
Input waveguide flange WR-229
Output connector N, SMA-type female (option)
Power connector MS3112E10-6P (option)
Power supply +12 to +24V DC
Required current 250 mA max
Operating temperature -40 to +60℃
Waterproof IP 67
Dimension (exclude connector) 98.8 x 70.0 x 164.5 mm
Weight 630 g


Download the Specification in PDF Format

Low Noise Amplifiers C-Band (LNA) GLAC3442 Specsheet
