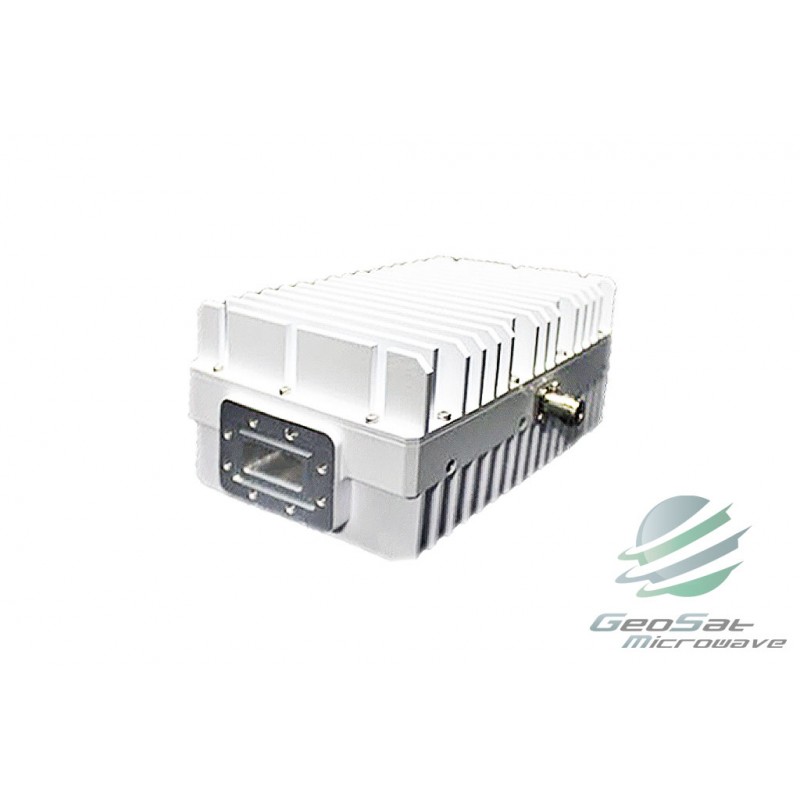

GeoSat Microwave 10W C-Band Extended (5.85 ~ 6.725GHz) Block Up-Converter (BUC)
GB40NEF01
New
• High Linearity / High Efficiency
• Light Weight & Small Size
• Low Power Consumption 64W Typ.
• Int & Ext Reference Detection & Auto Selection
• LED Status Intication
• 3 Year GeoSat Product Warranty
Specifications:
| Section | Item | Specification | |
| Power Requirement | Voltage | 24VDC or 48 VDC (Optional) | |
| Power Consumption | 64W typ. | ||
| Input Characteristics | Frequency Range | 950 ~ 1825 MHz (Extended) | |
| LO Frequency | 4.9 GHz | ||
| Return Loss (VSWR) | 1.5 : 1 max. @ Input port | ||
| IF Connector | Type N (female) or Type F (female), Optional | ||
| Output Characteristics | Frequency Range | 5.85 ~ 6.725 GHz (Extended) | |
| Power @ 1dB Comp. | 40.0 dBm typ. (10W) | ||
| RF Connector | WG-137 (with Groove) | ||
| Transfer Characteristics | Gain nom. | 65 dB typ. | |
| Gain Flatness | ± 2.0 dB max. @ room temp over full band | ||
| Gain Variation | ±2.0dB over temp. | ||
| Spectral Regrowth | -30 dBc typ. | ||
| External Reference Frequency | External 10MHz @ IF Cable / Power Level : -5 dBm min | ||
| Internal Ref. Stability | 0.28 ppm | ||
| Phase Noise ▼ | |||
| 100Hz | < -70dBc / Hz | ||
| 1kHz | < -80dBc / Hz | ||
| 10kHz | < -82dBc / Hz | ||
| 100kHz | < -105dBc / Hz | ||
| Spurious | -60 dBc | ||
| LED Status | Green - The PLL lock status / Off - Loss of lock | ||
| IMD (with 2 carries @6db back off) | -30 dBc | ||
| Mechanical | Dimension (mm) | 192(L) X 131(W) X 97(H) mm, exclude connector | |
| Weight | 2.9kg | ||
| Temperature | Operating: -40°C to +60°C | Storage: -45°C to +85°C | |
| - | |||
| Download the Specification in PDF Format | ||
 |
10W C-Band Block Up-Converter (BUC) GB40NEF01 Specsheet |
|
