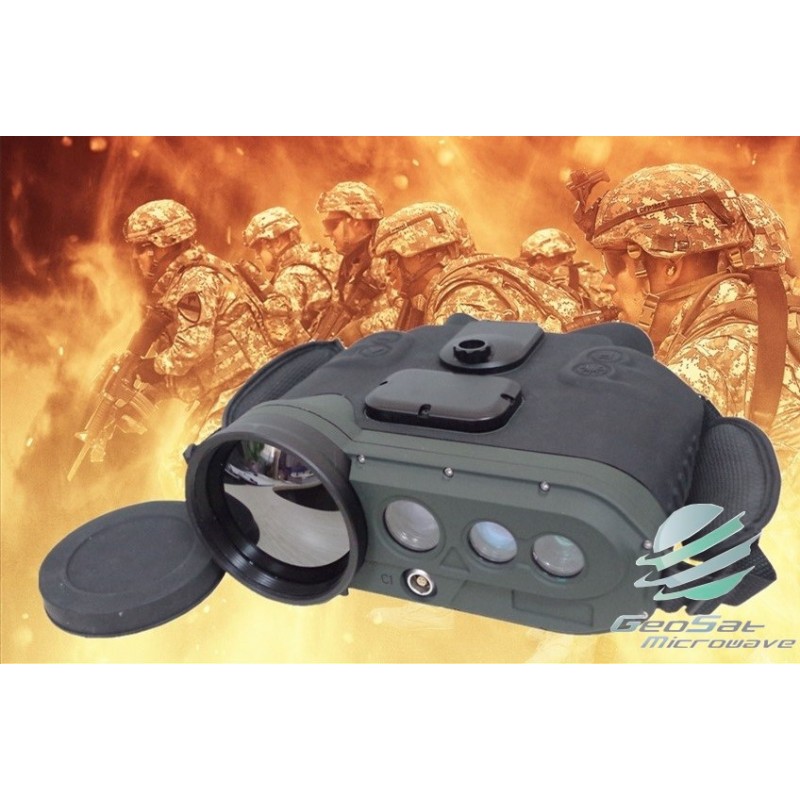

GeoSat Microwave Handheld Multi-Functional Reconnaissance Device

Thermal Device

Detection

Vehicle: 8600m; Human: 3400m

Identification

Vehicle: 2400m; Human: 1000m

Sensor

5th generation FPA VOx Detector

Resolution

640 x 512

Spectral range

7.5～14μm

NETD

50mK (@25℃ F1.0)

Focal length

100mm, electrical zooming

Field of view

6.2° × 5°

Image Processing

1. Image enhancement: SDE digital image processing enhancement technique, increase image details.

2. Image polarity: Hot-black/hot-white dual polarity.

3. Image parameter: AGC automatic gain control, brightness and contrast.

4. Digital zoom: 2X, 4X.

5. NUC Correction: Auto/Manual correction.

6. Scene mode: support multi-configuration scene, adapt to different enviroment application.

7. Hot-point alert: High-temp target indicator warning.

Low-Light-Level Imaging

1. Sensor: Ultra-low CMOS illumination

2. Illumination: 0.002Lux

3. Lens focusing: 40mm

4. Features: 3D noise reduction, auto electronic shutter, wider dynamic..

Laser Rangefinder

1. Measuring range: 50 - 3000m; 5000m@larger target (visibility >20km, reflectivity >23%)

2. Accuracy: ±1m;

3. Frequency: 15ppm;

4. Laser wavelength: 1.55um (eyes safe);

5. Ranging efficiency: ≥98%

GPS/Electronic Compass

1. GPS: Positioning accuracy CEP≤5m

2. 3D Compass: positioning accuracy ≤±0.5°

Display

1. Panel: OLED screen, binocular;

2. Pixels: 800 x 600

3. Concealment: with blindfold, highly concealment;

4. Screen dormancy: proximity sensing, auto screen switching.

5. WIFI real-time transmission, browsing, video recording and photo taking by mobile APP

Storage

1. Video format: 704×576@50hz，MP4

2. Storage medium: build-in 32G storage;

3. Capacity: photo taking and video recording, 12 hours MP4 format video

4. Video export: USB2.0

Power Supply

1.    Build-in battery: rechargeable lithium batteries 18650×2，7.4V 3000 mAh
2.    Continuous working hours: >5 hours
3.    External power supply: DC8V - 12V

Housing

1. Material: Integral aluminum alloy casing, stainless steel parts;

2. Structure: ergonomic design, double-hand 4 key buttons;

Interface

1. Video interface: 1-channnel of PAL video output, i-channel of USB2.0 data export;

2. Power supply interface: DC8V - 12V, largest current 4A;

3. Interface：aviation waterproof connector.

Power Consumption

1. Total consumption: <15W

2. Total weight: 2.8kg (battery included)

3. Dimension: 255 x 230 x 103mm

Environmental Index

1. Working temperature: -40℃～+55℃;

2. Storage Temperature: -45℃～+60℃;

3. Humidity: <90%RH;

4. Protection Level: IP67

Accessories

1. Packing case: hand-carry moisture-proof casing;
2. Cable: power cable, video output and USB cables;
3. Lithium Batteries: 4 pieces;
4. Charger: current charger;
5. Tripod (optional).

GeoSat Microwave Handheld Multi-Functional Reconnaissance Device  Specsheet
