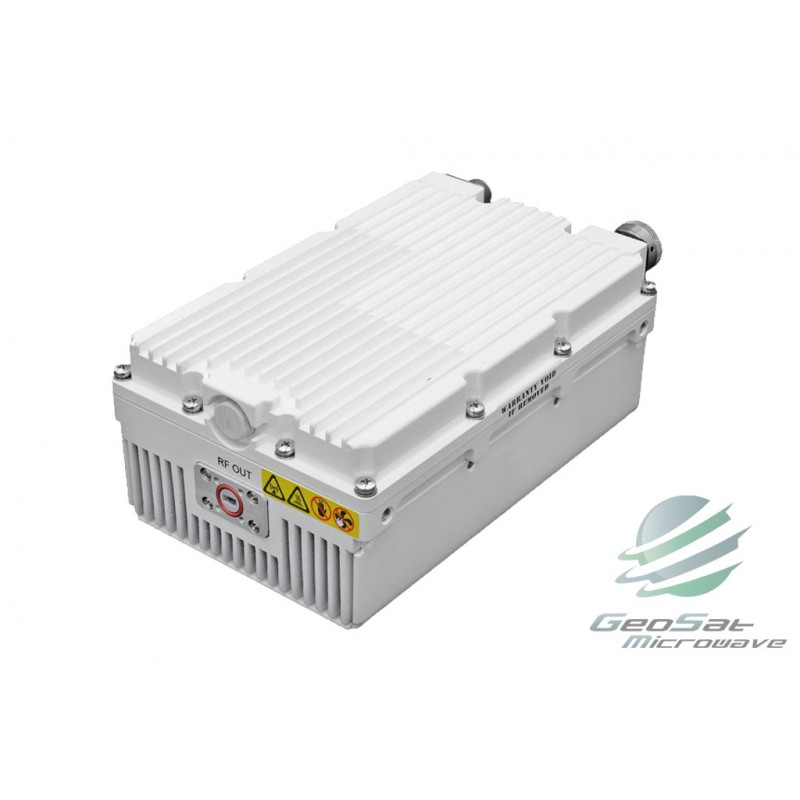

GeoSat 20W Ka-Band (27.652-28.388 GHz) BUC Block Up-Converter F-Connector
GB20KA51F
New
• RF Frequency - 27.652-28.388 GHz
• Low power consumption
• Higher reliability from integrated design principle
• Compact size and light weight
• Meet ETSI, FCC standards
Specifications:
|
Section |
Item |
Specification |
||
|
|
Power Requirement |
RF Frequency |
27.652-28.388 GHz |
|
|
IF Frequency |
972-1871 MHz |
|||
|
|
Input Characteristics |
External Reference |
10 MHz, 0±5 dBm |
|
|
Saturated Output Power |
≥43 dBm |
|||
|
Rated Output Power |
43 dBm |
|||
|
Linear Output Power |
40 dBm |
|||
|
IMD3 @3dB back-off from Rated Output Power |
-25 dBc (max) |
|||
|
Small Signal Gain |
67 dB |
|||
|
Gain Variation |
1 dB p-p/ 36 MHz |
|||
|
Gain Stability |
±2 dB |
|||
|
Gain Adjustment Range |
20 dB (Step: 0.1 dB |
|||
|
|
Transfer Characteristics |
Phase Noise （IES-308/309） |
-63 dBc/Hz @100 Hz |
|
|
Output Spurious |
-60 dBc (max) |
|||
|
Power Supply |
+12 to +36 VDC |
|||
|
Power Supply Draw @Rated Output Power |
180 W |
|||
|
Power Supply Draw @Linear Output Power |
120 W |
|||
|
RF Output Connector |
WR28-G (Grooved) |
|||
|
RF Output VSWR |
1.25:1 |
|||
|
IF Input Connector |
F-Type Female |
|||
|
IF Input VSWR |
1.5:1 |
|||
|
Power Supply Connector |
ACS02E10SL-4P |
|||
|
Monitor and Control Connector |
PT02E-12-14P RS-485, RS-232 & Ethernet (Telnet) |
|||
|
LED Indicators |
LEDs off: Equipment functioning properly Yellow: PLL unlock alarm |
|||
|
Size |
206*136*88 mm |
|||
|
Weight |
3.5 Kg |
|||
|
|
Operating Temperature |
-40 to +60 ℃ |
||
|
Humidity |
0-100% (Condensing) |
|||
|
Altitude |
0-10000 F ASL |
|||
|
Download the Specification in PDF Format |
||
 |
GeoSat 20W Ka-Band BUC Block Up-Converter F-Connector |
|
