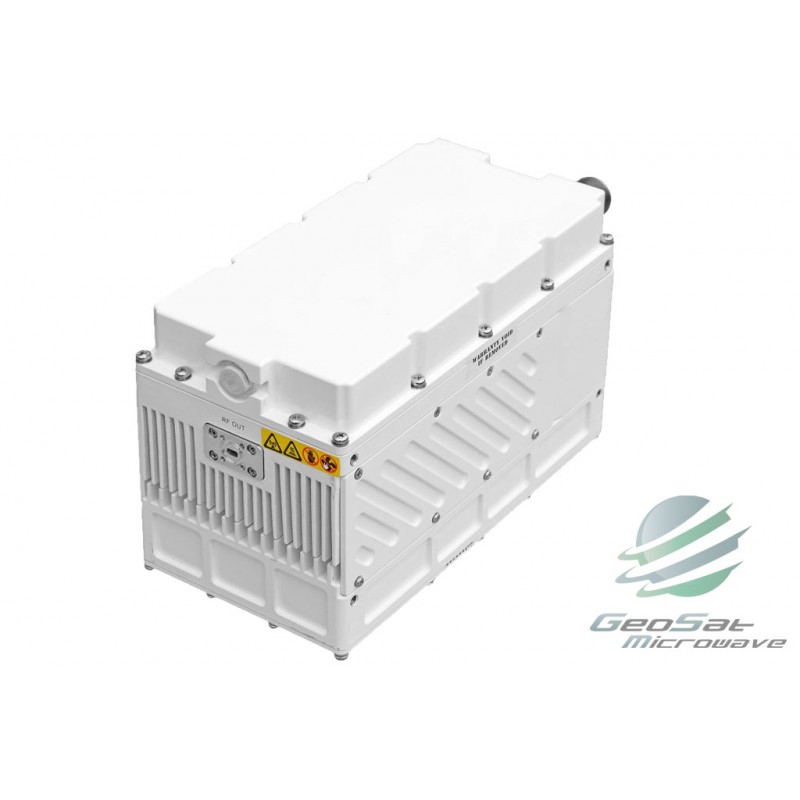

GeoSat 40W Ka-Band (29-31 GHz) BUC Block Up-Converter F-Connector

Section

Item

Specification

RF Frequency

29-30 GHz & 30-31 GHz

IF Frequency

1000-2000 MHz

External Reference

10 MHz, 0±5 dBm

Saturated Output Power

≥46 dBm

Rated Output Power

46 dBm

Linear Output Power

43 dBm

IMD3 @3dB back-off from Rated Output Power

-25 dBc (max)

Small Signal Gain

70 dB

Gain Variation

1 dB p-p/ 36 MHz
3 dB p-p/ 500 MHz
4 dB p-p/ 1000 MHz

Gain Stability

±1.5 dB

Gain Adjustment Range

20 dB (Step: 0.1 dB

Phase Noise （IES-308/309）

-63 dBc/Hz @100 Hz
-73 dBc/Hz @1 KHz
-83 dBc/Hz @10 KHz
-93 dBc/Hz @100 KHz

Output Spurious

-55 dBc (max)

Power Supply

85 to 265 VAC

Power Supply Draw @Rated Output Power

180 W

Power Supply Draw @Linear Output Power

360 W

RF Output Connector

WR28-G (Grooved)

RF Output VSWR

1.25:1

IF Input Connector

F-Type Female

IF Input VSWR

1.5:1

Power Supply Connector

ACS02E-14S-7P

Monitor and Control Connector

PT02E-14-19P, RS-485, RS-232 & Ethernet

LED Indicators

LEDs off: Equipment functioning properly Yellow: PLL unlock alarm

Size

259*136*150 mm

Weight

8 Kg

Operating Temperature

-40 to +60 ℃

Humidity

0-100% (Condensing)

Altitude

0-10000 F ASL
