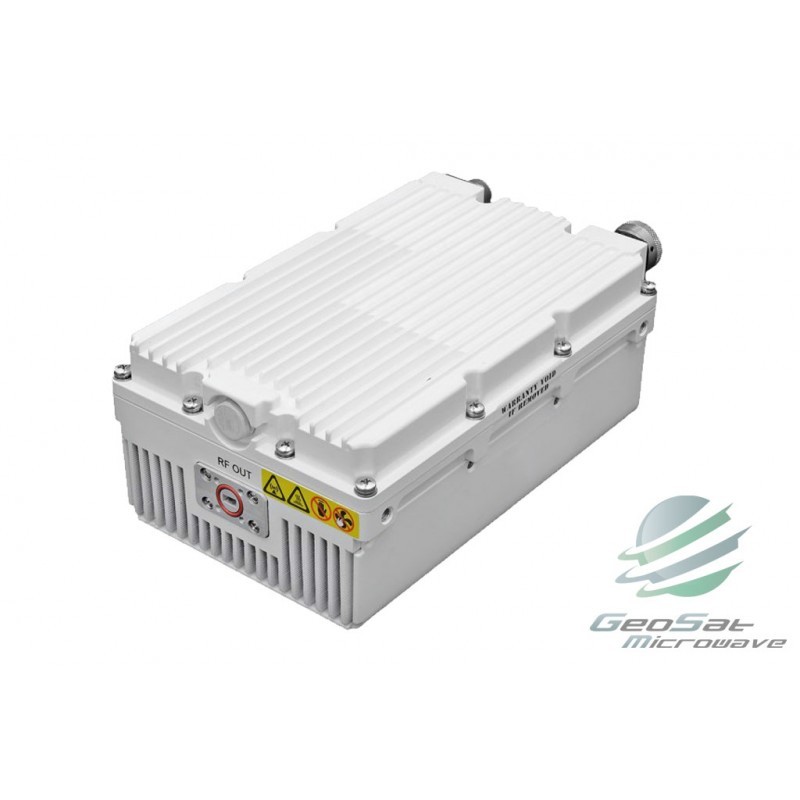

GeoSat 10W Ka-Band (29-30 GHz) BUC Block Up-Converter N-Connector

Section

Item

Specification

RF Frequency

29-30 GHz    (1)
29.5-30 GHz (2)
30-31 GHz    (3)

IF Frequency

950-1950 MHz
950-1450 MHz
1000-2000 MHz (Optional)

External Reference

10 MHz, 0±5 dBm

Saturated Output Power

40 dBm

Rated Output Power

40 dBm

Linear Output Power

37 dBm

IMD3 @3dB back-off from Rated Output Power

-25 dBc (max)

Small Signal Gain

70 dB

Gain Variation

1 dB p-p max./36 MHz
3 dB p-p max. /500 MHz
4 dB p-p max./1000 MHz

Gain Stability

3 dB

Gain Adjustment Range

20 dB (Step: 0.1 dB

Phase Noise （IES-308/309）

-63 dBc/Hz @100 Hz
-73 dBc/Hz @1 KHz
-83 dBc/Hz @10 KHz
-93 dBc/Hz @100 KHz

Output Spurious

-60 dBc (max)

Power Supply

+22 to +60 VDC

Power Supply Draw @Rated Output Power

75 W

Power Supply Draw @Linear Output Power

45 W

RF Output Connector

WR28-G (Grooved)

RF Output VSWR

1.25:1

IF Input Connector

N-Type Female

IF Input VSWR

1.5:1

Power Supply Connector

ACS02E10SL-4P

Monitor and Control Connector

PT02E-12-14P RS-485, RS-232 & Ethernet (Telnet)

LED Indicators

Left on: PLL alarm
Left flash: Current abnormal

Size

120*120*75 mm

Weight

1.5 Kg

Operating Temperature

-40 to +60 ℃

Humidity

0-100% (Condensing)

Altitude

0-10000 F ASL

Download the Specification in PDF Format

GeoSat 10W Ka-Band BUC Block Up-Converter N-Connector
