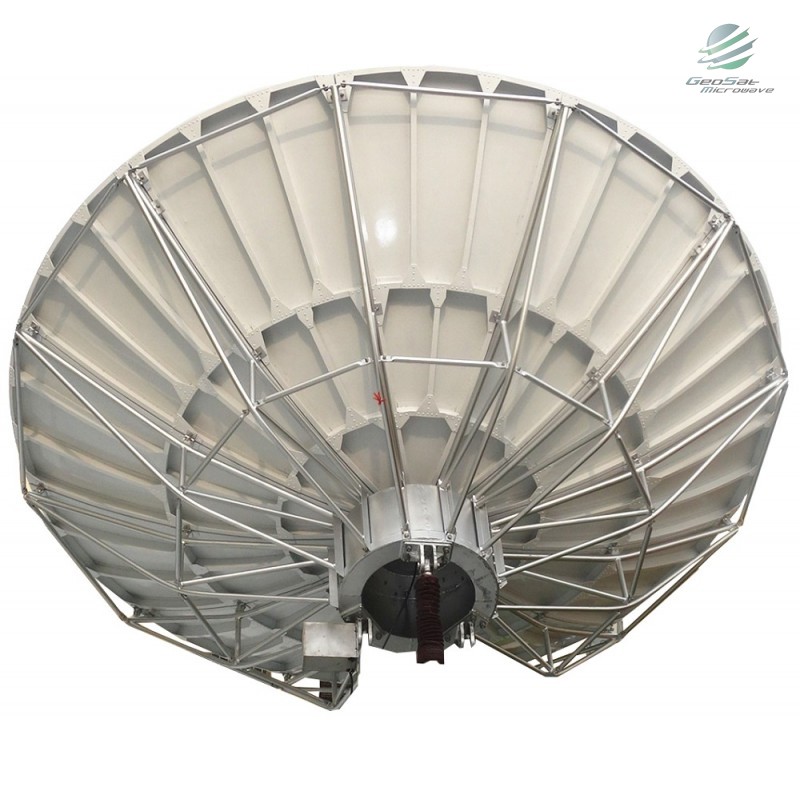

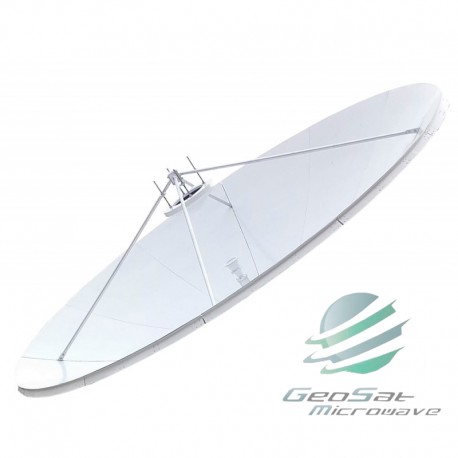

GeoSat 3.7 Meter KA-Band (27.5~31, 17.7~21.2 GHz) Earth Station Antenna
GA37MKATXRX
New
- Frequency range - 17.7 - 21.2, 27.5 - 31 GHz
- Feed Interface - WR-42, WR-28
Specifications:
|
ELECTRICAL SPECIFICATION |
||||
|
Item |
Specification |
|||
|
|
Ka-Band |
|||
|
Receive |
Transmit |
|||
|
|
Operation Frequency, GHz |
17.7~21.2 |
27.5~31 |
|
| Gain, Mid-band, dBi |
55.3 |
58.7 |
||
| Polarization |
Linear/Circular |
|||
| XPD (on Axis), dB |
35 |
35 |
||
| XPD (across 1dB Beam width), dB |
33 |
33 |
||
|
|
Axial Ratio(Circular-Polarized), 2-port Feed |
1.2 |
||
| VSWR | 1.3 |
1.3 |
||
|
Antenna Noise Temperature |
||||
| 5°Elevation |
141°K |
|||
| 10°Elevation |
120°K |
|||
|
|
20°Elevation |
101°K |
||
| 40°Elevation |
90°K |
|||
| -3dB Beam width, Mid-band |
0.28° |
0.18° |
||
| TX. Power Capability, W |
500 |
|||
| Feed Interface |
WR-42 |
WR-28 |
||
| Feed Insertion Loss |
0.6. |
0.4 |
||
| Isolation, TX to Rx,dB |
90 |
|||
| First Side Iobe |
-14 |
-14 |
||
| 90% Peaks under Following Envelop |
29-25logθ(1°≤θ<20°) |
29-25logθ(1°≤θ<20°) |
||
|
MECHANICAL SPECIFICATION |
||
|
Item |
Specification |
|
|
|
Antenna Diameter |
3.7 |
|
|
Antenna Type |
Cassegrain |
|
|
Mount Type |
El. Over AZ. |
|
|
Surface Accuracy (RMS) |
≤ 0.35mm |
|
|
Antenna Pointing Range and speed | |
|
|
Azimuth |
0°～360°, ±10 °(Continuous) |
|
|
Elevation |
0°~ 90° (Continuous) |
|
|
Polarization |
360° (Continuous) |
|
|
Drive Mode |
Manual or Motorized |
|
ENVIRONMENTAL SPECIFICATION |
||
|
Item |
Specification |
|
|
|
Operational Wind |
72 km/h Gusting to 97 km/h |
|
|
Survival Wind |
216 km/h |
| Temperature |
-40℃~+60℃ |
|
| Relative Humidity |
100% |
|
| Seismic (Survival) | 0.3g(H), 0.15g(V) | |
| Solar Radiation |
1135Kcal/ h/ m2 |
|
| Ice Loading |
13mm Operational; 25mm Survival |
|
|
Download the Specification in PDF Format |
||
 |
3.7 Meter KA-Band Earth Station Antenna GA37MKATXRX Specsheet |
|
