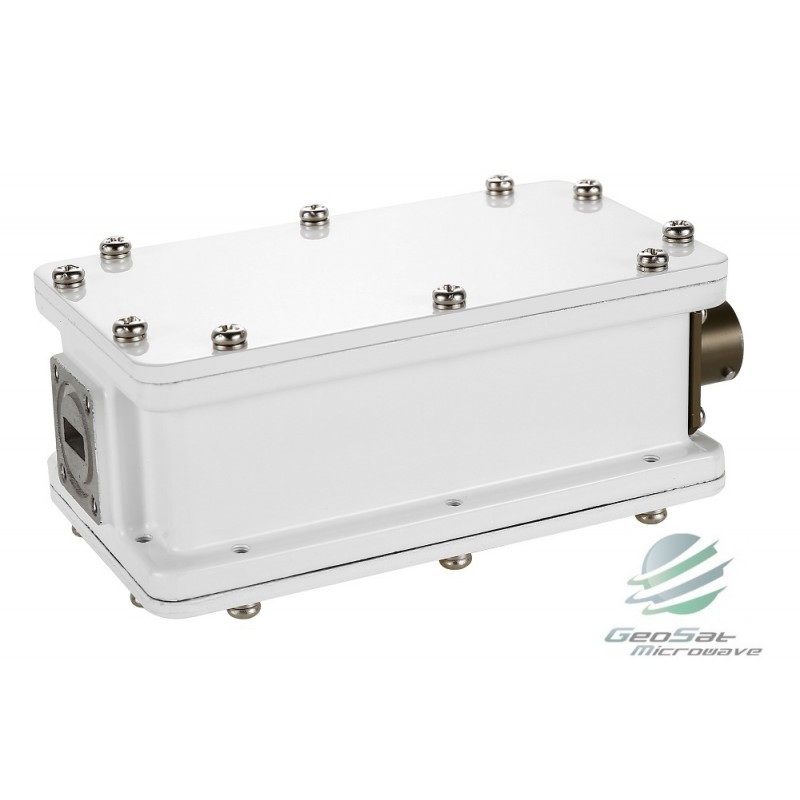

Geosat Low Noise Amplifiers Ka-Band (17.2 - 18.2 GHz) GLAKA1718 (LNA)
GLAKA1718
New
- Input Freq. - 17.2-18.2 GHz
- Input waveguide flange - MS3112E10-6P (option)
- Power Supply - +12 to +24V DC
Specifications:
| Parameter | Specification | |
| Frequency range | 17.2 - 18.2 GHz | |
| Noise figure | 1.5 dB max | |
| Conversion gain at -40 to +60℃ | 55dB typ. (50dB min. 60dB max.) | |
| Gain flatness | 4 dBp-p max. | |
| Gain flatness at -40 to +60℃ | 5 dBp-p max. | |
| Gain ripple at per 27MHz, -40 to +60℃ | 1 dBp-p max. | |
| Output P1dB | +5 dBm min. | |
| Input VSWR | 2.2 : 1 max | |
| Output VSWR | 2.2 : 1 max | |
| Input waveguide flange | WR-42 | |
| Output connector | N, SMA-type female (option) | |
| Power connector | MS3112E10-6P (option) | |
| Power supply | +12 to +24V DC | |
| Required current | 250 mA max | |
| Operating temperature | -40 to +60℃ | |
| Waterproof | IP 67. | |
| Dimension (exclude connector) | 60.0 x 45.0 x 111.5 mm | |
| Weight | 450 g | |
|
Download the Specification in PDF Format |
||
 |
Geosat Low Noise Amplifiers Ka-Band (LNA) GLAKA1718 Specsheet |
|
