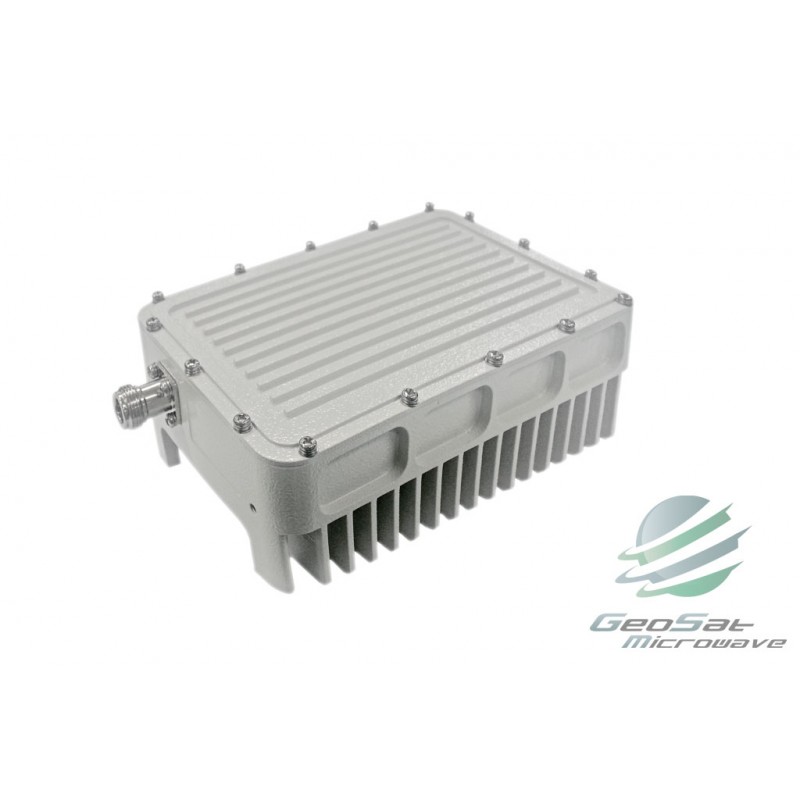

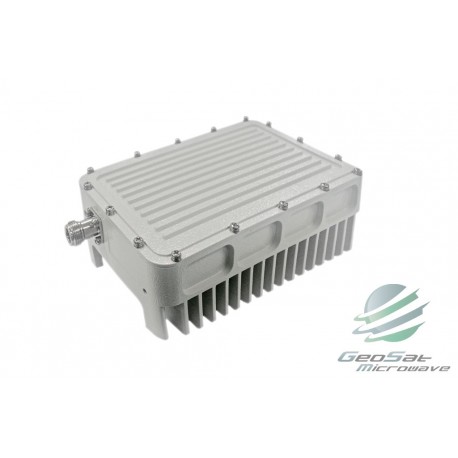

GeoSat 3W Ka-Band (29.5 ~ 30GHz) BUC Block Up-Converter | Model: GB34SKA1N
GB34SKA1N
New
• Min. 34.5dBm Output P1dB over Temp.
• Light Weight & Small Size
• Leak Protected and 100% Screened
• RoHS Compliant
• 3 Year GeoSat Product Warranty
Specifications:
| Section | Item | Specification | |
| Power Requirement | Voltage | +15 ~ +24V DC | |
| Power Consumption | 65W max | ||
| Input Characteristics | Frequency Range | 950 ~ 1450MHz | |
| Impedance | 75 / 50 Ohms | ||
| Return Loss (VSWR) | > 10 dB | ||
| IF Connector | F / N-Type (Female) | ||
| Output Characteristics | Frequency Range | 29.5 ~ 30GHz | |
| Power @ 1dB Comp. | Min. 34.5dBm over temp. | ||
| Return Loss (VSWR) | > 10 dB | ||
| RF Connector | WR 28 | ||
| Transfer Characteristics | Frequency Sense | Non Inverted | |
| Local Frequency | 28.55 GHz | ||
| External Reference Frequency | 10MHz, Sine wave | ||
| Gain | 57 dB typ. @ 25 ℃ | ||
| Phase Noise ▼ | |||
| 100Hz | < -60dBc / Hz | ||
| 1kHz | < -70dBc / Hz | ||
| 10kHz | < -80dBc / Hz | ||
| 100kHz | < -90dBc / Hz | ||
| Output Noise | 18.3 to 21.2GHz | < -150dBm | |
| Mute | HPA is turned off in case of LO unlocked. | ||
| Mechanical | Dimension (mm) | 190 x 145 x 68mm | |
| Weight | 2.5kg | ||
| Painting | White Color | ||
| Operating Temperature | 40℃ ~ + 55℃ | ||
| - | |||
| Download the Specification in PDF Format | ||
 |
3W Ka-Band Block Up-Converter (BUC) GB34SKA1N Specsheet |
|
