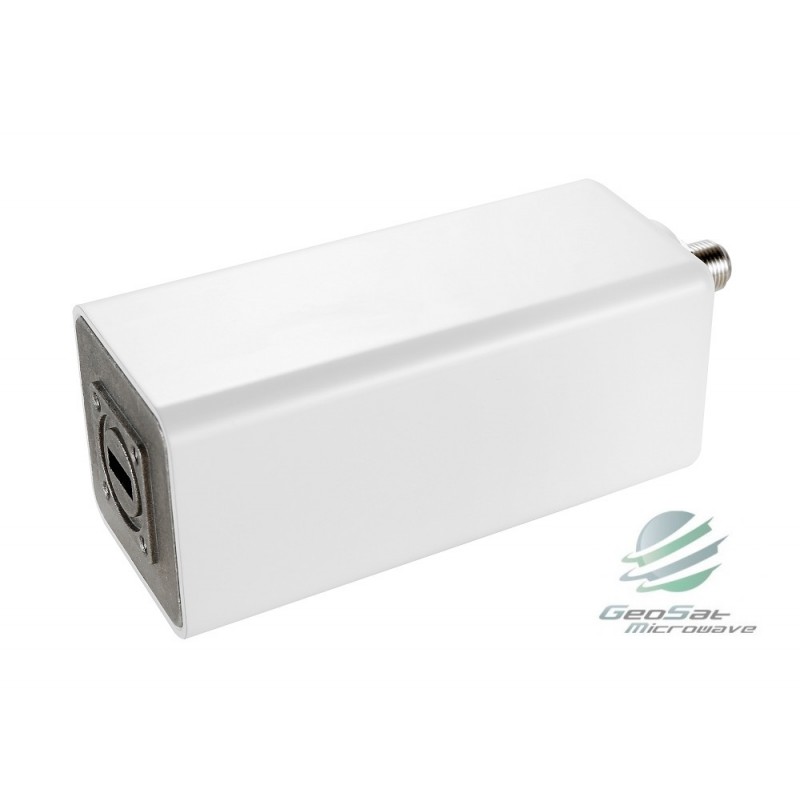

Geosat Ka-Band (20.2 - 21.2 GHz) PLL LNB Ext. Ref. (LNB)
GLKA202212X
New
• Low Current Consumption.
• Low Noise Specification
• Designed for Fixed or Mobile Applications
• Broad Gain Control Range
• 3 Year GeoSat Product Warranty
Specifications:
| Parameter | Specification | |
| Input Freq. | 20.2 - 21.2 GHz | |
| Output Freq. | 950 – 1950 MHz | |
| L.O Freq. | 19.25 GHz | |
| Noise figure | 1.6 dB max | |
| Conversion gain at -40 to +60℃ | 60 dB typ. (55dB min. 65dB max.) | |
| Gain flatness | 4 dBp-p max. | |
| Gain flatness at -40 to +60℃ | 5 dBp-p max. | |
| Gain ripple at per 27MHz, -30 to +60℃ | 1 dBp-p max. | |
| L.O stability at -40 to +60℃ | depends on ext. ref. | |
| Image rejection | 40 dBc min. | |
| Phase noise | -70 dBc/Hz (@1KHz) -80 dBc/Hz (@10KHz) -95 dBc/Hz (@100KHz) |
|
| Output P1dB | +5 dBm min. | |
| Ext. ref. input freq. & power | 10 MHz, -5 to +5 dBm | |
| Ext. ref. input port | IF output connector | |
| Input VSWR | 2.5: 1 max | |
| Output VSWR | 2.5: 1 max | |
| Input waveguide flange | WR-42 | |
| Output connector | F, N-Type female (option) | |
| Power supply | +12 to +24V DC | |
| Required current | 450 mA max. | |
| Operating temperature | -40 to +60℃ | |
| Waterproof | IP 67 | |
| Dimension (exclude connector) | 42.2 x 42.2 x 98.7 mm | |
| Weight | 270 g | |
|
Download the Specification in PDF Format |
||
 |
Geosat Ka-Band PLL LNB Ext. Ref. (LNB) GLKA202212X Specsheet |
|
