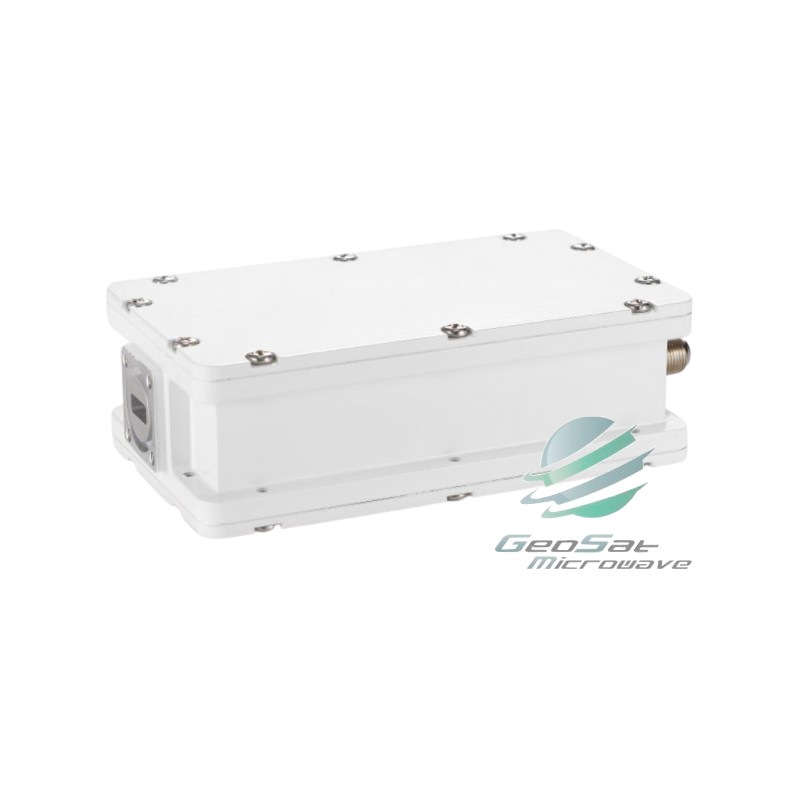

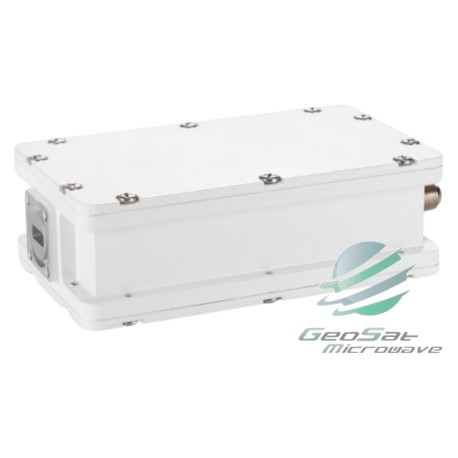

GeoSat Microwave Low Noise Block Ka-Band (17.20-22 .20 GHz) 4 LO PLL (LNB) GLKA4LO
GLKA4LO
New
- GLKA4LO (1)
- Input freq. 1 - 17.20-18.20GHz
- Input freq. 2 - 18.20-19.20GHz
- Input freq. 3 - 19.20-20.20GHz
- Input freq. 4 - 20.20-21.20GHz
- GLKA4LO (2)
- Input freq. 1 - 18.20-19.20GHz
- Input freq. 2 - 19.20-20.20GHz
- Input freq. 3 - 20.20-21.20GHz
- Input freq. 4 - 21.20-22.20GHz
- L.O (GHz) GLKA4LO (1)- 16.25,17.25,18.25,19.25
- L.O (GHz) GLKA4LO (2)- 17.25,18.25,19.25,20.25
- 10KHz stability
Specifications:
| Section | Item | Specification | |
| GLKA4LO (1) | Band 1 | Input (GHz) | 17.20 - 18.20 |
| Output (MHz) | 950 - 1950 | ||
| L.O (GHz), Switching | 16.25 @13V | ||
| Band 2 | Input (GHz) | 18.20 - 19.20 | |
| Output (MHz) | 950 - 1950 | ||
| L.O (GHz), Switching | 17.25 @13V & 22KHz | ||
| Band 3 | Input (GHz) | 19.20 - 20.20 | |
| Output (MHz) | 950 - 1950 | ||
| L.O (GHz), Switching | 18.25 @18V | ||
| Band 4 | Input (GHz) | 20.20 - 21.20 | |
| Output (MHz) | 950 - 1950 | ||
| L.O (GHz), Switching | 19.25 @18V & 22KHz | ||
| GLKA4LO (2) | Band 1 | Input (GHz) | 18.20 - 19.20 |
| Output (MHz) | 950 - 1950 | ||
| L.O (GHz), Switching | 17.25 @13V | ||
| Band 2 | Input (GHz) | 19.20 - 20.20 | |
| Output (MHz) | 950 - 1950 | ||
| L.O (GHz), Switching | 18.25 @18V | ||
| Band 3 | Input (GHz) | 20.20 - 21.20 | |
| Output (MHz) | 950 - 1950 | ||
| L.O (GHz), Switching | 19.25 @18V & 22KHz | ||
| Band 4 | Input (GHz) | 21.20 - 22.20 | |
| Output (MHz) | 950 - 1950 | ||
| L.O (GHz), Switching | 20.25 @22V | ||
| Noise figure | 2.0 dB max. (with isolator) | ||
| Conversion gain at -40 to +60℃ | 60 dB typ. (55dB min, 65dB max) | ||
| Gain flatness | 4 dBp-p max. (each band) | ||
| Gain flatness at -40 to +60℃ | 5 dBp-p max. (each band) | ||
| Gain ripple at per 27MHz, -40 to +60℃ | 1 dBp-p max | ||
| L.O stability at -40 to +60℃ | ±10, 25 KHz max. | ||
| Image rejection | 40 dBc min. @Band 1 | ||
| 10 dBc min. @Band 2 | |||
| 0 dBc min. @Band 3, 4, 5 | |||
| Phase noise | -70 dBc/Hz (@1 KHz) | ||
| -80 dBc/Hz (@10 KHz) | |||
| -95 dBc/Hz (@100 KHz) | |||
| Output P1dB | +10 dBm min. | ||
| Input VSWR | 3.5 : 1 max. | ||
| Output VSWR | 2.2 : 1 max. | ||
| Input waveguide flange | WR-42 | ||
| Output connector | F, N-type female (option) | ||
| Power supply | +12 to +24V DC | ||
| Required current | 450 mA max. | ||
| Operating temperature | -40 to +60℃ | ||
| Waterproof | IP 67 | ||
| Dimension (exclude connector) | 66.8 x 38.4 x 117.4 mm | ||
| Weight | 520 g |
Download the Specification in PDF Format |
||
 |
GeoSat Microwave Low Noise Block Ka-Band 4 LO PLL (LNB) GLKA4LO |
|
