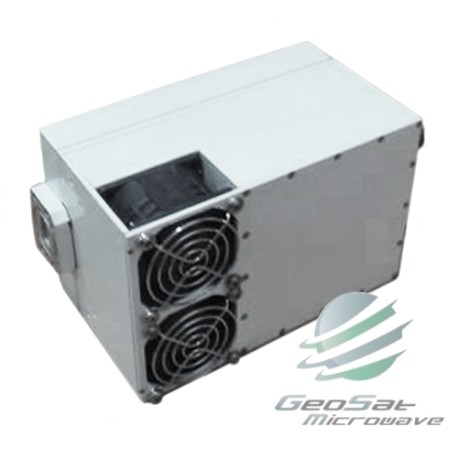

Geosat 12W Ka-band Universal GaN BUC (27.5-31 GHz) View larger

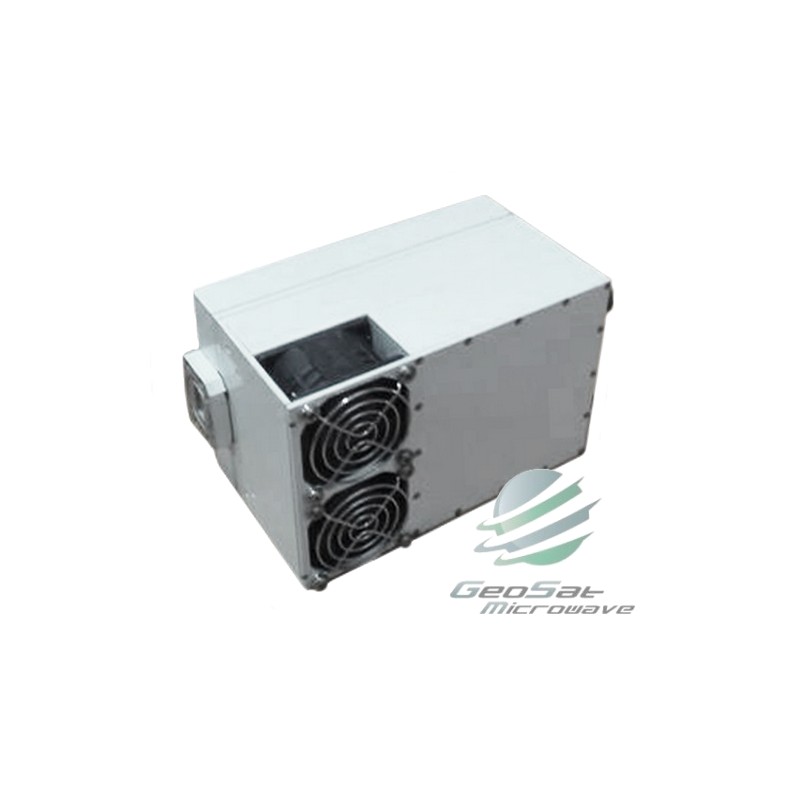

Geosat 12W Ka-band Universal GaN BUC (27.5-31 GHz)

GB12KAU

New

  • Output frequency 1 - 27.5 - 28.5 GHz
  • Output frequency 2 - 28.5 - 29.5 GHz
  • Output frequency 3 - 29.0 - 30.0 GHz
  • Output frequency 4 - 30.0 - 31.0 GHz
  • L.O (GHz), Switching - 26.55 / 27.55 / 28.05 / 29.00 GHz

More details

Specifications:

Item Specification
Output Frequency Range 27.5 - 31 GHz
Input Frequency Range 950 to 2000 MHz
LO frequency switchable 26.55 / 27.55 / 28.05 / 29.00 GHz (Table 1)
M&C RS-485 / RS-232 / Ethernet (SNMP / HTTP)
Output Power @ Psat GaN 41 dBm -
Linear Power @ -25dB IMD3 39 dBm -
Linear gain 55 dB
Gain Flatness (40 MHz BW) ± 1 dB max
Gain Variation Over Temperature ± 2 dB max
Phase Noise < -75 dBc/Hz @1 kHz;
< -85 dBc/Hz @10 kHz;
< -95 dBc/Hz @100 kHz
Spurious @ Plinear -60dBc max
Input Return Loss > -15 dB
IF Input / RF Output Interfaces 50 ohm N-type / WR28
External / Internal Reference 10 MHz sine wave
Ref Stability ± 1x 10E-7 (Minimum requirement)
AC/ DC Voltage 90-250VAC / optional 36-60VDC /
Power consumption 41dBm - 100W ; 46 dBm - 300W
Operating Temperature/ Humidity -40 °C to 55 °C / up to 98%
Dimensions / Weight 41dBm - 120x120x200mm / 3.5kg

Download the Specification in PDF Format
