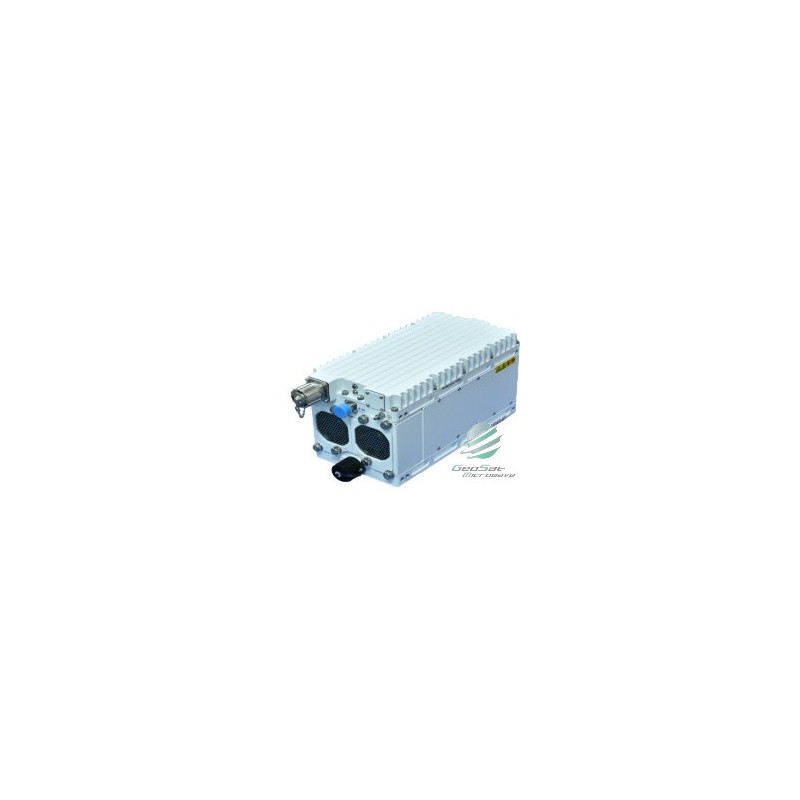

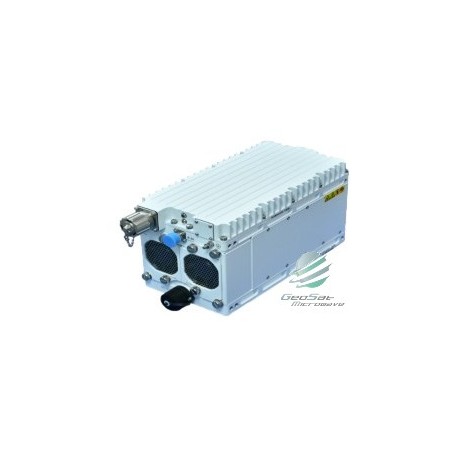

GeoSat 80W Ka-Band (27.5-31 GHz) BUC Block Up-Converter
GB80KA27531
New
Typical VSAT Applications
- Maritime
- 5G Backhaul
- SNG Vehicle
- Terminals
- Fixed
- Portable
- Transportable
Specifications:
|
Section |
Item |
Specification |
||
| Power Requirement | RF Frequency | 27.5-31Ghz | ||
| IF Frequency | 950-1950 MHz 950-1450 MHz 1000-2000 MHz |
|||
| External Ref | 10 MHz, 0±5 dBm | |||
| Outpower Rated/Saturated PLin1 PLin2 PLin3 |
49 dBm 48 dBm 47 dBm 46 dBm |
|||
| IMD3 (3dB from rated) | -25 dBc | |||
| Small Signal Gain | 70 dBm | |||
| Gain Variation | 1 dB p-p / 36 MHz 3 dB p-p / 500 MHz 4 dB p-p / 750 MHz |
|||
| Gain Stability | 3 dB p-p max | |||
| Gain Adjustment Range | -20 dB (Step: 0.1 dB) | |||
| Phase Noise | -63 dBc/Hz @100 Hz -73 dBc/Hz @1 KHz -83 dBc/Hz @10 KHz -93 dBc/Hz @100 KHz |
|||
| Output Spurious | -55 dBc (max) | |||
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
|||
| Power Supply | Input Power | ACS02E10SL-4P | ||
| Power Consumption @ PLin3 Output @ Rated Output |
300 W 450 W |
|||
| Interfaces | RF Output Connector | WR28-G (Grooved) | ||
| RF Output VSWR | 1.25:1 | |||
| IF Input Connector | N-Type Female | |||
| IF Input VSWR | 1.5:1 | |||
| Power Connector | AMPHENOL C01610C00600012 | |||
| M&C Connector | RJ45 (Ethernet) | |||
| Alarm Status Indicator | LED (green/red) | |||
| Physical Parameters | Size (inches) (mm) |
10.2*5.4*4.7 259*136*118 |
||
| Weight (inches) (mm) |
12 lbs 5.8 kg |
|||
| Operating Temperature | -40 to +60 ℃ | |||
| Humidity | 0-100% (Condensing) | |||
| Altitude | 0-10000 feet ASL | |||
| Available 3 frequencies per unit: | |||
| Frequency Listing | |||
| Bank ID | Tx Range (GHz) | IF Range (MHz) | LO (GHz) |
| 1 = | 29.0-30.0 | 950-1950 | 28.05 |
| 2 = | 29.5-30.0 | 950-1450 | 28.55 |
| 3 = | 30.0-31.0 | 950-1950 | 29.05 |
| 4 = | Band 1 = 29.0 - 30.0 | 950 – 1950 | 28.05 |
| Band 2 = 30.0 - 31.0 | 950 - 1950 | 29.05 | |
| 5 = | 27.652 - 28.388 | 1052 - 1788 | 26.60 |
| 6 = | 28.172 - 29.071 | 972 - 1871 | 27.20 |
| 7 = | Band 1 = 27.652 - 28.388 | 1052 – 1788 | 26.60 |
| Band 2 = 28.172 - 29.071 | 972 - 1871 | 27.20 | |
| T = | Band 1 = 27.50 - 28.50 | 950 – 1950 | 26.55 |
| Band 2 = 28.25 - 29.25 | 950 – 1950 | 27.30 | |
| Band 3 = 29.00 - 30.00 | 950 – 1950 | 28.05 | |
|
Download the Specification in PDF Format |
||
 |
GeoSat 80W Ka-Band BUC Block Up-Converter N-Connector |
|
