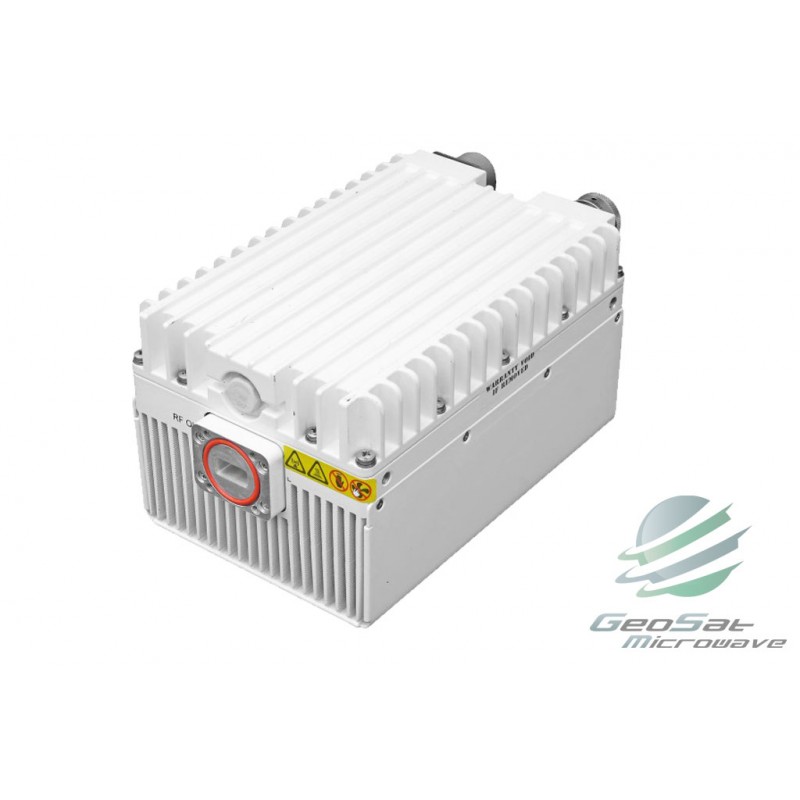

GeoSat 50W Ku-Band (13.75-14.5 GHz) BUC DC Power N-Connector

Section

Item

Specification

RF Frequency

13.75-14.5 GHz

IF Frequency

950-1700 MHz

External Reference

10 MHz, 0±5 dBm

Saturated Output Power

47.5 dBm

Rated Output Power

47 dBm

P1dB Output Power

NA

IMD3 @3dB back-off from Rated Output Power

-25 dBc (max)

Small Signal Gain

70 dB

Gain Variation

1 dB p-p/ 36 MHz
3 dB p-p/ 500 MHz
4 dB p-p/ 750 MHz

Gain Stability

±1.5 dB

Gain Adjustment Range

20 dB (Step: 0.1 dB)

Phase Noise （IES-308/309）

-63 dBc/Hz @100 Hz
-73 dBc/Hz @1 KHz
-83 dBc/Hz @10 KHz
-93 dBc/Hz @100 KHz

Output Spurious

-55 dBc (max)

Power Supply

+36 to +72 VDC

Power Supply Draw @Rated Output Power

380 W

RF Output Connector

WR75-G (Grooved)

RF Output VSWR

1.25:1

IF Input Connector

N-Type Female

IF Input VSWR

1.5:1

Power Supply Connector

ACS02E16-11P

Monitor and Control Connector

PT02E-14-19P RS-485, RS-232 & Ethernet

LED Indicators

LEDs off: Equipment function
properly
Yellow: PLL unlock alarm

Size

206*136*116 mm

Weight

4 Kg

Operating Temperature

-40 to +60 ℃

Humidity

0-100% (Condensing)

Altitude

0-10000 F ASL

Download the Specification in PDF Format

GeoSat 50W Ku-Band BUC DC Power N-Connector
