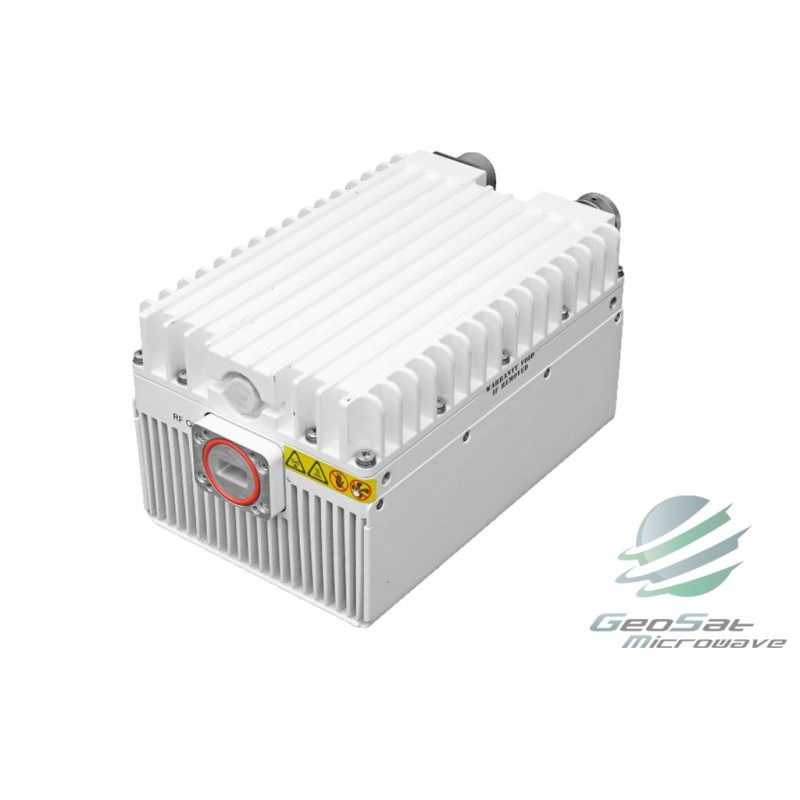

GeoSat 50W Ku-Band (13.75-14.5 GHz) BUC AC Power N-Connector
GBE50KU3
New
• Higher reliability from integrated design principle
• Performing well at wide temperature range
• Reasonable size and light weight
• Meet ETSI, FCC Standards
Specifications:
|
Section |
Item |
Specification |
||
|
|
Power Requirement |
RF Frequency |
13.75-14.5 GHz |
|
|
IF Frequency |
950-1700 MHz |
|||
|
|
Input Characteristics |
External Reference |
10 MHz, 0±5 dBm |
|
|
Saturated Output Power |
47.5 dBm |
|||
|
Rated Output Power |
47 dBm |
|||
|
P1dB Output Power |
NA |
|||
|
IMD3 @3dB back-off from Rated Output Power |
-25 dBc (max) |
|||
|
|
Output Characteristics |
Small Signal Gain |
70 dB |
|
|
Gain Variation |
1 dB p-p/ 36 MHz |
|||
|
Gain Stability |
±1.5 dB |
|||
|
Gain Adjustment Range |
20 dB (Step: 0.1 dB) |
|||
|
|
Transfer Characteristics |
Phase Noise （IES-308/309） |
-63 dBc/Hz @100 Hz |
|
|
Output Spurious |
-55 dBc (max) |
|||
|
Power Supply |
85 to 265 VAC |
|||
|
Power Supply Draw @Rated Output Power |
420 W |
|||
|
RF Output Connector |
WR75-G (Grooved) |
|||
|
RF Output VSWR |
1.25:1 |
|||
|
IF Input Connector |
N-Type Female |
|||
|
IF Input VSWR |
1.5:1 |
|||
|
Power Supply Connector |
ACS02E-14S-7P |
|||
|
Monitor and Control Connector |
PT02E-14-19P RS-485, RS-232 & Ethernet |
|||
|
LED Indicators |
LEDs off: Equipment function |
|||
|
Size |
206*136*136 mm |
|||
|
Weight |
5 Kg |
|||
|
|
Operating Temperature |
-40 to +60 ℃ |
||
|
Humidity |
0-100% (Condensing) |
|||
|
Altitude |
0-10000 F ASL |
|||
|
Download the Specification in PDF Format |
||
 |
GeoSat 50W Ku-Band BUC AC Power N-Connector |
|
