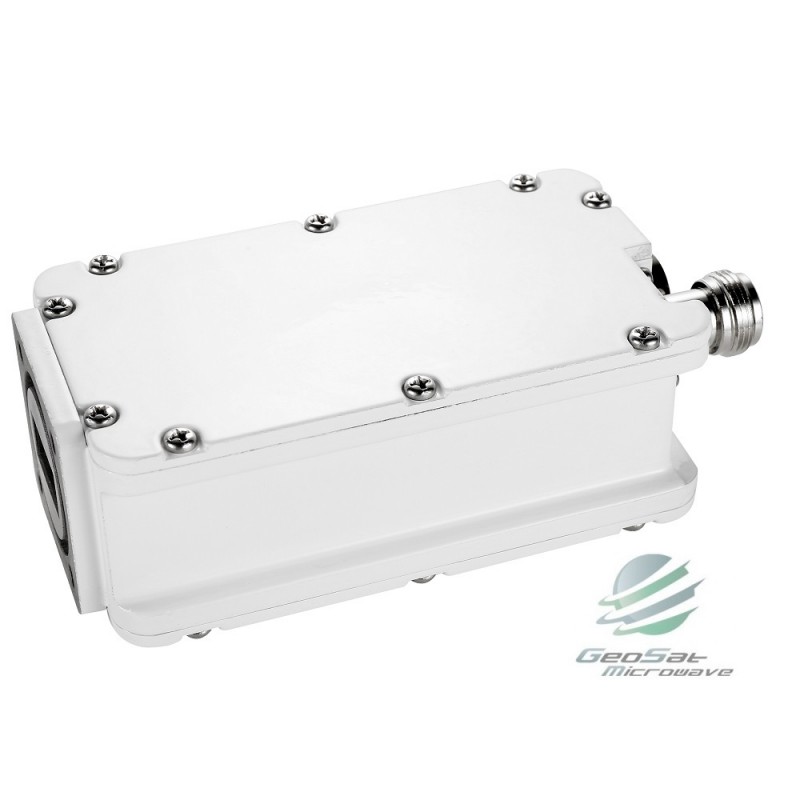

Geosat Low Noise Amplifiers Ku-Band 500 series (LNA) View larger

Geosat Low Noise Amplifiers Ku-Band (10.7 - 12.75 GHz) (LNA)

GLAKU1012U

New

•  Low Current Consumption.
•  Low Noise Specification
•  Designed for Fixed or Mobile Applications
•  Broad Gain Control Range
•  3 Year GeoSat Product Warranty

More details

Specifications:

Parameter Specification
Frequency range 10.7 - 12.75 GHz
Noise figure 0.8 dB max.
Conversion gain at -40 to +60 55 dB typ. (50dB min, 60dB max.).
Gain flatness 4 dBp-p max.
Gain flatness at -40 to +60 5 dBp-p max.
Gain ripple at per 36MHz, -30 to +60 1 dBp-p max.
Output P1dB +5 dBm min.
Input VSWR 2.0: 1 max
Output VSWR 2.0: 1 max
Input waveguide flange WR-75
Output connector N, SMA-type female (option)
Power connector MS3112E10-6P (option)
Power supply +12 to +24V DC
Required current 250 mA max
Operating temperature -40 to +60℃
Waterproof IP 67
Dimension (exclude connector) 60.0 x 41.6 x 111.5 mm
Weight 450 g


Download the Specification in PDF Format
