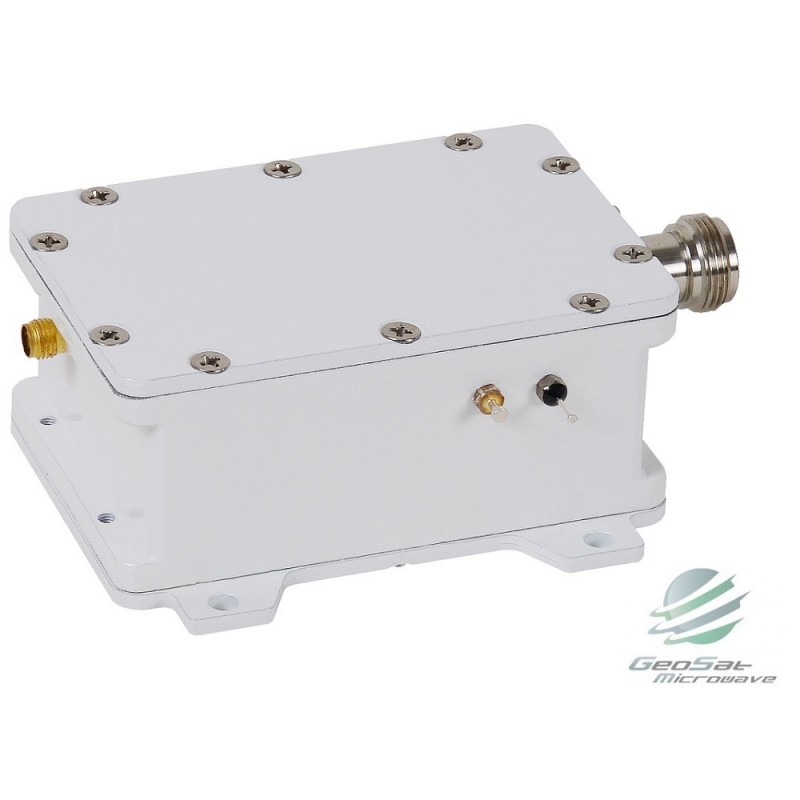

Geosat Block Downconverter Ku-Band (10.7 - 11.8 GHz) (BDC)
GBDKU1011(5, 10, 25)
New
- Input Freq. - 10.7-11.8 GHz
- L.O Freq. - 9.75
- Noise figure - 15 dB max
- L.O stability at -40 to +60℃ - ±5, 10, 25 KHz max.
- Input waveguide flange - Feed thru and/or output connector
- Power Supply - +12 to +24V DC
Specifications:
| Parameter | Specification | |
| Input Freq. | 10.7 - 11.8 GHz | |
| Output Freq. | 950 – 2050 MHz | |
| L.O Freq. | 9.75 GHz | |
| Noise figure | 15 dB max | |
| Conversion gain at -40 to +60℃ | 20 dB typ. (17dB min. 23dB max.) | |
| Gain flatness | 4 dBp-p max. | |
| Gain flatness at -40 to +60℃ | 5 dBp-p max. | |
| Gain ripple at per 27MHz, -30 to +60℃ | 1 dBp-p max. | |
| L.O stability at -40 to +60℃ | ±5, 10, 25 KHz max. | |
| Image rejection | 40 dBc min. | |
| Phase noise | -70 dBc/Hz (@1KHz) -80 dBc/Hz (@10KHz) -95 dBc/Hz (@100KHz) |
|
| Output P1dB | +5 dBm min. | |
| Input VSWR | 2.0: 1 max | |
| Output VSWR | 2.0: 1 max | |
| Input connector | SMA-type female (option) | |
| Output connector | F, N, SMA-type female (option) | |
| Power supply | +12 to +24V DC | |
| Power supply connector | Feed thru and/or output connector | |
| Required current | 300 mA max. | |
| Operating temperature | -40 to +60℃ | |
| Waterproof | IP 67 | |
| Dimension (exclude connector) | 89.6 x 78.0 x 40.0 mm | |
| Weight | 400 g | |
|
Download the Specification in PDF Format |
||
 |
