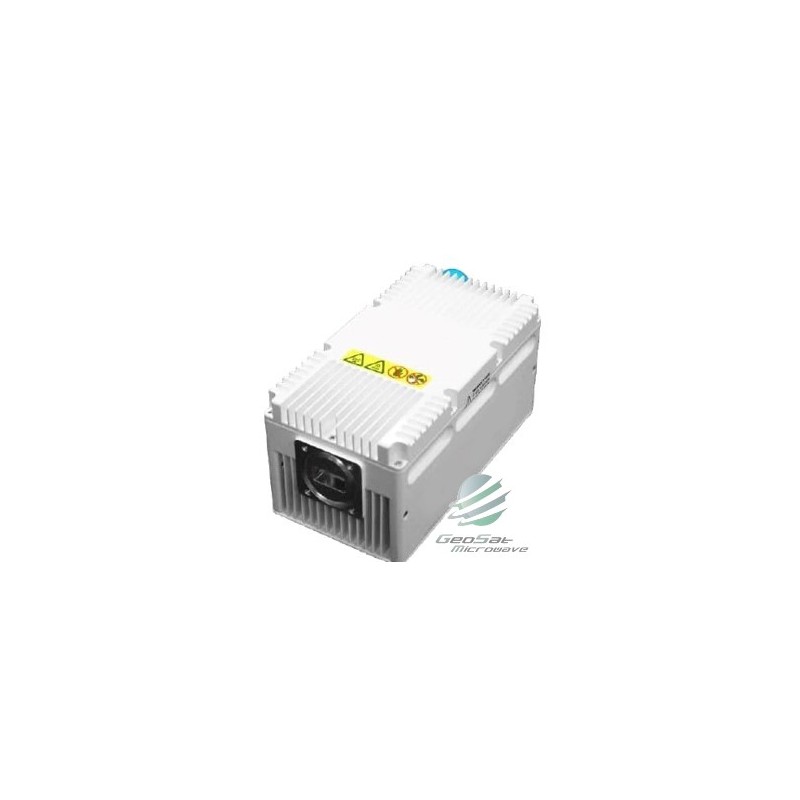

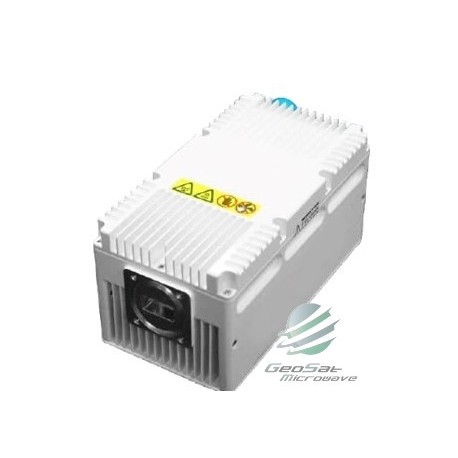

GeoSat 30W Ku-Band (14-14.5 GHz) BUC Block Up-Converter
GB30SKU2N
New
- Highly integrated RF technologies (RFIC and GaN)
- Designed for high volume production
- Linearity optimized for high order modulation and high data rate
- Strict quality control processes resulting in <0.25% field failure rates
Specifications:
|
KEY SPECIFICATIONS |
||
|
Section |
Item |
Specification |
|
RF Specifications |
RF Frequency |
14-14.50 GHz |
|
IF Frequency |
950-1450 MHz |
|
|
External Reference |
10 MHz, 0±5 dBm |
|
|
Saturated Output Power |
46 dBm |
|
|
PLin1 (-26 dBc regrowth, 1.5 SR) PLin2 (-30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3 (<-25 dBc IMD3 (MIL-STD-188-164B, two-carrier)) |
45 dBm
43 dBm
|
|
|
IMD3 (two carriers) @3 dB |
-25 dBc |
|
|
Small Signal Gain No M&C (fixed) |
70dB |
|
|
With M&C (1dB steps) |
50-70dB |
|
|
Gain Variation |
1 dB p-p/ 36 MHz 3 dB p-p/ 500 MHz 4 dB p-p/ 750 MHz |
|
|
Gain Stability |
3 dB p-p |
|
|
Phase Noise |
-60 dBc/Hz @100 Hz -75 dBc/Hz @1 KHz -85 dBc/Hz @10 KHz -95 dBc/Hz @100 KHz |
|
|
Output Spurious |
≤ -55 dBc |
|
|
Power Supply |
Input Power |
+36 to +56 VDC |
|
Power Consumption @ PLin1 Output |
135 W |
|
|
Output Power |
30W P1dB | |
|
Interface |
RF Output Connector |
WR75-G (Grooved) |
|
IF Input Connector |
N-Type Female or F-Type Female |
|
|
IF Input VSWR |
1.5:1 |
|
|
Power |
IFL or Separate DC Connector |
|
|
LED Alarm Indicator |
Green = normal Red on = PLL alarm Red flashing = Temp alarm |
|
| Physical Parameters |
Size (inches) (mm) |
5.9*3.03*2.99 150*80*76 |
|
Weight (lbs) (kg) |
2.9 1.3 |
|
|
Operating Temperature |
-40 to +60 ℃ |
|
|
Physical Parameters |
Humidity |
0-100% (Condensing) |
|
Altitude |
0-10000 F ASL |
|
Download the Specification in PDF Format |
||
 |
