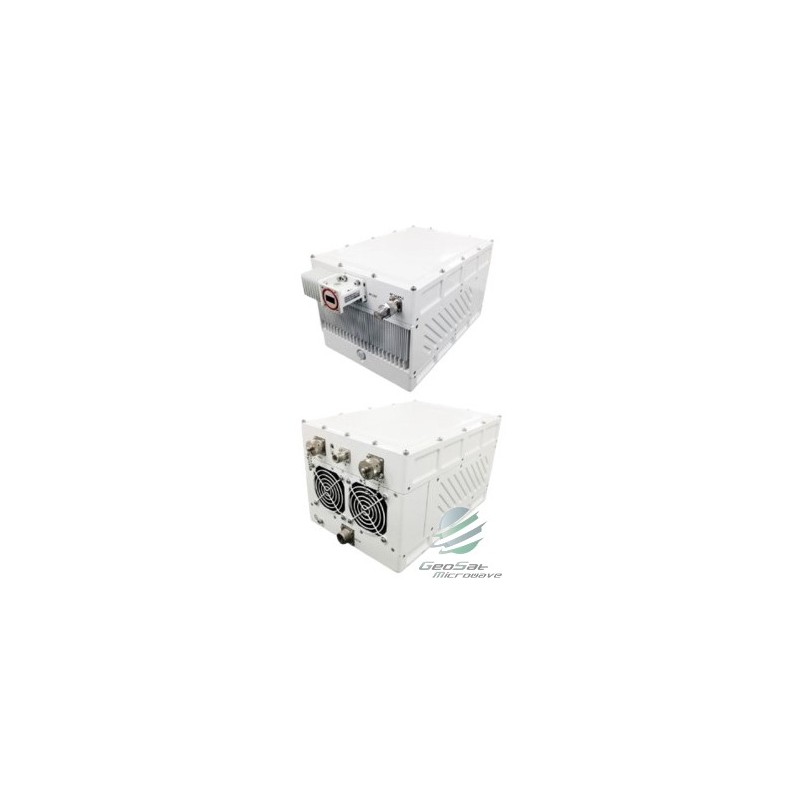

GeoSat 250W Ku-Band (14-14.5 GHz) Extended Block Up-Converter
GB250KUX
New
- Highly integrated RF technologies (RFIC and GaN)
- Designed for high volume production
- Linearity optimized for high order modulation and high data rate
- Strict quality control processes resulting in <0.25% field failure rates
Specifications:
|
KEY SPECIFICATIONS |
||
|
Section |
Item |
Specification |
|
RF Specifications |
RF Frequency |
13.75-14.50 GHz |
|
IF Frequency |
950-1700 MHz |
|
|
External Reference |
10 MHz, 0±5 dBm |
|
|
Output Power |
250W |
|
|
Rated/Saturated |
54 dBm |
|
|
Saturated PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: -25 dBc IMD3(MIL-STD-188-164B, two-carrier) |
53 dBm 52 dBm 51 dBm |
|
|
IMD3 (two carriers) @3 dB back-off from Rated |
-25 dBc |
|
|
Small Signal Gain |
75 dB |
|
|
Gain Adjustment Range |
55 to 75 dB (Step by 0.1 dB) |
|
|
Gain Variation |
1 dB p-p/ 36 MHz 3 dB p-p/ 500 MHz 4 dB p-p/ 750 MHz |
|
|
Gain Stability |
3 dB p-p max |
|
|
Receive band Noise density |
-156 dBm/Hz max. |
|
|
Phase Noise |
-65 dBc/Hz @100 Hz -75 dBc/Hz @1 KHz -85 dBc/Hz @10 KHz -95 dBc/Hz @100 KHz |
|
|
Output Spurious |
-60 dBc max |
|
|
Power Supply |
Input Power |
85 ~ 265 VAC, 47 ~ 63 Hz |
|
Power Consumption |
1250W (@ 53 dBm) 1450W (@ 54 dBm) |
|
|
Interface |
RF Output Connector |
WR75-G (Grooved) |
|
RF Output VSWR |
1.25:1 |
|
|
IF Input Connector |
N-Type Female |
|
|
IF Input VSWR |
1.5:1 |
|
|
Power Supply |
ACS02E-14S-7P |
|
|
M&C Connector |
PT02E-12-14P (RS485/RS232/Eth) SNMPv2 |
|
|
Redundancy Connector |
PT02E-12-19P |
|
|
Alarm Status Indicator |
LED (green/red) |
|
| Physical Parameters |
Size |
300*220*200 mm 11.8*8.6*7.8 Inch |
|
Weight |
13.5 kg 29.76 lbs |
|
|
Operating Temperature |
-40 to +60 ℃ |
|
|
Humidity |
0-100% (Condensing) |
|
|
Altitude |
0-10000 F ASL |
|
Download the Specification in PDF Format |
||
 |
GeoSat 250W Ku-Band (13.75-14.5 GHz) BUC Block Up-Converter GBS250KUX |
|
