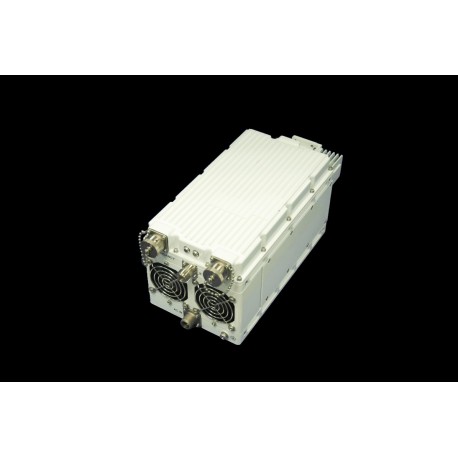

Geosat KU-Band 100W BUC
GBS100KUN3
New
- Input Freq. - 10.7 - 12.75 GHz
- Noise temperature - 1.0 dB max.
- L.O stability at -40 to +60℃ - +/-5, 10, 25 KHz max.
- Input waveguide flange - WR-75
- Power Supply - +12 to +24V DC
Specifications:
| Specifications | Parameters |
|
N-type Connector |
S: 950~1450 MHz, E: 950~1700 MHz |
|
WR75-G |
S: 14.00~14.50 GHz, E: 13.75~14.50 GHz |
|
ACS02E-14S-7P |
85 ~ 265 VAC,47~63Hz |
|
PT02E-12-14P |
RS-485、RS-232、Ethernet(Http) |
|
PT02E-14-19P |
RS-232 |
|
N-type Connector |
The output signal level is about: Pout-50 dB |
|
Green x1 |
Green LED on : Running normally Green LED flashing: BUC mute |
|
Red x1 |
Red LED flashing: PLL alarm Red LED on : Other alarm |
|
Download the Specification in PDF Format |
||
 |
Geosat KU-Band 100W BUC |
|
|
|
||
