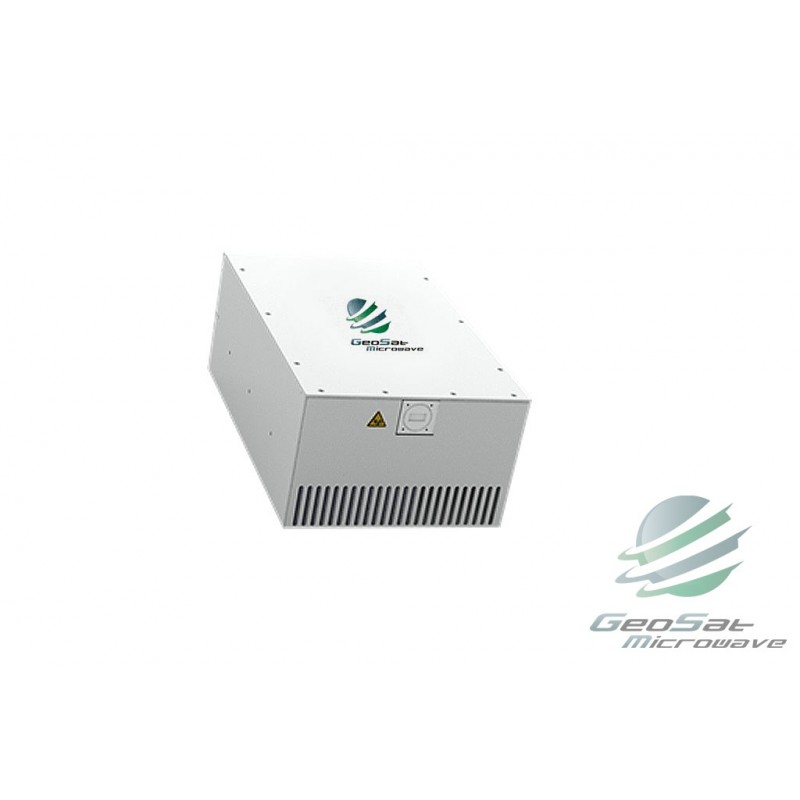

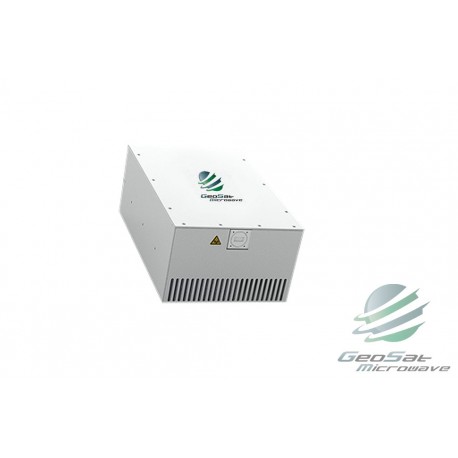

GeoSat 150W Ku-Band (14.00/13.75 ~ 14.5GHz) GaN Block Up-Converter (BUC) / SSPA
GBS150KU
New
• Extremely high power density - up to 200W Psat
• Powered by GaN Technology
• Phase noise 8-10dB better than IESS308/309
• Spurious below -60dB
• RF Overdrive Protection
• Switchable LO option - Standard / Extended
• Input and Output True RMS Power Detection
• Redundant Ready - no external controller required
• Antenna Mounting kit optional
• 3 Year GeoSat Product Warranty
Specifications:
| Section | Item | Specification | ||
| Power Requirement | Voltage | 90-265VAC 50-60Hz auto-ranging PFC | ||
| Power Consumption @ Rated Power | 1000W | |||
| Power Consumption @ 3dB Backoff | 600W | |||
| RF Characteristics | RF Frequency Range | 14-14.5GHz / 13.75-14.5GHz | ||
| IF Frequency Range | 950-1450MHz / 950-1700MHz | |||
| LO Frequency | 13.05GHz / 12.8GHz | |||
| Saturated Power | 52dBm typ | |||
| Linear Power | 48dBm min | |||
| Interface: | IF Input | N-Female | ||
| Reference Input | WR75 grooved | |||
| RF Sample | N-type female | |||
| M&C -Serial, Analog and Ethernet | MS3112E14-19S | |||
| Redundant Interface | MS3112E14-19P | |||
| AC Power In | MS3112E12-3P | |||
| External Reference: | Frequency | 10MHz multiplexed with IF In | ||
| External Ref. Required Phase Noise | -130dBc/Hz @ 100Hz | -140dBc/Hz @ 1kHz | ||
| -150dBc/Hz @ 10kHz | -155dBc/Hz @ 100 kHz | |||
| Transfer Characteristics | Type | Single Conversion; non-inverting | ||
| Frequency Sense | Non-inversion | |||
| Gain | 75dB min, 77dB typ | |||
| Gain Flatness ▼ | ||||
| Typical | +/-1dB | |||
| Over RF Output band: | +/-1.5dB | |||
| Over any 40 MHz segment | +/-0.5dB max | |||
| Gain Adjustment Range | 20dB min dynamic range | |||
| Gain Stability Over Input Power | 3dB typ 4dB max from 10dB back off to rated power | |||
| Gain Stability Over Temperature | +/-1.5dB over full temperature range | |||
| Output Spurious ▼ | ||||
| -60 dBc Non-Signal Related | ||||
| -55 dBc Signal Related | ||||
| Linearity: 2 tone IMD Spectral Re-growth | -24dBc at P linear / -30dBc for QPSK at 1.5x symbol rate at Plinear+1dB | |||
| Up-Converter Phase Noise ▼ | ||||
| 100Hz | -68 dBc/Hz max. | |||
| 1kHz | -80 dBc/Hz max. | |||
| 10kHz | -90 dBc/Hz max. | |||
| 100kHz | -95 dBc/Hz max. | |||
| 1mHz | -115 dBc/Hz max. | |||
| Noise Power Density ▼ | ||||
| -85dBm/Hz maxTransmit Band | ||||
| -148dBm/Hz max Receive Band | ||||
| Environmental | Operating Temperature Range | -40°C to +55°C | ||
| Humidity | Up to 100% condensing | |||
| Physical | Size | (LxWxH): 15.5 "x10"x6.3" | ||
| Weight | 28lbs | |||
| Cooling | Forced Air | |||
| Download the Specification in PDF Format | ||
 |
150W Ku-Band GaN Block Up-Converter (BUC) / GBS150KU Specsheet |
|
