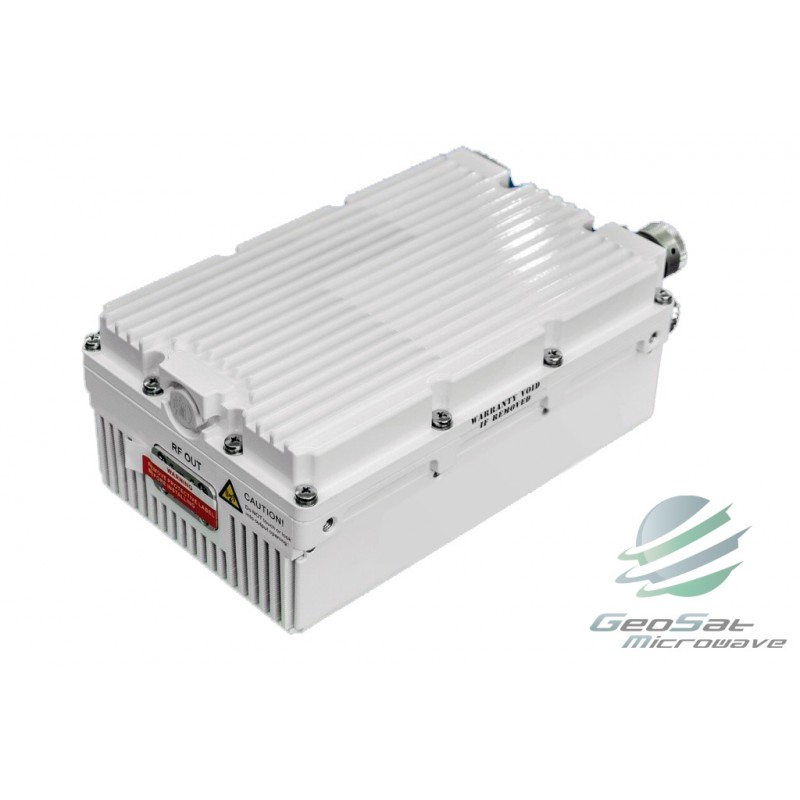

GeoSat 3W Ku-Band (14.0 ~ 14.5GHz) BUC Block Up-Converter | Model: GB34SKU1N View larger

GeoSat 3W Ku-Band (14.0 ~ 14.5GHz) BUC Block Up-Converter | Model: GB34SKU1N

GB34SKU1N

New

•  High Output, Low Power Consumption
•  GAN HEMTs results in best in class MTBF
•  Outdoor, Compact, Lightweight Design
•  Designed to Meet ETSI & FCC Standards
•  RoHS Compliant
•  3 Year GeoSat Product Warranty

More details

Specifications:

Section

Item

Specification



Power Requirement

Voltage

+18 to +36 VDC (+24 VDC nominal), +48 VDC (Optional)

Power Consumption

50 W @Rated Output Power / 40 W @Linear Output Power



Input Characteristics

Frequency Range

950 - 1950 MHz, 1000 - 2000 MHz (Optional) 950 - 1450 MHz

RF Connector / VSWR

Type N Female / 1.5: 1



Output Characteristics

Frequency Range

29 - 30 GHz, 30 - 31 GHz, 29.5 - 30 GHz

Saturated / Rated / Linear  Power

≥34.8 dBm  / 34.8 dBm / 31.8 dBm

Output Spurious

-55 dBc (Max)

RF Connector / VSWR

WR28-G (Grooved) / 1.25: 1



Transfer Characteristics

External Reference Frequency

10 MHz, 0 ± 5 dBm

Gain Variation

1 dB p-p/36 MHz, 3 dB p-p/500 MHz, 4 dB p-p/1000 MHz

Gain Stability

±1.5 dB

Gain Adjustment Range 20 dB (Step: 1 dB)
Small Signal Gain 65 dB(Nominal)
IMD3 at Linear Output Power -25 dBc

Phase Noise ▼



100Hz

< -60dBc / Hz



1kHz

< -70dBc / Hz



10kHz

< -80dBc / Hz



100kHz

< -90dBc / Hz


  Power Supply Connector ACS02E10SL-4P
  Monitor & Control Connector PT02E-12-10P, RS-485 & RS-232 / Ethernet & RS-232 (Optional)



LED Indicators

Red and Yellow



Mechanical

Dimension (mm)

206*136*88 mm

Weight

≤3.5 Kg

Humidity / Altitude

0 - 100% (Condensing) / 0 - 3000 m ASL


  Operating Temperature 40℃ ~ + 70℃



-



Download the Specification in PDF Format

3W Ku-Band Block Up-Converter (BUC) GB34SKU1N Datasheet
