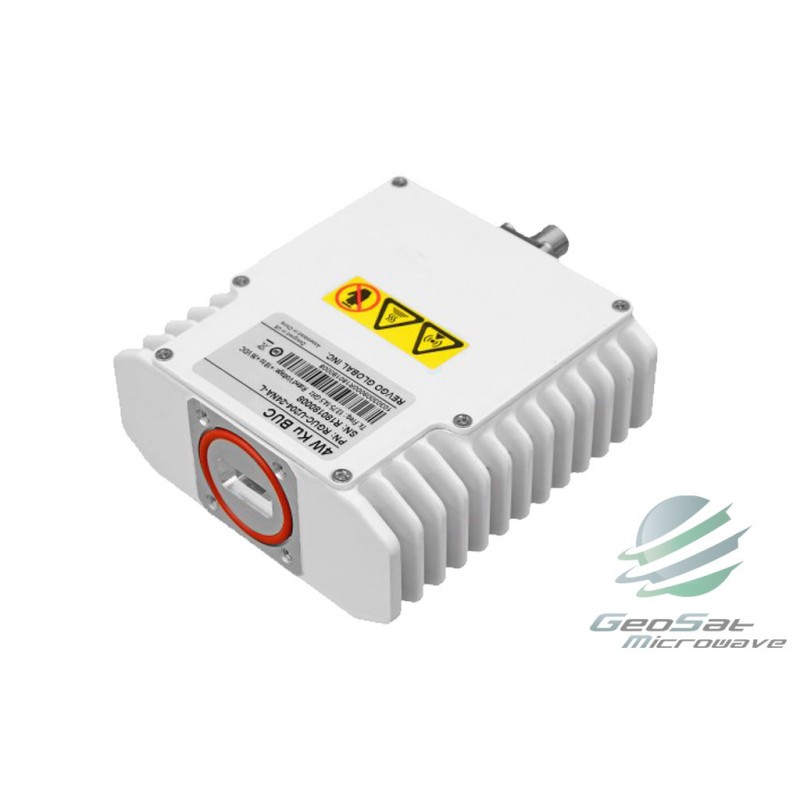

GeoSat 4W Ku-Band (13.75-14.5 GHz) BUC Block Up-Converter F-Connector
GBE4KUF
New
• Low power consumption
• Higher reliability from integrated design principle
• Performing well at wide temperature range
• Compact size and light weight
• Meet ETSI, FCC Standards Features
• 3 Year GeoSat Product Warranty
Specifications:
|
Section |
Item |
Specification |
||
|
|
Power Requirement |
RF Frequency |
13.75-14.5 GHz |
|
|
IF Frequency |
950-1700 MHz |
|||
|
|
Input Characteristics |
External Reference |
10 MHz, 0±5 dBm |
|
|
Saturated Output Power |
≥ 36.5 dBm |
|||
|
Rated Output Power |
36 dBm |
|||
|
IMD3 @3dB back-off from Rated Output Power |
≤ -25 dBc |
|||
|
|
Output Characteristics |
Small Signal Gain |
57 dB |
|
|
Gain Variation |
1 dB p-p/ 36 MHz |
|||
|
Gain Stability |
±2 dB |
|||
|
Receive Band Noise Density |
≤ -144 dBm/Hz |
|||
|
|
Transfer Characteristics |
Phase Noise （IES-308/309） |
≤ -60 dBc/Hz @100 Hz |
|
|
Output Spurious |
≤ -55 dBc |
|||
|
Power Supply |
+18 to +36 VDC, via IF port |
|||
|
Power Supply Draw @Rated Output Power |
30W |
|||
|
RF Output Connector |
WR75-G (Grooved) |
|||
|
RF Output VSWR |
2:1 |
|||
|
IF Input Connector |
F-Type Female |
|||
|
IF Input VSWR |
2:1 |
|||
|
Size |
97*96.5*42 mm |
|||
|
Weight |
0.5 Kg |
|||
|
|
Operating Temperature |
-40 to +60 ℃ |
||
|
Humidity |
0-100% (Condensing) |
|||
|
Altitude |
0-10000 F ASL |
|||
|
Download the Specification in PDF Format |
||
 |
GeoSat 4W Ku-Band BUC Block Up-Converter F-Connector |
|
