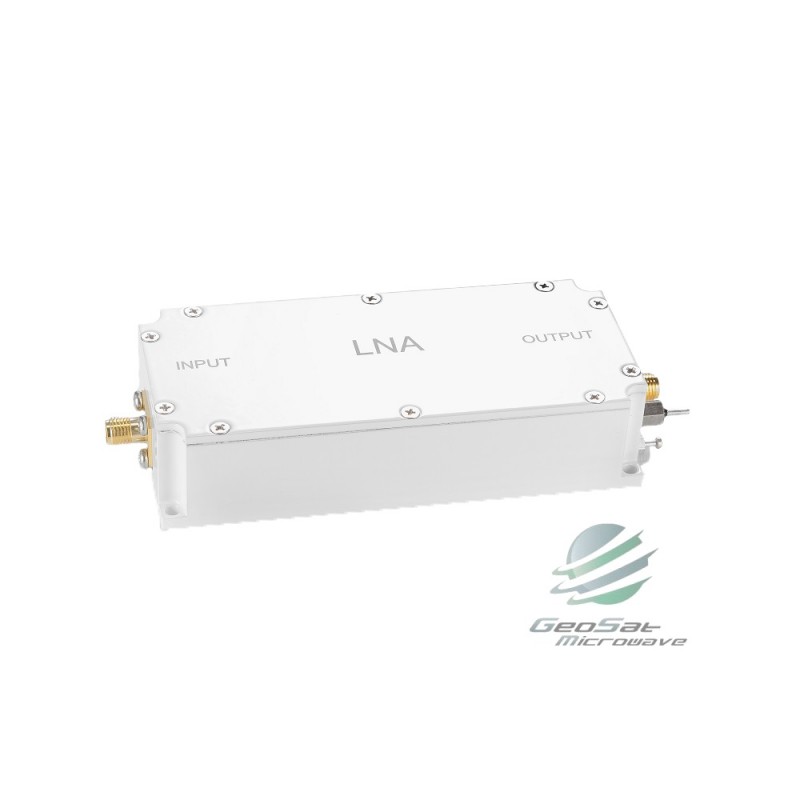

Geosat Low Noise Amplifiers L-Band 1150-1600 series (LNA) View larger

Geosat Low Noise Amplifiers L-Band 1150-1600 MHz series (LNA)

GLAL1150

New

  • Input Freq. - 1150-1650 MHz
  • Input waveguide flange - MS3112E10-6P (option)
  • Power Supply - +12 to +24V DC

More details

Specifications:

Parameter Specification
Frequency range 1150 - 1650 MHz
Noise temperature 45’K max.
Conversion gain at -40 to +60 60 dB typ. (55 dB min. 65dB max.)
Gain flatness 2 dBp-p max.
Gain flatness at -40 to +60 2 dBp-p max.
Output P1dB +10 dBm min.
Input VSWR 1.8 : 1 max
Output VSWR 1.8 : 1 max
Input connector N, SMA-type female (option)
Output connector F, N, SMA-type female (option)
Power connector MS3112E10-6P (option)
Power supply +12 to +24V DC
Required current 300 mA max
Operating temperature -40 to +60℃
Dimension (exclude connector) 100.0 x 45.0 x 22.6 mm
Weight 250 g


Download the Specification in PDF Format

Low Noise Amplifiers L-Band 1150-1650 (LNA) GLAL1150 Specsheet
