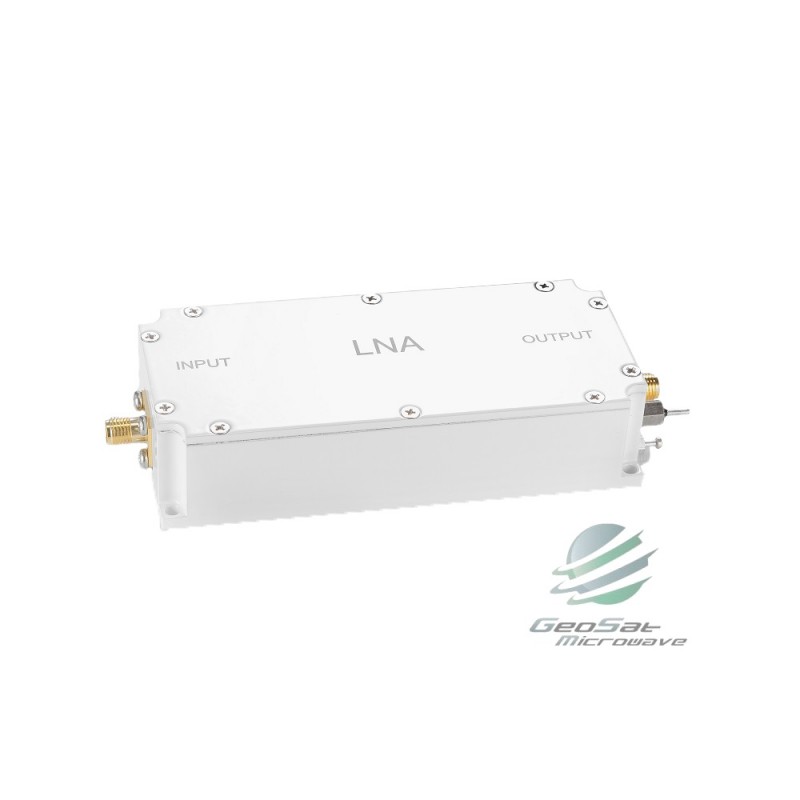

Geosat Low Noise Amplifiers L-Band 2100-2500 MHz series (LNA)
GLAL2100
New
- Input Freq. - 2100-2500 MHz
- Input waveguide flange - MS3112E10-6P (option)
- Power Supply - +12 to +24V DC
Specifications:
| Parameter | Specification | |
| Frequency range | 2100 - 2500 MHz | |
| Noise temperature | 45’K max. | |
| Conversion gain at -40 to +60℃ | 60 dB typ. (55 dB min. 65dB max.) | |
| Gain flatness | 2 dBp-p max. | |
| Gain flatness at -40 to +60℃ | 2 dBp-p max. | |
| Output P1dB | +10 dBm min. | |
| Input VSWR | 1.8 : 1 max | |
| Output VSWR | 1.8 : 1 max | |
| Input connector | N, SMA-type female (option) | |
| Output connector | F, N, SMA-type female (option) | |
| Power connector | MS3112E10-6P (option) | |
| Power supply | +12 to +24V DC | |
| Required current | 300 mA max | |
| Operating temperature | -40 to +60℃ | |
| Dimension (exclude connector) | 100.0 x 45.0 x 22.6 mm | |
| Weight | 250 g | |
|
Download the Specification in PDF Format |
||
 |
Low Noise Amplifiers L-Band 2100-2500 (LNA) GLAL2100 Specsheet |
|
