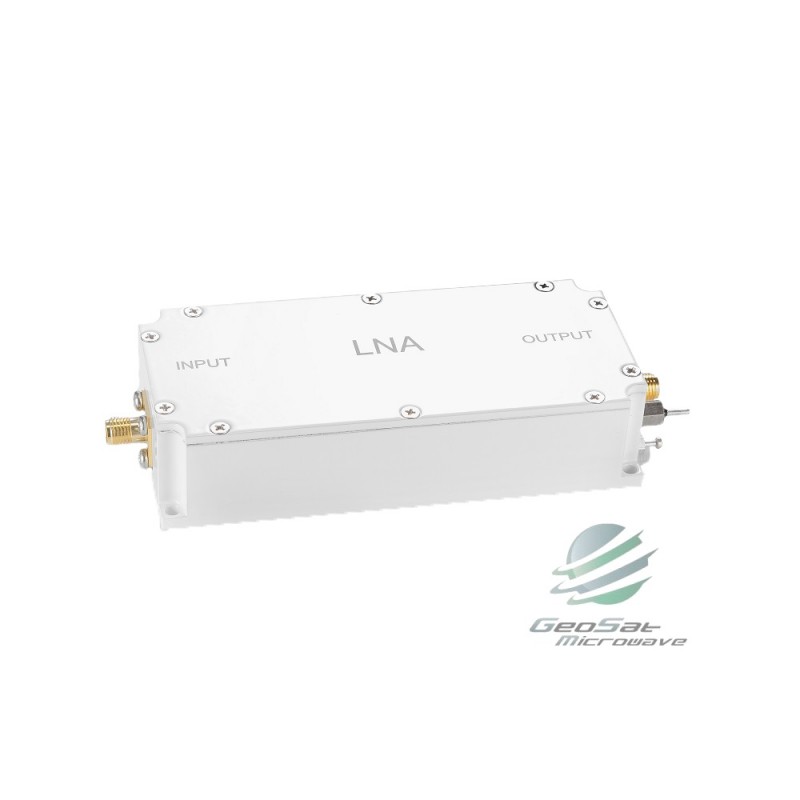

Geosat Low Noise Amplifiers L-Band 1000-6000 MHz series (LNA)
GLAL1000
New
- Input Freq. - 1000-6000 MHz
- Input waveguide flange - Pin thru connector
- Power Supply - +12 to +24V DC
Specifications:
| Parameter | Specification | |
| Frequency range | 1000 - 6000 MHz | |
| Noise figure | 1.8 dB max | |
| Conversion gain at -40 to +60℃ | 40 dB min. 45dB max. | |
| Gain flatness | 5 dBp-p max. | |
| Gain flatness at -40 to +60℃ | 5 dBp-p max. | |
| Output P1dB | +10 dBm min. | |
| Input VSWR | 2.5 : 1 max | |
| Output VSWR | 2.5 : 1 max | |
| Input connector | SMA, N-type female (option) | |
| Output connector | F, N, SMA-type female (option) | |
| Power connector | Pin thru connector | |
| Power supply | +12 to +24V DC | |
| Required current | 250 mA max | |
| Operating temperature | -40 to +60℃ | |
| Dimension (exclude connector) | 100.0 x 45.0 x 22.6 mm | |
| Weight | 250 g | |
|
Download the Specification in PDF Format |
||
 |
Low Noise Amplifiers L-Band 1000-6000 (LNA) GLAL1000 Specsheet |
|
