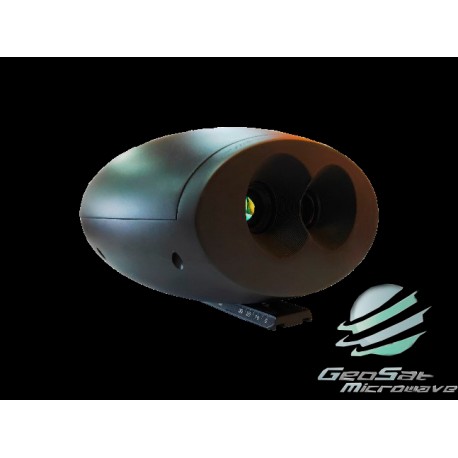

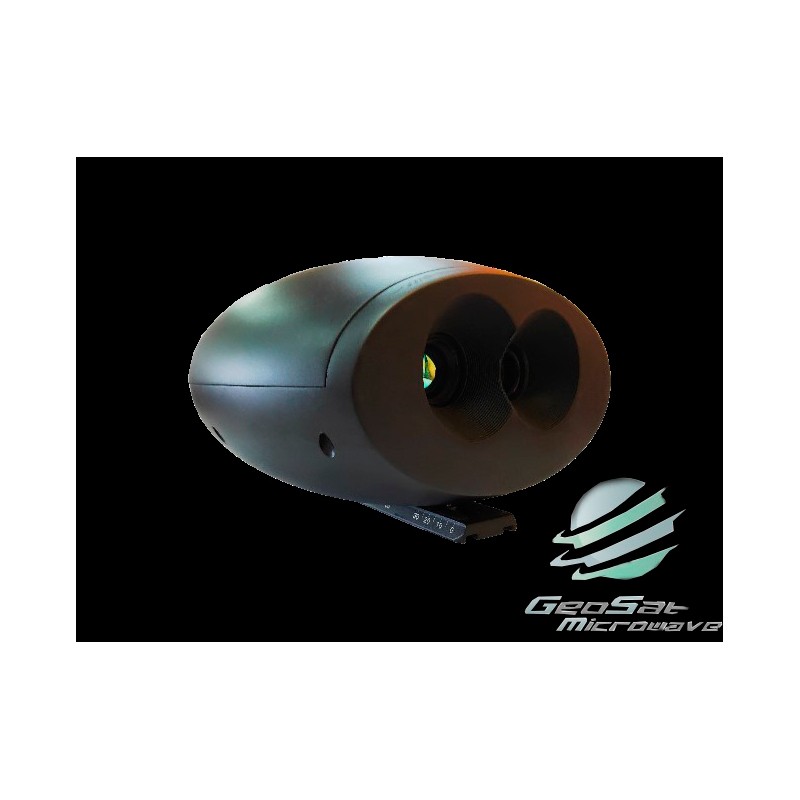

Geosat TempAlert Ultimate View larger

Geosat TempAlert Ultimate

TempAlert Ultimate

New

  • Thermal and optical Bi-spectrum with facial recognition;
  • Built-in high accurace thermal infrared module, temperature detection range 35C-42C, Precision +- 0.3C;
  • Face Detection speed: <300ms;
  • Face Capacity: Max. 50,000 face storage;
  • Resolution 1920 x 1080P (highest in its class);
  • 8 inch LCD screen, 2MP wide-angle dual lens;

More details

Specifications:

Therrmal Module



Image Sensor

Uncooled infrared focal plane detector



Max. Resolution

640×480



Pixel Interval

17μm



Response Waveband

8 μm to 14 μm



Frame Rate 60Hz



NETD (Noise Equivalent Temperature Difference)

≤ 50 mk (@25 °C)



Lens (Focal Length)

25mm



Field of View

32°×24° (H × V)



Aperture

F 1.0

Optical Module



Max. Image Resolution

1920×1080



Image Sensor

1/2.7" Progressive Scan CMOS



Min. Illumination

Color: 0.045 Lux



Lens (Focal Length)

9-22mm(Manual Focusing)



Field of View 16-38°(diagonal)



Signal to Noise Ratio

39 dB

Image Function



Bi-spectrum Image Fusion

Dual-Spectrum Fusion to determine Temperature Measurement Position



Picture in Picture

Visible and Infrared Light Images are Displayed Left and Right

Smart Function



Temperature Measurement

Face Rapture, Smart Forehead Temperature Measurement



Temperature Range

30°C to +45 °C



Temperature Accuracy

±0.2



Face Detection with Mask

Rate 98%



Face Recognition Rate 90%

Video Output



Main Stream

Visible Light: 50Hz: 25fps (1920 × 1080)



Visible Light: 60Hz: 30fps (1920 × 1080)



Thermal: 1280 × 720



Video Compression

H.264/MJPEG



Protocols Optical: USB 2.0-OTG
Thermal: RTSP



Simultaneous Live View

Up to 20

Integration



Alarm Input

Over-temperature Alarm



Alarm Output

Manually Calibrated



Alarm Action

Audio Alarm(Extensible)



SD Memory Card

Hard Disk Storage



Client Temp Alert

General



Menu language

6 languages

English, Russian, Arabic, German, Spanish, Simplified Chinese



Power

Optical: 12 VDC ± 20%

Thermal: 5VDC USB Power



Power Consumption

Optical: up to 15W

Thermal: up to 2W



Working Temperature/Humidity

Temperature: 0 °C to 40 °CIndoor and windless environment use only

Humidity: 95% or less



Dimensions 400mm × 300mm × 200mm (L × W× H)



Weight

Approx. 2.55 kg



Thread Connection

1/4 Thread Connection

Running Computer (Minimum Configuration)



Operating System

Windows10



Processor

Intel i5-6260U



SSD

480G SSD



RAM

8G DDR4



GPU Intel UHD Graphics 630



Network

1000Mbps



USB

USB3.0×4 USB2.0×2

Download the Specification in PDF Format

Geosat TempAlert Ultimate Specsheet
