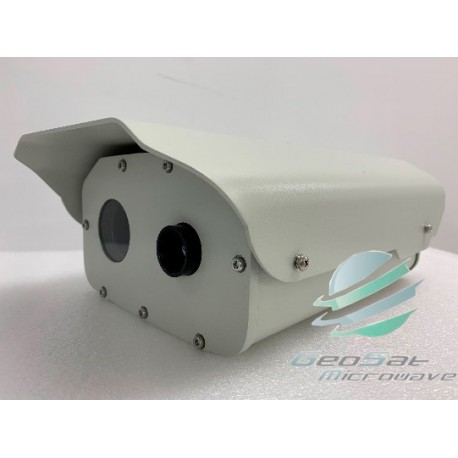

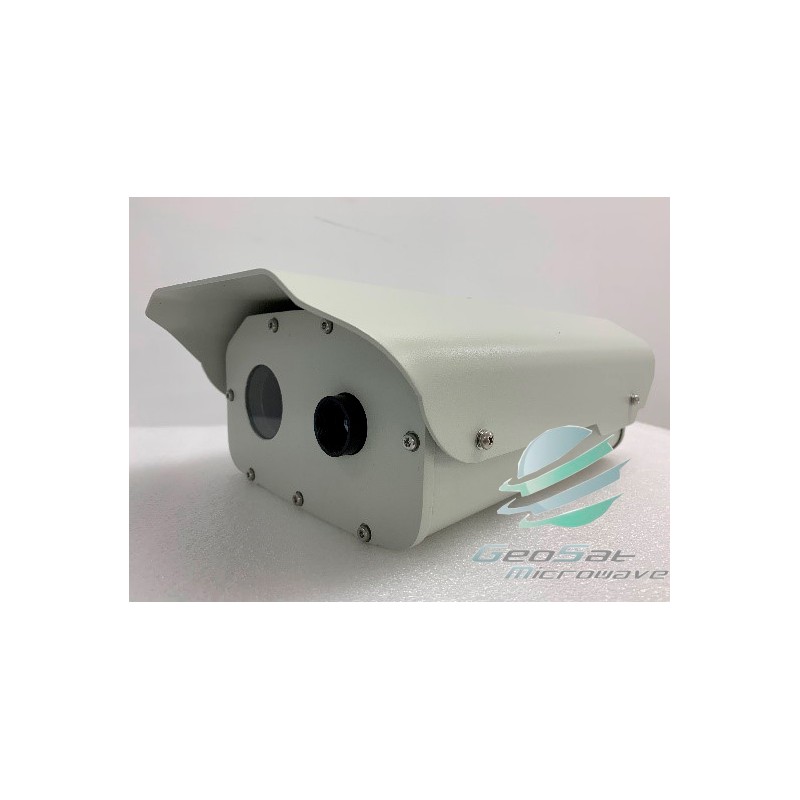

Geosat TempAlert Supreme
TempAlert Supreme
New
- Security: non-contact measurement, reduce the risk of cross infection
- Efficient: Detect multiple people at the same time less than 1 second, up to 5M.
- Accuracy: Error less than ± 0.3 ℃
- Stability: Automatic temperature calibration function, good temperature stability
- Intelligent Alarm: Support temperature threshold setting and automatic screening warning mechanism, real-time alarm.
Specifications:
|
System Performance |
|||
|
|
Temperature measurement range |
30°C ~ 45°C; |
|
|
|
Temperature measurement error |
± 0.3°C; |
|
|
|
Temperature measurement display |
temperature display of the highest temperature point in the scene |
|
|
|
Temperature calibration |
correction mark prompt |
|
|
|
Interface |
one-channel of RJ45 - 10m / 100M / 1000m adaptive Ethernet port. Expandable RS-485 / RS422 / RS232; expandable alarm output |
|
|
|
Storage |
built in micro SD card slot, supporting micro SD / SDHC / SDXC card (up to 128G), supporting manual recording / alarm recording; |
|
|
|
Network protocol |
support HTTP; TCP; RTSP; RTP; UDP; RTCP; support onvif 28181 protocol |
|
|
|
Web access |
support web full function configuration |
|
|
|
Video compression standards |
H.265, H.264, mjepg |
|
|
|
Audio compression standard |
G.711 |
|
|
|
Mobile detection |
support video blocking and mobile detection alarm |
|
|
|
Power supply mode |
DC12V |
|
|
|
Power consumption |
≤ 5W |
|
|
|
Weight |
< 2kg |
|
|
|
Boundary dimension |
335mm × 195mm × 116mm (L x W x H); |
|
|
|
Installation mode |
wall mounting / column mounting / tripod |
|
|
Thermal Detector |
|||
|
|
Detector type |
uncooled vanadium oxide focal plane detector |
|
|
|
Detector pixel |
384 x 288 |
|
|
|
Spectral range |
8 μm ~ 14 μm |
|
|
|
Detector frame rate |
50Hz |
|
|
|
Sensitivity (NETD) |
≤ 50mk @ 25°C, f × 1.0 |
|
|
|
Lens focal length |
13 mm, non thermal lens |
|
|
|
Proximity |
2.0m |
|
|
|
Image enhancement |
DDE digital detail enhancement, 3D digital noise reduction, accurate blind element elimination, no bright spots and dark spots in the field of view |
|
|
|
Gain control |
H.265, H.264, mjepg |
|
|
|
Nonuniformity correction |
automatic / manual |
|
|
|
Image |
left / right / up / down / diagonal |
|
|
|
Electronic zoom |
1.0 ~ 8.0 × continuous zoom (step size 0.1), Eagle drawing display in digital zoom drawing |
|
|
|
False color |
support white heat and black heat, support 16 kinds of adjustable pseudo color |
|
|
|
Life cycle management |
movement health index recording function (working time, shutter times, limit temperature) |
|
|
Environmental Adaptive |
|||
|
|
Working temperature |
- 20°C ~ 50°C |
|
|
|
Working humidity |
≤ 95% |
|
|
|
Protection grade |
IP66, TVs 2000V lightning protection, surge protection and surge protection |
|
|
Setting |
|||
|
It mainly includes 1 temperature measuring thermal imager, 1 temperature measuring management software, 1 power adapter, 1 control computer (optional), 1 tripod (optional) and accessory installation accessories. |
|||
|
Download the Specification in PDF Format |
||
 |
Geosat TempAlert Supreme Specsheet |
|
| |
||
