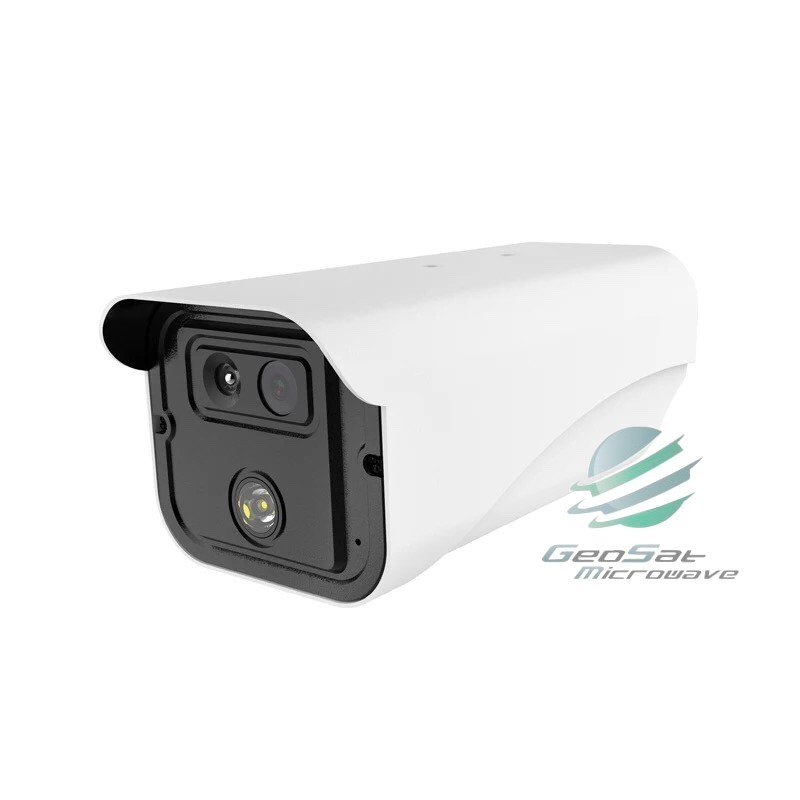

Geosat TempAlert Plus
TempAlert Plus
New
- Up to 3M measuring distance
- High Sensitiity thermal module with 256 x 192 resolution;
- Leading thermal image processing technology, Adaptive AGC, DDE, 3D DNR;
- Reliable Temperature-anomaly alarm;
Specifications:
|
Therrmal |
|||
|
|
Image Sensor |
VOx Uncooled Focal Plane Arrays |
|
|
|
Resolution |
256×192 |
|
|
|
Pixel Interval |
1μm |
|
|
|
NETB |
Less than 600mK (@25°C, F#=1,1) |
|
|
|
Aperture | F1.0 | |
|
|
Field of View |
32°×24° (H × V) |
|
|
Optical Module |
|||
| Image Sensor |
1/2.8" 2.0M Pixel CMOS |
||
|
|
Resolution |
1920×1080P |
|
|
|
Min. Illumination |
Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.001 LUX @ (F1.2, AGC ON) |
|
|
|
Field of View |
84° x 45° (H x V) |
|
| Focal Length |
4mm |
||
|
|
Shutter Speed | 1s to 1/100,000s | |
|
|
White Balance |
Auto/Manual/ATW ( Auto-tracking White Balance)/ Indoor/Outdoor/Daylight Lamp/Sodium Lamp |
|
|
Day & Night |
ModelR cut filter with auto switch |
||
|
WDR |
80 dB | ||
|
Feature |
|||
|
|
Bi-spectrum Image Fusion |
Fusion viw of thermal viem and overloaid details of the optical channel |
|
|
|
Picture in Picture |
Combines details of thermal and optical image PIP, Overlay thermal image on optical image |
|
|
Smart Function |
|||
|
|
Face snapping |
Buily-in deep learning AL algorithm, Supports simultaneous detection of 20-30 faces |
|
|
|
Temperature Measurement |
Support global and local temperature |
|
|
|
Temperature Range |
From -15°C to +150°C |
|
|
|
Temperature Accuracy |
Target temperature 35°C ^ 38°C ± 0.3 °C |
|
|
Network |
|||
|
|
Main Stream |
Thermal: 25fps(1920 x 1080, 1280 x 720) |
|
|
|
Sub Stream |
Thermal: 25fps(704 x 576, 352 x 288) |
|
|
|
Video Compression |
H. 264 ( Baseline/Main/High Profile) / MJPEG/H.265 |
|
|
|
Audio Compression |
G. 711u/G.711a/G.722.1/MP2L2/G.726/PCM |
|
|
|
Protocols | TCP/IP, ONVIF, GB/T 28181, DHCP, RTP, RTSP, PPPoE, UPnP, UDP | |
| API | ONVIF (Profile S, Profile G, Profile T), SDK | ||
|
General |
|||
|
|
Web Client Language |
languages English, Chinese |
|
|
|
Power |
DC 12V, 0.65A |
|
|
|
Working Temperature/Humidity |
From -20°C to 55°; Humidity: 95% or Less |
|
|
|
Protected Level |
IP67 |
|
|
|
Dimensions | 246mm x 101mm x 81mm (with bracket) | |
|
|
Weight |
Approx. 1.0 kg |
|
|
Download the Specification in PDF Format |
||
 |
Geosat TempAlert Plus Specsheet |
|
| |
||
