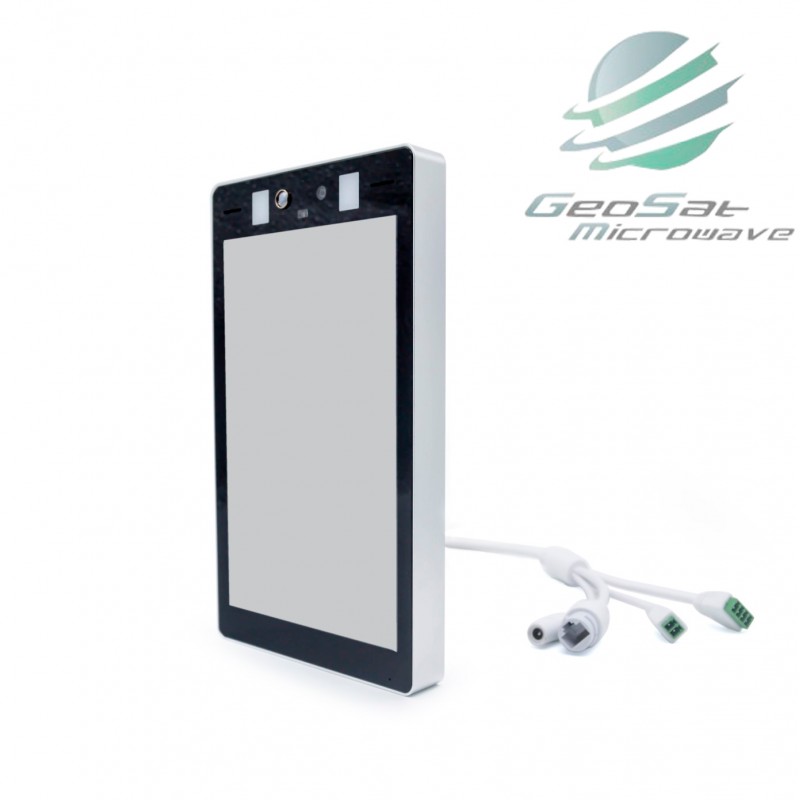

Geosat TempAlert Pad View larger

Geosat TempAlert Pad

TempAlert Pad

New

  • Thermal and optical Bi-spectrum with facial recognition;
  • Built-in high accurace thermal infrared module, temperature detection range 35C-42C, Precision +- 0.3C;
  • Face Detection speed: <300ms;
  • Face Capacity: Max. 50,000 face storage;
  • Resolution 1920 x 1080P (highest in its class);
  • 8 inch LCD screen, 2MP wide-angle dual lens;

More details

Specifications:

2MP Face recognize+temperature detection  8inch smart camera



Model

TempAlert Pad



Display

8inch LCD



Sensor

Thermal imaging infrared temperature sensor



Temperature measurement

Range:35~42℃

Precision: ±0.3℃



Detect distance 0.4m~0.7m



Lens

focal length 1.8mm, Field of View:118°



Mini illum

0.005Lux@F1.2 color mode



Dynamic Range

≥120dB



S/N Ratio

≥46dB(AGC OFF)



Exposure mode

Program mode (customizable shutter interval), shutter mode(1/5 - 1/20,000s)support for slow shutter



White balance

Auto, indoor, outdoor, sodium lamp mode, manual



Digital noise reduction

Support DNR,3DNR



Day and night mode Fixed color



Video compression

H.265 Main Profile / H.264 High profile / M-JPEG



Max resolution

1920x1080@30fps



Main stream

1920x1080,1280x960,1280x720,720x576



Substream

640x480,352x288,320x240,176x144



MJPEG

1920x1080,1280x720,closed



Output bit rate

(CBR or VBR), Bitstream setting range:32Kbps~10Mbps



Audio compression

G711,PCM



Character overlay Support channel name, date and time overlay, adjustable overlay position;



Number of face bases

50,000 sheets



Recognition speed ≤300ms



Live detection

support



Mask detection

support



Body temperature alarm

support



power

DC12V



network

1ch10/100BaseT Ethernet RJ45 interface



Wiegand 1ch Wiegand output interface



Switch

1ch relay output



SD card

Up to 128G



MIC

Built-in



Audio Built-in 2ch audio output



Working Humidity

-10°C ~50°C



Working Humidity

0%-90% RH



Power Consumption

5W



size

215x125x20mm



weight

<1kg

Download the Specification in PDF Format

Geosat TempAlert Pad Specsheet
