GeoSat Microwave Titaneous Intelligent Multi Spectrum Thermal Imaging Camera View larger

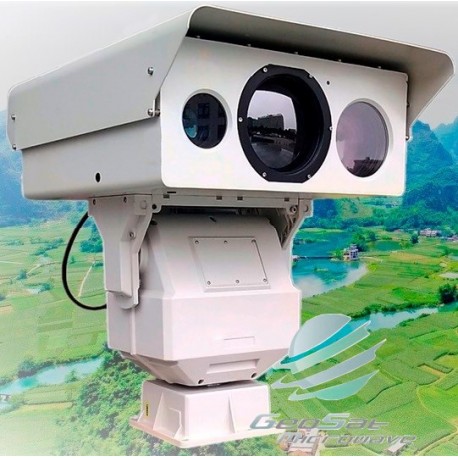

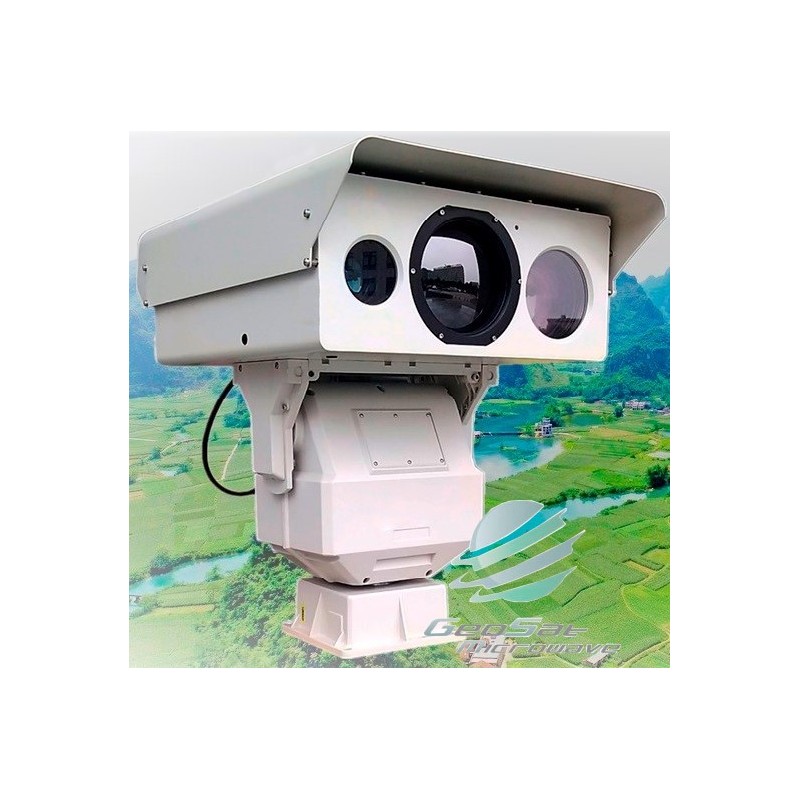

GeoSat Microwave Titaneous Intelligent Multi Spectrum Thermal Imaging Camera

GSM0734T

New

  • Seaport and airport monitoring;
  • River, lake and other water system monitoring;
  • Key material monitoring;
  • Military base security monitoring;
  • Oilfield & oil depot security;
  • Forest, grassland, coal mine, granary and other fire source prevention & monitoring,
  • Ecological and environmental monitoring;
  • Border and coastal defense monitoring;
  • Urban high-altitude and anti-UAV applications.

More details

Specifications:

Model

GSM0734T

Detection

Vehicle: 6500m

Human: 2500m

Fire-Point

3000m (@2 x 2m)

Identification

Vehicle: 1800m

Human: 700m

Thermal Camera

Sensor

5th generation FPA VOx Detector

Resolution

384 × 288 pixel

Spectral range

7.5~14μm

NETD

50mK (@25℃ F1.0)

Focal length

25 - 75mm

Field of view(horizontal)

14.8° × 11° - 4.9° × 3.7°

Lens Control

1. Zooming: Electrical Zoom.

2. Focusing: Manual/Auto Focus (3A adaptive active focusing algorithm, supports multiple trigger modes with high precision and speed).

3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, smaller axis.

Image Processing

1. Image enhancement: SDE digital image processing.

2. Pseudo colour polarity: 16 pseudo color and B/W, B/W conversion.

3. Image parameter: AGC automatic gain control, brightness and contrast.

4. Digital zoom: 2X, 4X digital amplification.

5. NUC Correction: Auto/Manual correction, background correction.

Thermal Point Detection & Alert

1. Alarm threshold: 255 level can be set.

2. Target size: target range can be set to identify targets of different sizes automatically.

3. Number of alert targets: 1-16 can be set, automatically select the most prominent target display.

4. Alarm mode: Video overlay alarm frame + switch volume (or data return) multiple alarm mode, intuitive and easy to read.

5. Front-end algorithm: Optimized fast front-end processing algorithm, based on the analysis of the original heat map data per frame, alarm response 0.1S, no delay, no information loss.

6. Remote Parameter Adjustment: All alarm parameters and instructions can be set remotely through the video OSD menu, with strong versatility.

7. Secondary development: providing free SDK, easy to use or convenient for secondary development.

8. Dedicated platform: (Select of dedicated fire prevention pre-warning platform, with automatic scanning, warning, GIS positioning, fire dynamic evolution, fire rescue strategy and other functions, to form a professional system)

Visible Camera

Detection

2000m - 5000m

Identification

500m - 1500m

Camera



1. Surface: 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch;

2. Resolution: 2 Mega pixels, 1920 x 1080

3. Illumination: 0.05Lux high sensitive colour, 0.01Lux black and white;

4. Encoding: H.265/H.264 video format, supporting multi-stream;

5. Video Bit Rate: 32Kbps-16Mbps, 60Hz 30 frames/second

6. Support SD card local storage, support regional invasion, cross-border invasion, face detection, audio anomaly detection, alarm linkage;

Supports AFR fog penetration, electronic anti-shake, strong light suppression, 3D digital noise reduction, anti-infrared overexposure, ABF automatic rear focus adjustment function

Lens

1. Focal Length: 8 - 320mm, 210 mil electrical focus;

2. HD infrared correction: Optical IR correction design, diurnal focus;

3. Auto aperture: support;

4. Night-day wide spectrum: 0.4-0.75um visible broad spectrum window and 0.8-0.95um NIR narrow spectrum window with day-night independent double-pass window to improve the signal-to-noise ratio of imaging light and stray light.

Preset position: precision potentiometer, DC5V, zoom focusing feedback.

Laser Illumination

Identification

500m - 1000m

Laser Light Source

1. Consumption: 10W;

2. Wavelength: 810nm;

3. Laser angle: 1°~20°;

4. Encapsulation: the illuminator is sealed with inert gas to prevent oxidation;

Using distributed laser design, laser emitter and high-temperature components are directly affixed to the shell’s cooling fins, that have stronger heat dissipation capability if compared with the modular laser.

Laser Len

1. Lens form: 25X f0.8 - 20mm ultra-short focal zoom patented technology, laser 400 micron cross-section imaging lens;

2. Transmittance: multi-layer NIR Anti-reflective coating, high efficiency laser coupling;

3. Homogenization: GHT-II super homogenization HD illumination patented technology, full focus spot brightness equilibrium is > 92%;

4. Laser Safety: Using ZQB safety laser beam processing patented technology, which complying with International IEC60825 Safety Standard;

5.  Focus Angle Positioning: Precision digital drive positioning.

Spot form: (Optional: elliptical spot illuminator - the spot always keeps elliptic in the process of change, better matching with 16:9 HD camera picture, where the laser utilization rate increased by 30%)

Angle and distance matching

1. Matching method: Automatic tracking or manually fine-tuning intelligent matching method;

2. Synchronization control: DSS digital stepping illumination angle control technology, 0.1 degree precise servo control;

3. Response time: Z-super laser angle and imaging ratio matching algorithm, tracking response time less than 500 ms;

4. Synchronization effect: Laser synchronization effect adjusts the modes of cut-in, cut-out and full-screen coverage, which can be set arbitrarily according to the scene remotely.

Optical axis alignment: SLM double optical axis self-locking alignment device, the accuracy can reach 0.01 degrees, reserve external alignment window, without cover removal maintenance

Laser Switch

1. Control mode: Mandatory opening, mandatory closing and photosensitive automatic control, can be set remotely.

2. Photosensitive synchronous control: independent photosensitive control circuit, precise synchronous switching of laser switch and camera into day-night mode.

3. Data Processing: Built-in Intelligent Anti-Strong Light Jamming Algorithms, Shielding the False Switches Caused by Strong Light at Night

Housing

1. Materialaluminum alloy housingwaterproof;

2. StructureIntegral Dual windows design;

3. 4mm microcrytalline infrared high-effective anti-reflection HLIN optical glass, transmittance >98%;

4. SurfacePTA coating, anti sea water corrosion;

5. Sealing rateIP66 (IP67 Optional)

6. Temperature control: whole system adopt with thermal balance design + wide temperature electronic and optoelectronic devices, with built-in heating and heat dissipation isothermal control elements, which can work in low and high temperature environment;

7. Interfaceaviation waterproof connector

PTZ

1. Duty: 50kg CNC PT

2. Rotation: pan: 0360°, tilt: -45°+45°

3. Rotation speed: Pan: 0.01°30°/S, tilt: 0.01°/S 15°/S, support lens focusing speed adaptive.

4. 255 presets, support lens zooming and focusing preset.

5. Accuracy: ±0.1°

6. Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising.

7. Keep Watching: Preset/Auto-Patrol/Auto-Scanning.

8. Power Off Memory: Support(Can restore the position before power off, patrol status, line-scanning status)

9. Null-point Correction: support north null-point remote correction function.

10. Power consumption: about 120W

11. Weight: 23kg.

Interface

1. Network interface: 1-channel RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485 communication control);

2. Network Protocol: TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181 and other network protocol.

3. Power supply: AC/DC24V, anti-reverse connection protection;

4. Physical interface: water-proof aviation connector

Enhancement

  1.             Strong Light Protection: Support anti sunburn function.
  2.             Temperature correction: no thermal imagery design, thermal imaging clarity is not affected by temperature.
  3.             Scenemode: support multi-configuration scenarios, adapt todifferent environment applications.
  4.             Day and night cruise: D/N group-cruising for different preset groups, day cruise 1-40 preset, night cruise 41-80 preset, according to the light-sensitive state automatically switch to day or night mode, adapt to different space-time scenarios.
  5.             Lens Servo: Support the functions of lens preset, focal length return and focal length location.
  6.             Azimuth Information: support angle query/real-time return and positioning, support azimuth video overlay real-time display.
  7.             Remote Maintenance: Support remote upgrade of embedded programs, convenient for after-sales maintenance.
  8.             Parameter Settings: OSD Menu Remote Call Operations.

Environment Parameter

1. Operating temperature: -25° ~+60°;

2. Storage temperature: -35°70°;

3. Humidity: <90%

4. Seismic resistance: 0.2g (in accordance with GB/T15211-2013’s 5.4 Harsh grade 2);

5. Impact resistance: 15g (in accordance with GB/T15211-2013’s 5.3 Harsh grade 3);

6. Lightning protection: interface circuit with built-in surge protection, 4000V power supply, 2000V signal;

7. Salt spray proof: continuous spray for 96 hours at pH 6.5 to 7.2, no change in surface.

8. Protection Level: IP66

Add-On Function

1. Wiper: (or build-in wiper);

2. Window Cleaner: (small external sprinkle, self-storage water, freezing with no harm, will not affect function of the host);

3. Extension module: (Beidou/GPS, laser rangefinder and other functions can be selected);

4. Optical network: (built-in fiber module, single mode fiber output, improve anti-jamming).

Intelligence Functions (Optional Add-On Function)

  1.       Auto-tracking system;
  2.       Anti-drone tracking system;
  3.       Panoramic stitching;
  4.       Radar linkage;
  5.       Hot-point alert;
  6.       Patrol detection;
  7.       3D zooming/positioning selection;
  8.       Analysis: Invasion, leaving, straggling, retention, lingering, target trajectory.

(The above functions need to be implemented in conjunction with general software and network modules)

Other Specifications

Total Consumption

180W

Weight

≤50kg (include PTZ)


Download the Specification in PDF Format

GeoSat Microwave Titaneous Intelligent Multi Spectrum Thermal Imaging Camera Specsheet
