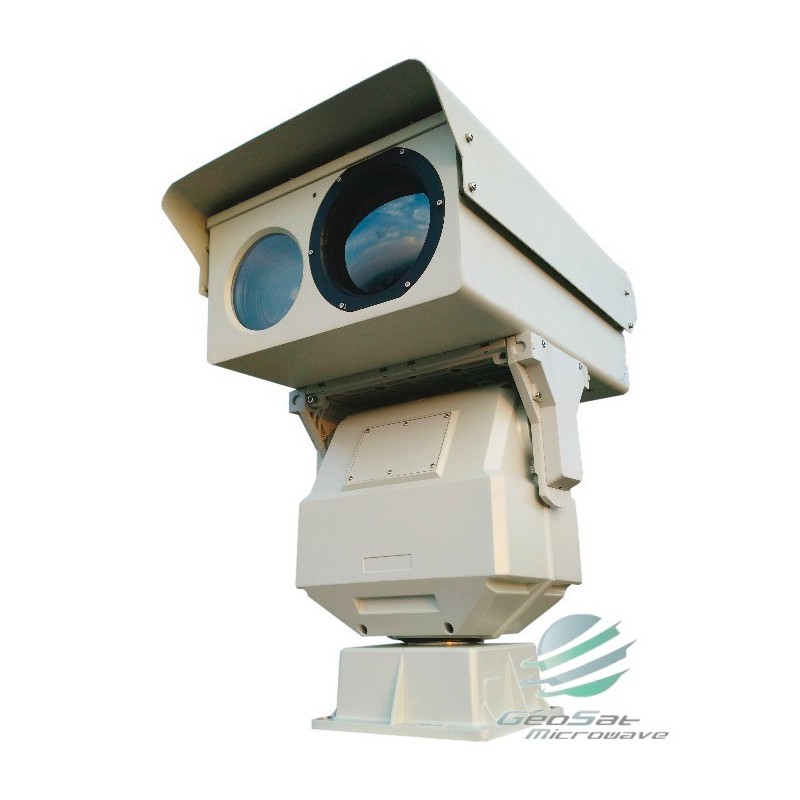

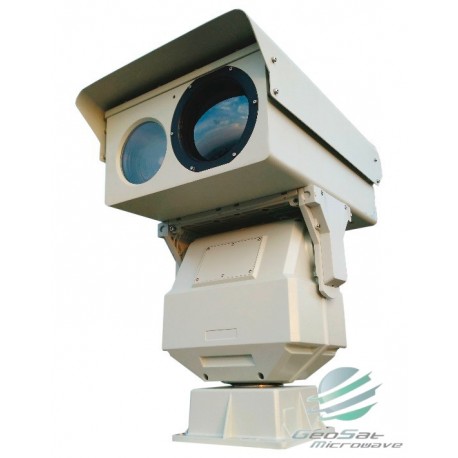

GeoSat Microwave Gaias Intelligent Dual Sensor Thermal Imaging Camera

Model

GSM1654G

GSM1656G

Detection

Vehicle:13000m

Human: 4800m

Fire-Point

6000m (@2 x 2m)

Identification

Vehicle: 3400m

Human: 1300m

Thermal Camera

Sensor

5th generation FPA VOx Detector

Resolution

384 × 288 pixel

640 × 512 pixel

Spectral range

7.5～14μm

NETD

50mK (@25℃ F1.0)

Focal length

31 - 155mm

Field of view(horizontal)

12.4° × 9.3° - 2.5° × 1.8°

20° × 15° - 4°× 3°

Lens Control

1. Zooming: Electrical Zoom.

2. Focusing: Manual/Auto Focus (3A adaptive active focusing algorithm, supports multiple trigger modes with high precision and speed).

3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, smaller axis.

Image Processing

1. Image enhancement: SDE digital image processing.

2. Pseudo colour polarity: 16 pseudo color and B/W, B/W conversion.

3. Image parameter: AGC automatic gain control, brightness and contrast.

4. Digital zoom: 2X, 4X digital amplification.

5. NUC Correction: Auto/Manual correction, background correction.

Thermal Point Detection & Alert

1. Alarm threshold: 255 level can be set.

2. Target size: target range can be set to identify targets of different sizes automatically.

3. Number of alert targets: 1-16 can be set, automatically select the most prominent target display.

4. Alarm mode: Video overlay alarm frame + switch volume (or data return) multiple alarm mode, intuitive and easy to read.

5. Front-end algorithm: Optimized fast front-end processing algorithm, based on the analysis of the original heat map data per frame, alarm response 0.1S, no delay, no information loss.

6. Remote Parameter Adjustment: All alarm parameters and instructions can be set remotely through the video OSD menu, with strong versatility.

7. Secondary development: providing free SDK, easy to use or convenient for secondary development.

8. Dedicated platform: (Select of dedicated fire prevention pre-warning platform, with automatic scanning, warning, GIS positioning, fire dynamic evolution, fire rescue strategy and other functions, to form a professional system)

Visible Camera

Camera

1. Surface: 1/1.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch;

2. Resolution: 5 million pixels, 1920 x 1080

3. Illumination: 0.001Lux high sensitive colour, 0.0001Lux black and white;

4. Encoding: H.265/H.264 video format, supporting multi-stream;

5. Video Bit Rate: 32Kbps-16Mbps, 60Hz 30 frames/second

6. Support SD card local storage, support regional invasion, cross-border invasion, face detection, audio anomaly detection, alarm linkage;

7. Supports AFR fog penetration, electronic anti-shake, strong light suppression, 3D digital noise reduction, anti-infrared overexposure, ABF automatic rear focus adjustment function

Lens

1. Focal Length: 22 - 750mm, 200 mil electrical focus;

2. HD infrared correction: Optical IR correction design, diurnal focus;

3. Auto aperture: support;

4. Night-day wide spectrum: 0.4-0.75um visible broad spectrum window and 0.8-0.95um NIR narrow spectrum window with day-night independent double-pass window to improve the signal-to-noise ratio of imaging light and stray light.

5. Preset position: precision potentiometer, DC5V, zoom focusing feedback.

Laser Illumination (Optional)

1. Power: 15W.

2. Wavelength: 810nm Military graded infrared laser.

3. Illumination Angle: 0.7° ~20°, DSS Digital Step Illumination Angle Control Technology.

4. Homogenization: GHT-II HD lens group super homogenization patented technology, full focus spot brightness equilibrium > 92%.

5. Laser Safety: ZQB safety laser beam processing patented technology, in line with the international IEC60825 safety standard.

Housing

1. Material：aluminum alloy housing，waterproof;

2. Structure：Integral Dual windows design;

3. 4mm microcrytalline infrared high-effective anti-reflection HLIN optical glass, transmittance >98%;

4. Surface：PTA coating, anti sea water corrosion;

5. Sealing rate：IP66 (IP67 Optional)

6. Temperature control: whole system adopt with thermal balance design + wide temperature electronic and optoelectronic devices, with built-in heating and heat dissipation isothermal control elements, which can work in low and high temperature environment;

7. Interface：aviation waterproof connector

PTZ

1. Duty: 50kg CNC PT

2. Rotation: pan: 0～360°, tilt: -45°～+45°

3. Rotation speed: Pan: 0.01°～30°/S, tilt: 0.01°/S ～15°/S, support lens focusing speed adaptive.

4. 255 presets, support lens zooming and focusing preset.

5. Accuracy: ±0.1°

6. Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising.

7. Keep Watching: Preset/Auto-Patrol/Auto-Scanning.

8. Power Off Memory: Support(Can restore the position before power off, patrol status, line-scanning status)

9. Null-point Correction: support north null-point remote correction function.

10. Power consumption: about 120W

11. Weight: 23kg.

Interface

1. Network interface: 1-channel RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485 communication control);

2. Network Protocol: TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181 and other network protocol.

3. Power supply: AC/DC24V, anti-reverse connection protection;

4. Physical interface: water-proof aviation connector

Enhancement

1.             Strong Light Protection: Support anti sunburn function.
2.             Temperature correction: no thermal imagery design, thermal imaging clarity is not affected by temperature.
3.             Scene mode: support multi-configuration scenarios, adapt to different environment applications.
4.             Day and night cruise: D/N group-cruising for different preset groups, day cruise 1-40 preset, night cruise 41-80 preset, according to the light-sensitive state automatically switch to day or night mode, adapt to different space-time scenarios.
5.             Lens Servo: Support the functions of lens preset, focal length return and focal length location.
6.             Azimuth Information: support angle query/real-time return and positioning, support azimuth video overlay real-time display.
7.             Remote Maintenance: Support remote upgrade of embedded programs, convenient for after-sales maintenance.
8.             Parameter Settings: OSD Menu Remote Call Operations.

Environment Parameter

1. Operating temperature: -25° ~+60°;

2. Storage temperature: -35°～70°;

3. Humidity: <90%

4. Seismic resistance: 0.2g (in accordance with GB/T15211-2013’s 5.4 Harsh grade 2);

5. Impact resistance: 15g (in accordance with GB/T15211-2013’s 5.3 Harsh grade 3);

6. Lightning protection: interface circuit with built-in surge protection, 4000V power supply, 2000V signal;

7. Salt spray proof: continuous spray for 96 hours at pH 6.5 to 7.2, no change in surface.

8. Protection Level: IP66

Add-On Function

1. Wiper: (or build-in wiper);

2. Window Cleaner: (small external sprinkle, self-storage water, freezing with no harm, will not affect function of the host);

3. Extension module: (Beidou/GPS, laser rangefinder and other functions can be selected);

4. Optical network: (built-in fiber module, single mode fiber output, improve anti-jamming).

Intelligence Functions (Optional Add-On)

1.       Auto-tracking system;
2.       Anti-drone tracking system;
3.       Panoramic stitching;
4.       Radar linkage;
5.       Hot-point alert;
6.       Patrol detection;
7.       3D zooming/positioning selection;
8.       Analysis: Invasion, leaving, straggling, retention, lingering, target trajectory.

(The above functions need to be implemented in conjunction with general software and network modules)

Other Specifications

Total Consumption

180W

Weight

≤45kg (include PTZ)

GeoSat Microwave Gaias Intelligent Dual Sensor Thermal Imaging Camera Specsheet
