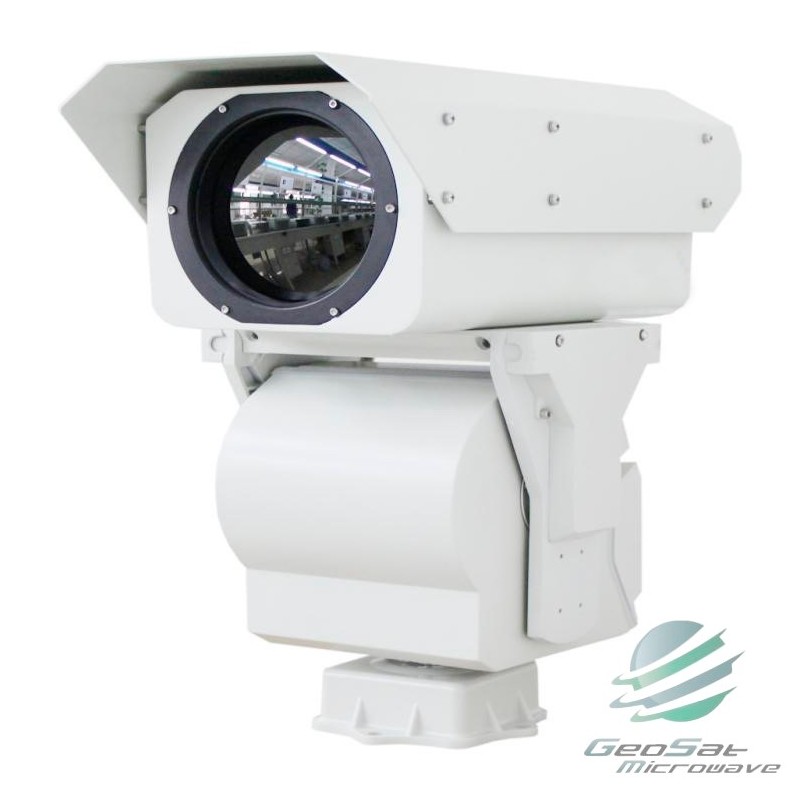

GeoSat Microwave Hadeous Long Range Zoom Thermal Imaging Camera

Model

GSM1654H

GSM1656H

General Specification

Detection

Vehicle:13000m

Human:4800m

Identification

Vehicle:3400m

Human:1300m

Sensor

5th generation uncooled focal plane array VOx Detector

Resolution

384 × 288 pixel

640 × 512 pixel

Spectral range

7.5～14μm

NETD

50mK (@25℃ F1.0)

Focal length

31 - 155mm, 0.56 - 0.11mrad

Field of view(horizontal)

12.4° × 9.3° - 2.5° × 1.8°

20°×15° - 4°× 3°

Len Control

1. Zooming: Electrical Zoom.

2. Focusing: Manual/Auto Focus (3A adaptive active focusing algorithm, supports multiple trigger modes with high precision and speed).

3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, smaller axis.

Image processing

1. Image enhancement: SDE digital image processing.

2. Pseudo colour polarity: 16 pseudo color and B/W, B/W conversion.

3. Image parameter: AGC automatic gain control, brightness and contrast.

4. Digital zoom: 2X, 4X digital amplification.

5. NUC Correction: Auto/Manual correction, background correction.

6. Hot-points analysis: support multiple hot-points box show alarm function.

Enhancement

1. Strong Light Protection: Support anti sunburn function.
2. Temperature correction: no thermal imagery design, thermal imaging clarity is not affected by temperature.
3. Scene mode: support multi-configuration scenarios, adapt to different environment applications.
4. Lens Servo: Support the functions of lens preset, focal length return and focal length location.
5. Azimuth Information: support angle query/real-time return and positioning, support azimuth video overlay real-time display.
6. Remote Maintenance: Support remote upgrade of embedded programs, convenient for after-sales maintenance.
7. Parameter Settings: OSD Menu Remote Call Operations.

Intelligence Function (Optional)

1. Auto-tracking system;
2. Anti-drone tracking system;
3. Panoramic stitching;
4. Radar linkage;
5. Hot-point alert;
6. Patrol detection;
7. 3D zooming/positioning selection;
8. Analysis: Invasion, leaving, straggling, retention, lingering, target trajectory.

(The above functions need to be implemented in conjunction with general software and network modules)

Interface

1. RS-485（PELCO D protocol, Baud rate 2400bps）、RS-232（optional）;

2. Remote OSD setting;

3. PAL/NTSC video output;

4. AC24V/DC12V;

5. Waterproof aviation connector

Environment Parameter

1. One integral aluminum alloy housing;

2. Operating temperature: -25 ~55 (-40 Optional);

3. Storage temperature: -35°～70°;

4. Humidity: <90%

5. Seismic resistance: 0.2g (in accordance with GB/T15211-2013’s 5.4 Harsh grade 2);

6. Impact resistance: 15g (in accordance with GB/T15211-2013’s 5.3 Harsh grade 3);

7. Lightning protection: interface circuit with built-in surge protection, 4000V power supply, 2000V signal;

8. Salt spray proof: continuous spray for 48 hours at pH 6.5 to 7.2, no change in surface.

9. Protection Level: IP66

PTZ (Optional)

1. Load: 30kg (optional 50kg)

2. Rotation: pan: 0～360°, tilt: -45°～+45°

3. Rotation speed: Pan: 0.01°～30°/S, tilt: 0.01°/S ～15°/S

4. 200 presets

5. Accuracy: ±0.1°

6. Cruise line: Support multiple cruise-line scanning.

7. Keep Watching: Preset/Auto-Patrol/Auto-Scanning.

8. Power Off Memory: Support(Can restore the position before power off, patrol status, line-scanning status).

9. Azimuth information: support angle query, real time return, positioning; support azimuth video overlay real time display.

10. Null-point Correction: support north null-point remote correction function.

11. Power consumption: about 100W

Housing

1. Material：aluminum alloy housing, waterproof, to avoid mold and moisture;

2. Structure：Integral single window design;

3. Surface：PTA coating, anti sea water corrosion;

4. Sealing rate：IP66 (IP67 Optional)

5. Built-in temperature controller，thermal balance design;

6. Interface：aviation waterproof connector

Network Module (Optional)

1. IP Connection：RJ45,10/100 Base-T Adaptor (Integrated Video Output and RS485 Control)
2. Network Protocol: Support TCP/IP, UDP, IPv4/v; Support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; Support PSIA、ONVIF, etc.. (optional)
3. Encoding: H.264,Mpeg-4,Mpeg-2,MJPEG
4. Resolution: D1/4CIF/2CIF/CIF/QCIF
5. Frame rate: 25PAL/30NTSC Frame@D1
6. Local storage: support one 32G microSD card
7. Power consumption: about 6W

GeoSat Microwave Hadeous Long Range Zoom Thermal Imaging Camera Specsheet
