GeoSat Microwave Long Range HD Infrared Laser Imaging Camera View larger

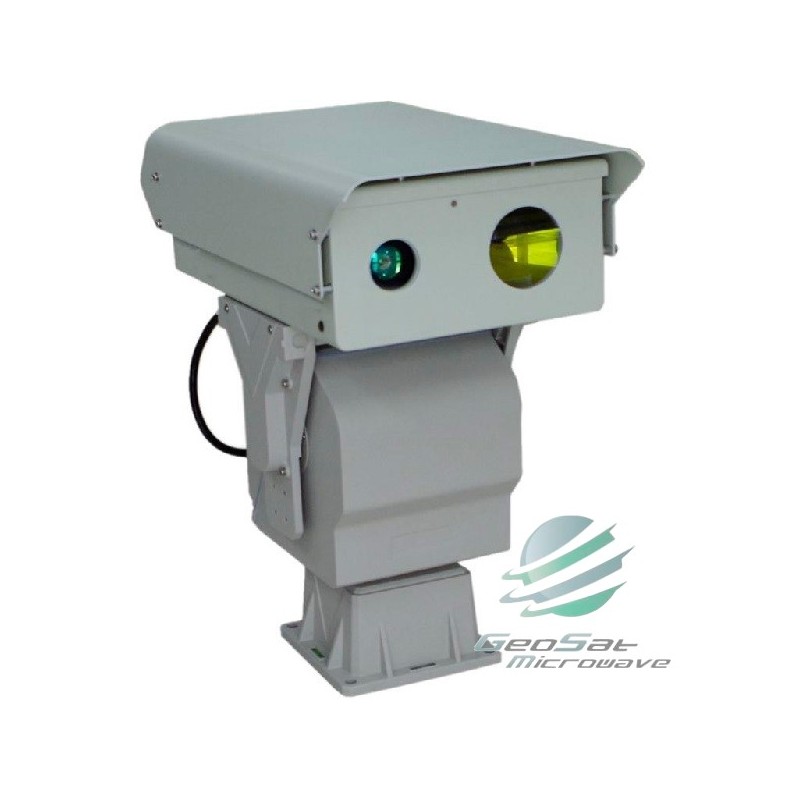

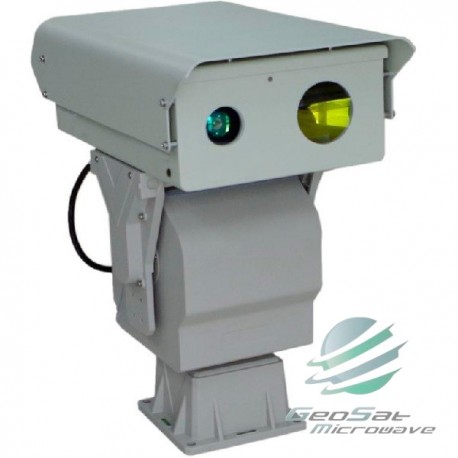

GeoSat Microwave Long Range HD Infrared Laser Imaging Camera

GSM3202M

New

  • Navigation;
  • Fishery and aquaculture monitoring;
  • Seaport & airport security and safety monitoring;
  • Lake, river & water system monitoring;
  • Mariculture monitoring
  • Oilfield security;
  • Forest fire prevention;
  • City Security and Safety Monitoring & Surveillance

More details

Specifications:

Model

GSM3202M

Detection

Day: 2 km;

Night: 1 km

Laser

Laser Light Source

1. Consumption: 10W;

2. Wavelength: 810nm;

3. Laser angle: 1°~20°;

4. Encapsulation: the illuminator is sealed with inert gas to prevent oxidation;

5. Using distributed laser design, laser emitter and high-temperature components are directly affixed to the shell’s cooling fins, that have stronger heat dissipation capability if compared with the modular laser.

Laser Len

1. Lens form: 25X f0.8 - 20mm ultra-short focal zoom patented technology, laser 400 micron cross-section imaging lens;

2. Transmittance: multi-layer NIR Anti-reflective coating, high efficiency laser coupling;

3. Homogenization: GHT-II super homogenization HD illumination patented technology, full focus spot brightness equilibrium is > 92%;

4. Laser Safety: Using ZQB safety laser beam processing patented technology, which complying with International IEC60825 Safety Standard;

5.  Focus Angle Positioning: Precision digital drive positioning.

Spot form: (Optional: elliptical spot illuminator - the spot always keeps elliptic in the process of change, better matching with 16:9 HD camera picture, where the laser utilization rate increased by 30%)

Angle and distance matching

1. Matching method: Automatic tracking or manually fine-tuning intelligent matching method;

2. Synchronization control: DSS digital stepping illumination angle control technology, 0.1 degree precise servo control;

3. Response time: Z-super laser angle and imaging ratio matching algorithm, tracking response time less than 500 ms;

4. Synchronization effect: Laser synchronization effect adjusts the modes of cut-in, cut-out and full-screen coverage, which can be set arbitrarily according to the scene remotely.

5. Optical axis alignment: SLM double optical axis self-locking alignment device, the accuracy can reach 0.01 degrees, reserve external alignment window, without cover removal maintenance

Laser Switch

1. Control mode: Mandatory opening, mandatory closing and photosensitive automatic control, can be set remotely.

2. Photosensitive synchronous control: independent photosensitive control circuit, precise synchronous switching of laser switch and camera into day-night mode.

3. Data Processing: Built-in Intelligent Anti-Strong Light Jamming Algorithms, Shielding the False Switches Caused by Strong Light at Night

Visible Camera

Video camera:

ü  Sensor type: 1 / 2.8 "progressive scan CMOS

ü  Scanning system: Progressive scanning

ü  Signal system: PAL / NSTC

ü  Video output: Network coding output

ü  Resolution:

50Hz: 25FPS (1920x1080); 60Hz: 30fps (1920x1080)

50HZ:25fps(1280x720) 60HZ:30fps(1280x720)

ü  Minimum illumination color: 0.05Lux @ (f1.6, AGC on)

ü  Black and white: 0.01LUX @ (f1.6, AGC on)

ü  SNR: >52dB



Camera lens:

ü  Focal length: 8 ~ 320mm, 40X optical zoom

ü  Aperture value: F1.6-6.1

ü  Horizontal field of view angle: 35.5o ~ 2.0o (wide angle telescope)

ü  Close range: 10 mm ~1500 mm (wide angle - far sight)

ü  Zoom speed: About 5.3 seconds (optical, wide-angle telescope)

ü  Day night conversion mode: ICR filter



Parameter setting:

ü  Focus mode: Auto / manual / primary focus

ü  Exposure mode: Auto exposure / aperture priority / shutter priority / manual exposure

ü  Day and night mode: Auto / color / black and white

ü  Electronic shutter: 1/1s to 1/30000s

ü  White Balance: Auto 1 / Auto 2 / indoor / outdoor / manual / sodium lamp / fluorescent lamp

ü  Backlight compensation: Off / On

ü  Exposure compensation: Level 10 adjustable

ü  Gain: 16 level adjustable

ü  Bad point compensation: Support

ü  Wide dynamic: Close / Open, adjustable in 15 levels

ü  Digital noise reduction: 3D

ü  Lens initialization: Built-in

ü  Image quality adjustment: Brightness, contrast, sharpness and saturation can be adjusted

ü  Digital zoom: 12

ü  Fog Penetration: Support

ü  Watch: Support

ü  Power down memory: Support

ü  Pattern scanning: Support



Network function:

ü  Video compression H.265/H.264

ü  The storage function: Supports micro SD storage

ü  Image setting movement function: Can be adjusted through client or IE browser

ü  Intelligent alarm: Mobile detection, occlusion alarm, memory full, memory error /, audio abnormality, face detection, cross boundary detection, area intrusion detection.

ü  Support protocols: TCP / IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP optional), GB28181, EHOME

ü  Interface protocols: ONVIF, PSIA, CGI, ISAPI, SDK

ü  Double code stream: 960P + D1

ü  Heartbeat function: Support

ü  Security: Mechanism password protection, multi-user access control

ü  External interface: 36pin FFC (including network interface, RS485, RS232, CVBS, SDHC, alarm in / out, line in / out, power supply)

ü  External communication: RS232 interface, RS485 interface, PELCO protocol

ü  Audio coding: G.722.1, G.711-A law, G.711-U law, MP2l2, G.726, AAC



General specifications:

ü  Power supply: DC12V ± 10%

ü  Operating temperature and humidity: -10oC ~ 60oC, less than 90% RH

ü  Power consumption: Static 2.5W, dynamic 4.5W

ü  Dimension: 147 × 56 × 60mm

ü  Weight: 495g



Fog  Penetration (Optional)

Optical filtering and AFR optoelectronic enhanced image processing technology, color penetrate fog

LPR (Optional)

Avoid strong light, license plate recognition

Housing

1. Material: Integral aluminum alloy housing, sealed and waterproof;

2. Structure: integration double window design;

3. Window glass: 4mm microcrystalline infrared high-efficiency transparent HLIN optical glass, transmittance > 98%;

4. Surface spraying: PTA three-resistance coating, anti corrosion (optional);

5. Temperature control: The whole system adopts thermal balance design + wide temperature electronic and optoelectronic devices, with built-in heating and heat dissipation components, which can work in low temperature and high temperature environment.

6. Weather proof: IP66, water-proof, dust-proof;

7. Connector:Aviation Water-Proof Connector.

PT

1. Load duty:30kg CNC Pan-Tilt;

2. Pan: 0 - 360° continuously,Tilt: -70°~+30°

3. Rotation speed:Pan: 0.01~60°/S,Tilt: 0.01~30°/S, support with lens focus speed adaptive function;

4. Preset: 255 preset, support lens zooming and focus preset;

5. Accuracy: ±0.1°;

6. Cruise Line-Scan: support 6 cruise line, 1 apple-skin scan, 1 line scan;

7. Watching: Pre-positioning/Automatic Cruise Route/Automatic Scanning Route

8. Power-off memory: support (restoring pre-power-off position, preset point status, cruise status, line-scanning status)

9. Azimuth Information: Support angle query, return and positioning;

10. Zero correction: support for north-to-zero remote correction function.

11. Power consumption: about 80W

12. Weight: 15kg

Enhancements (Optional)

1. Auto-focus tuning: support remote auto-focus precision parameter adjustment, adapt to different scenarios;

2. Day and night cruise: D/N cruise with different preset groups, day cruise 1-40 preset, night cruise 41-80 preset, according to the photosensitive status will automatically D/N switching, adapt to different space-time scenarios;

3. Temperature Compensation: TCS automatic rear focus compensation function, adapts to a wide range of high and low temperature changed environment, the rear focus remained clear always;

4. Remote Maintenance: Support the remote upgrade of embedded programs, convenient for after-sales maintenance;

5. Wipers: (Optional: built-in wipers);

6. Window cleaning: (Optional: external small sprinkler, self-storage water, freezing without damage, won’t affect the camera’s function);

7. Lens Servo: (Optional: Lens Focus Field of View Return/Location Function);

8. Extension module: (Optional: extended functions such as GPS, laser ranging, etc.);

9. Extended interface: (RS422/485 and analog video can be reserved, azimuth data can be returned for radar, GIS linkage positioning, or third-party intelligent analysis);

10. Optical network: (Optional: built-in fiber module, single mode fiber output, improve anti-jamming)

Intelligence Function (Optional)

  1.       Regional intrusion detection support;
  2.       Border-Crossing intrusion detection support;
  3.       Panoramic stitching;
  4.       Radar linkage;
  5.       Auto-tracking support;
  6.       Multi-scene group cruising support;
  7.       3D zooming/positioning selection;

(The above functions need to be implemented in conjunction with general software and network modules)

Other Specifications

Protocol

  1. Network interface: RJ45. 10/100 Base-T adaptive (integrated video output and RS485 control)
  2. Network protocol: TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181
  3. Support Onvif 2.0 a
  4. Pelco-P、Pelco-D  baud rate 2400、4800、9600、19200(optional)
  5. Power supply: AC/DC24V, Anti-reverse connection protection
  6. Interface:aviation waterproof connector.

Environmental

index

1. Working temperature: - 25 ~+60 (- 40 Optional);

2. Storage Temperature: -45 ~+70;

3. Humidity: <90%;

4. Seismic resistance: 0.2g (in accordance with GB/T15211-2013 5.4 harsh grade 2);

5. Impact resistance: 15g (in accordance with GB/T15211-2013 5.3 harsh grade 3);

6. Lightning protection: built-in surge protection interface circuit, 4000V power supply, 2000V signal;

7. Salt spray prevention: continuous spray for 96 hours at pH 6.5 to 7.2, no change in surface.

8. Protection Level: IP66

Total Weight

≤25kg (PT included)

Total Consumption

120W
