Geosat Block Up-Converter X-Band (7.9-8.4 GHz) 20W (BUC) View larger

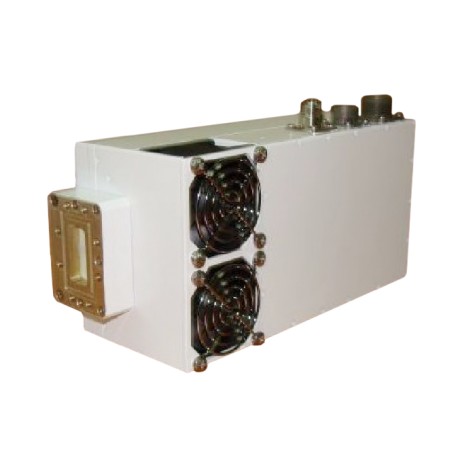

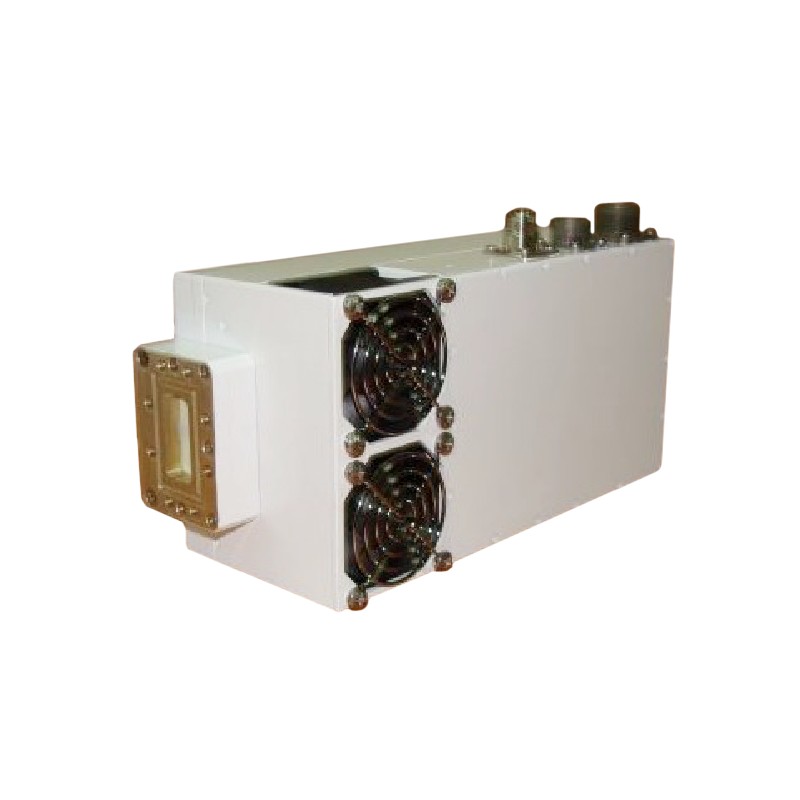

Geosat Block Up-Converter X-Band (7.9-8.4 GHz) 20W (BUC)

GBX20S3

New

  • Input Freq. - 7.9 – 8.4 GHz
  • Local Frequency - 6.95 GHz
  • Input waveguide flange - CPR137 (10-32)

More details

Specifications:

Parameter Specification
OUTPUT Frequency Range 7900 - 8400 MHz
INPUT Frequency Range 950 – 1450
LO Frequency 6950 MHz
RF Output Power @ P1dB 43 dBm
Small Signal Gain 65 dB
Gain flatness ± 2.0 dB
Spurious < -50 dB
Input level range without damage -50 - 0dBm
IF Input Interface 50 ohm – N/F type
RF Output Flange CPR137 (10-32)
Phase noise < -60 dBc/Hz at 100 Hz
< -75 dBc/Hz at 1 kHz
< -85 dBc/Hz at 10 kHz
< -95 dBc/Hz > at 100 kHz
External Reference 10 MHz sine wave
Ref Input Level -5 to +5 dBm @ 50 ohm
Shut off BUC in case of LO unlocked internal
AC Power supply AC 110V nom (90-120V) 50Hz
Power consumption 200W.
Operating Temperature -40 °C to 50 °C
Relative Humidity up to 100% (water proof design)
Dimensions 257 x 140 x 95 mm
Weight 4.5kg


Download the Specification in PDF Format

Block Up-Converter X-Band (7.9-8.4 GHz) 20W (BUC) Specsheet
