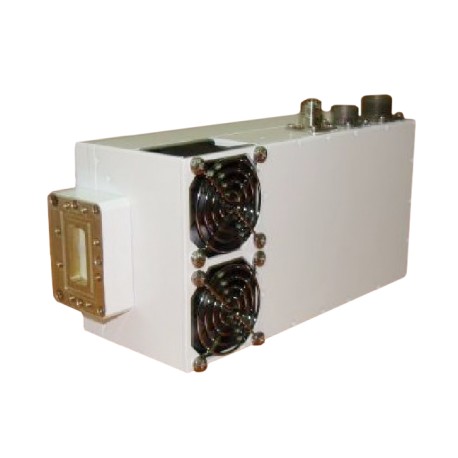

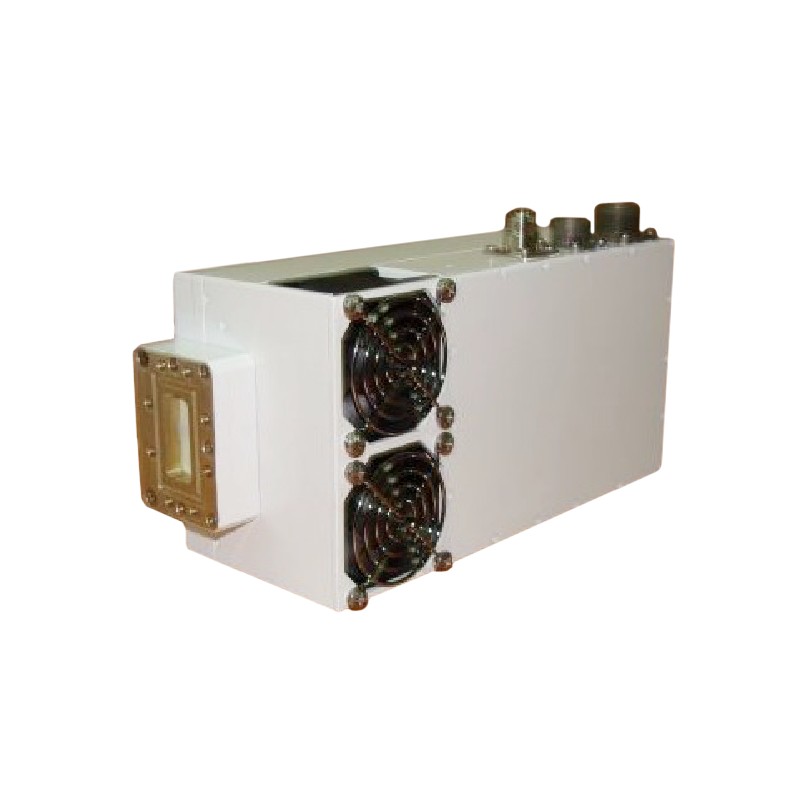

Geosat Block Up-Converter X-Band (7.9-8.4 GHz) 40W (BUC)
GBX40S3
New
- Input Freq. - 7.9 – 8.4 GHz
- Local Frequency - 6.95 GHz
- Input waveguide flange - CPR137 (10-32)
Specifications:
| Parameter | Specification | |
| OUTPUT Frequency Range | 7900 - 8400 MHz | |
| INPUT Frequency Range | 950 – 1450 | |
| LO Frequency | 6950 MHz | |
| RF Output Power @ P1dB | 46 dBm | |
| Small Signal Gain | 65 dB | |
| Gain flatness | ± 2.0 dB | |
| Spurious | < -50 dB | |
| Input level range without damage | -50 - 0dBm | |
| IF Input Interface | 75 ohm – N/F type | |
| RF Output Flange | CPR137 (10-32) | |
| Phase noise | < -60 dBc/Hz at 100 Hz | |
| < -75 dBc/Hz at 1 kHz | ||
| < -85 dBc/Hz at 10 kHz | ||
| < -95 dBc/Hz > at 100 kHz | ||
| External Reference | 10 MHz sine wave | |
| Ref Input Level | -5 to +5 dBm @ 50 ohm | |
| Shut off BUC in case of LO unlocked | internal | |
| AC Power supply | AC 220V nom (180-240V) 50Hz | |
| Power consumption | 200W. | |
| Operating Temperature | -40 °C to 50 °C | |
| Relative Humidity | up to 100% (water proof design) | |
| Dimensions | 257 x 140 x 95 mm | |
| Weight | 4.5kg | |
|
Download the Specification in PDF Format |
||
 |
Block Up-Converter X-Band (7.9-8.4 GHz) 40W (BUC) Specsheet |
|
|
|
||
