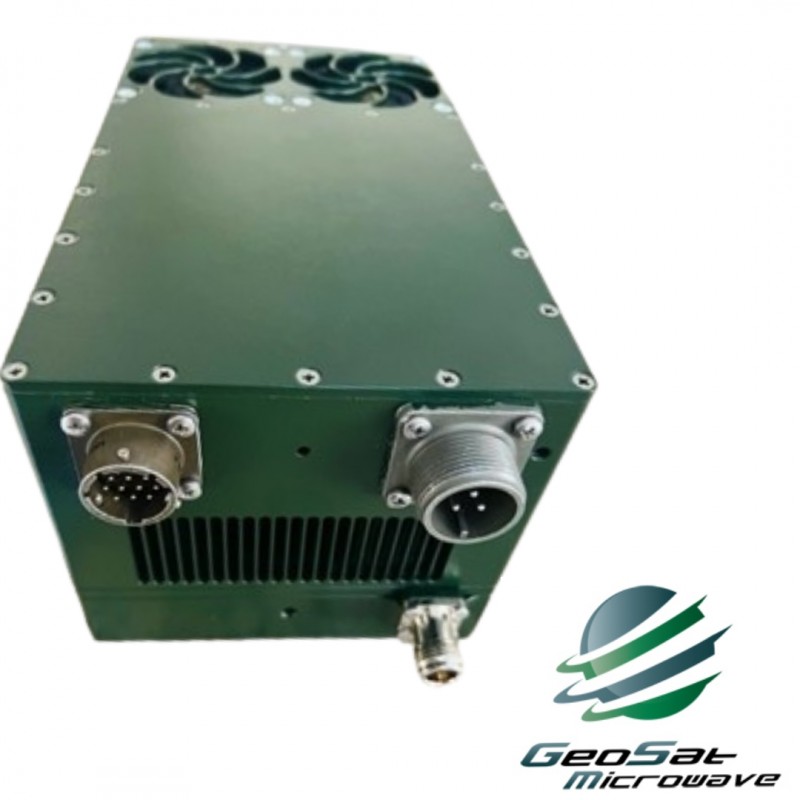

Geosat 50W Gan X-Band BUC (7.9-8.4 GHz)

OUTPUT Frequency Range

7900 - 8400 MHz

INPUT Frequency Range

950 - 1450 MHz

LO Frequency (M&C switching)

6950  MHz

RF Output  Power @ P1dB

47 dBm

RF Liner Power (IM3 -25 dBi)

44 dBm

Gain

65 dB

Gain flatness

± 2.0 dB

Spurious

< -50 dB

IF Input Interface

50 ohm – N type

RF Output Flange

CPR112

Phase Noise

< -60 dBc/Hz at 100 Hz,

< -75 dBc/Hz at 1 kHz

< -85 dBc/Hz at 10 kHz

< -95 dBc/Hz > at 100 kHz

External Reference

10 MHz sine wave

Ref Input Level

-5 to +5 dBm @ 50 ohm

Shut off BUC in case of LO unlocked

internal

AC Power supply

AC 110/220V 50/60Hz,  48VDC optional

Power consumption

300 W

Operating Temperature

-40 °C to 50 °C

Relative Humidity

up to 100% (water proof design)

Dimensions:

285 x 120 x 100 mm

Weight:

5.0kg
